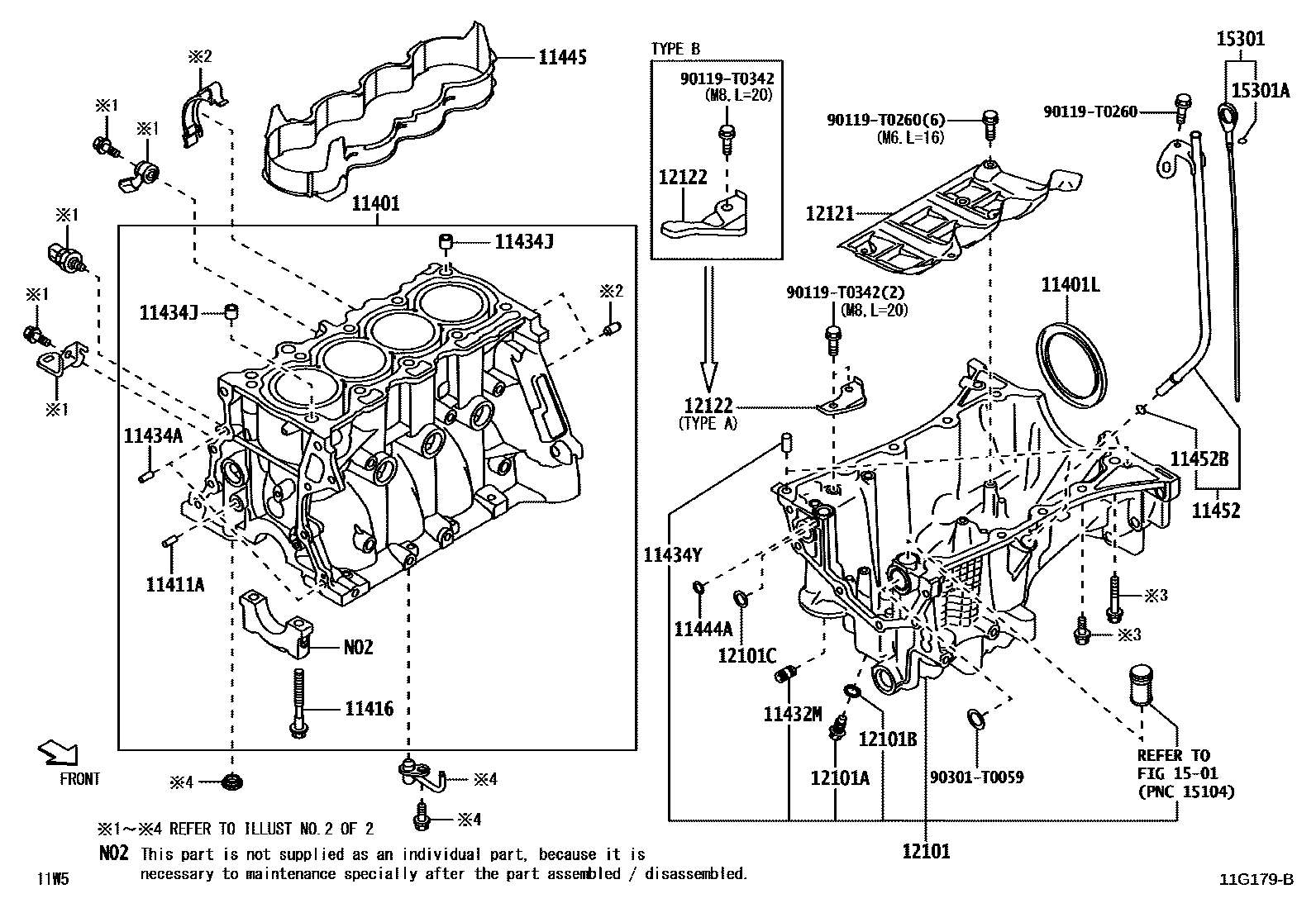

Toyota VELOZ — CYLINDER BLOCK

0001 1 0002 1

11401BLOCK SUB-ASSY, CYLINDER

main11410-B9050i2NRVE..W151202206

11401LSEAL, ENGINE REAR OIL

main90311-T0074i2NRVE..W151¥1,390202206

11411APIN, RING(FOR CYLINDER BLOCK NO.1 )

main90250-10030i2NRVE..W151¥160202206

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-T2013i2NRVE..W151202206

11432MUNION(FOR CYLINDER BLOCK)

main90404-T0005i2NRVE..W151202206

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097i2NRVE..W151¥50202206

L=12,OD=4.0

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-13017i2NRVE..W151¥140202206

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-08120i2NRVE..W151¥140202206

11444ARING, O

main90301-T0055i2NRVE..W151202206

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-0Y020i2NRVE..W151202206

11452GUIDE, OIL LEVEL GAGE

main11409-BZ150i2NRVE..W151202206

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main9004A-30058i2NRVE..W151202206

12101PAN SUB-ASSY, OIL

main12101-BZ140i2NRVE..W151202206

12101APLUG(FOR OIL PAN DRAIN)

main9004A-34015i2NRVE..W151¥190202206

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main9004A-43022i2NRVE..W151¥80202206

12101CRING, O(FOR OIL PAN)

main90301-T0057i2NRVE..W151202206

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-BZ090i2NRVE..W151202206

12122PLATE, OIL PAN BAFFLE, NO.2

main12122-BZ020i2NRVE..W151202206-202310

TYPE A

main12122-BZ040i2NRVE..W151202310

TYPE B

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-BZ150i2NRVE..W151202206

15301ARING, O(FOR OIL LEVEL GAGE)

main9004A-30048i2NRVE..W151¥130202206

90119T0260

main90119-T0260

90119T0342

main90119-T0342

90301T0059

main90301-T0059
