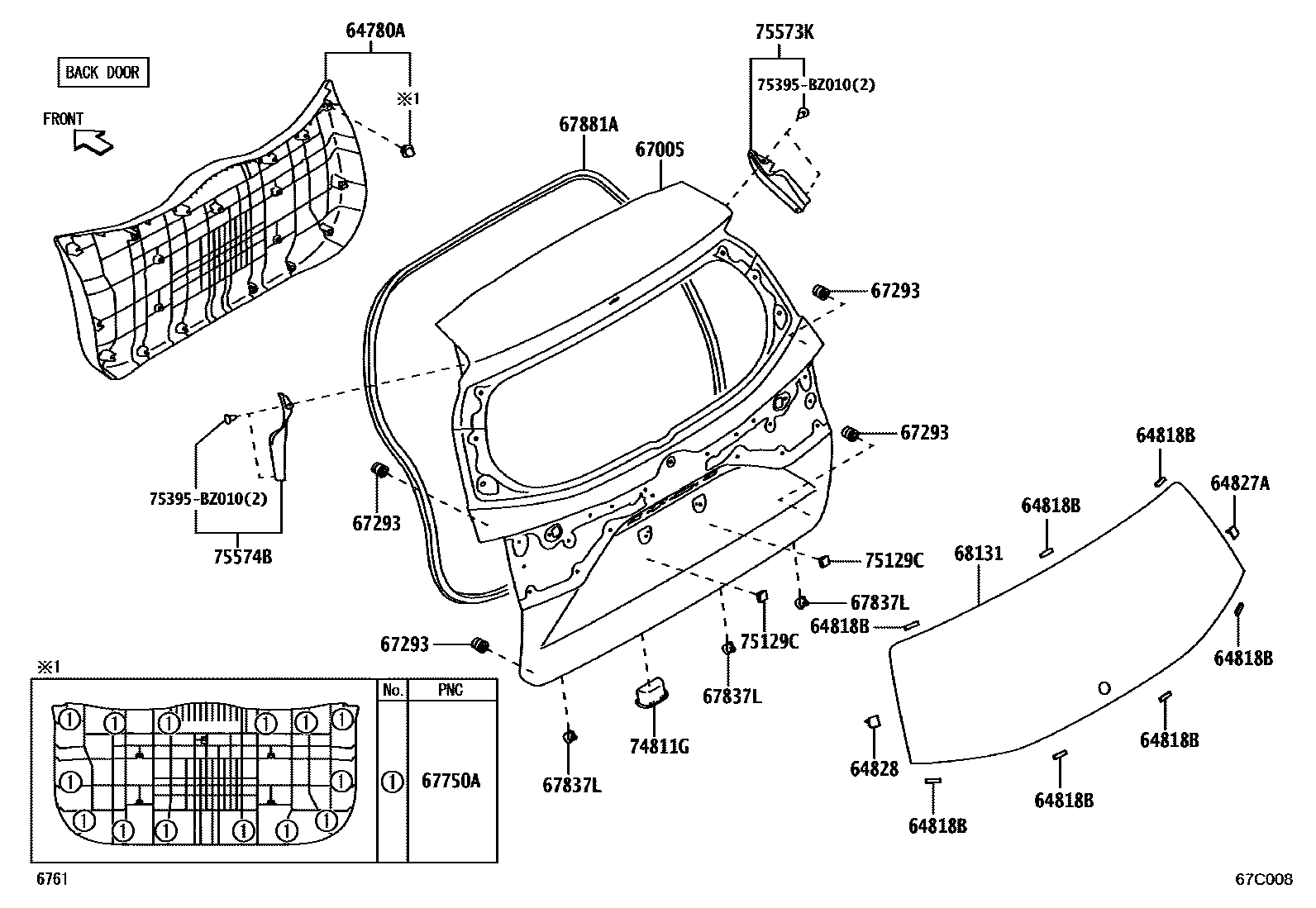

Toyota VELOZ — BACK DOOR PANEL & GLASS

0001 1BACK DOOR 0002 1BACK DOOR GARNISH

64780APANEL ASSY, BACK DOOR TRIM

main64780-BZ240-C0iW151202206

BLACK,TRIM2#

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-BZ070iW151202206

64827ACLIP, BACK WINDOW GLASS, RH

main64827-BZ130iW151202206

64828CLIP, BACK WINDOW GLASS, LH

main64828-BZ100iW151202206

67005PANEL SUB-ASSY, BACK DOOR

main67005-BZB80iW151202206

67293CUSHION, BACK DOOR LOWER STOPPER

main9004A-54016iW151¥170202206

67750ACLIP(FOR BACK DOOR TRIM)

main67771-BZ020iW151202206

67837LSEAL, DOOR DUST PROOF

main67837-BZ060iW151202206

67881AWEATHERSTRIP, BACK DOOR

main67881-BZ230iW151202206

68131GLASS, BACK DOOR

main68105-BZ430iW151202206

74811GHANDLE, DOOR PULL

main74811-BZ040iW151202206

75129CCUSHION, REAR LICENCE PLATE

main75129-BZ010iW151202206

sub75129-87502¥170

75573KMOULDING, BACK WINDOW, OUTSIDE RH

main75573-BZ050iW151202206

75574BMOULDING, BACK WINDOW, OUTSIDE LH

main75574-BZ020iW151202206

75395BZ010CLIP, BACK DOOR MOULDING, NO.1

main75395-BZ010

15 parts on this diagram · 2 diagrams in section
