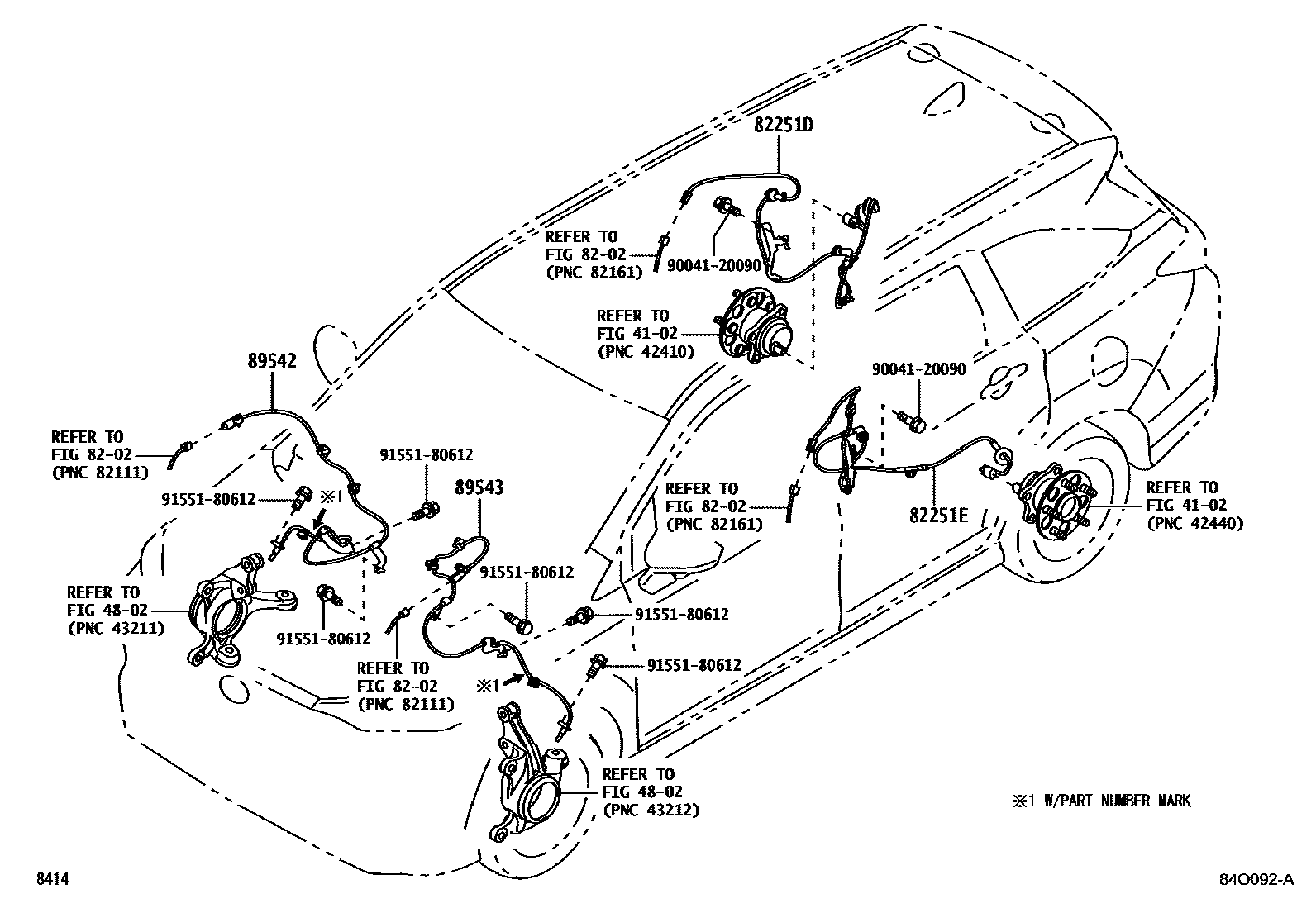

Toyota VELOZ — ABS & VSC

4102

4802

8202

82251DWIRE, SPEED SENSOR, RH

main82251-BZ210iW151202206

82251EWIRE, SPEED SENSOR, LH

main82251-BZ220iW151202206

89542SENSOR, SPEED, FRONT RH

main89542-BZ180iW151202206-202308

W/PART NUMBER MARK

main89542-BZ260iW151202308

W/PART NUMBER MARK

89543SENSOR, SPEED, FRONT LH

main89543-BZ180iW151202206-202308

W/PART NUMBER MARK

main89543-BZ260iW151202308

W/PART NUMBER MARK

9004120090

main90041-20090¥60

9155180612

main91551-80612¥60

9 parts on this diagram · 1 diagram in section
