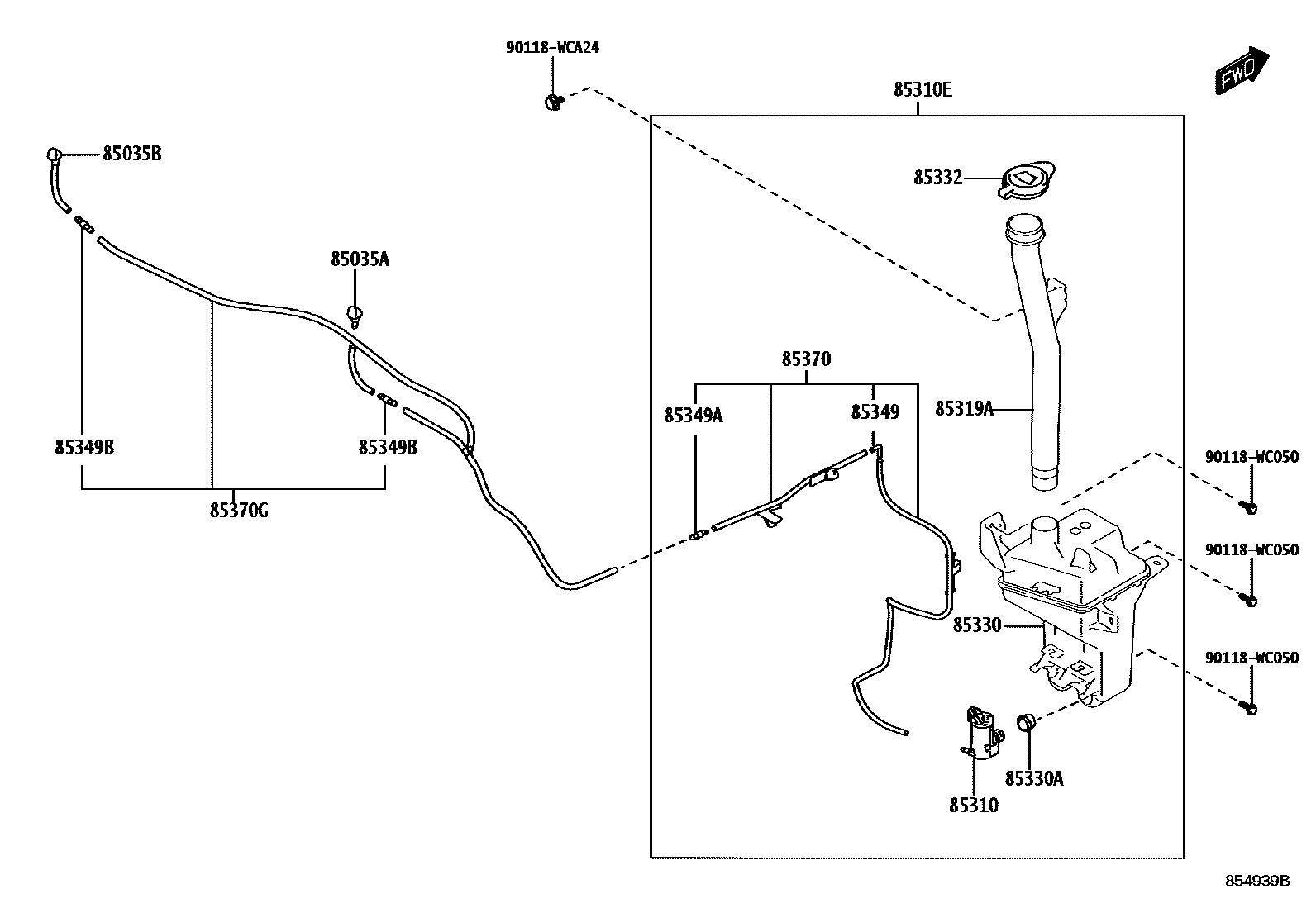

Toyota URBANCRUISER HYRYDER — WINDSHIELD WASHER

0001 1 0002 1

85035ANOZZLE, FR WASHER, RH

85035BNOZZLE, FRONT WASHER, LH

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-WC001

main85310-WC002

main85330-WC004

85310EJAR & PUMP ASSY, WASHER

85319AHOSE, INLET

85330JAR ASSY, WINDSHIELD WASHER

main85336-WC002

main85330-WC015

main85330-WC016

85330ABUSH, WINDSHIELD WASHER JAR

85332CAP, WINDSHIELD WASHER JAR

main85316-WC002

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85355-WC004

main85355-WC005

main90118-WCM88

85349AJOINT, WINDSHIELD WASHER HOSE, NO.2

85349BJOINT, WINDSHIELD WASHER HOSE, NO.3

85370HOSE ASSY, WINDSHIELD WASHER

main90118-WCK86

main90118-WCK87

85370GHOSE ASSY, WINDSHIELD WASHER, NO.2

90118WC050

main90118-WC050

90118WCA24

main90118-WCA24

15 parts on this diagram · 2 diagrams in section
