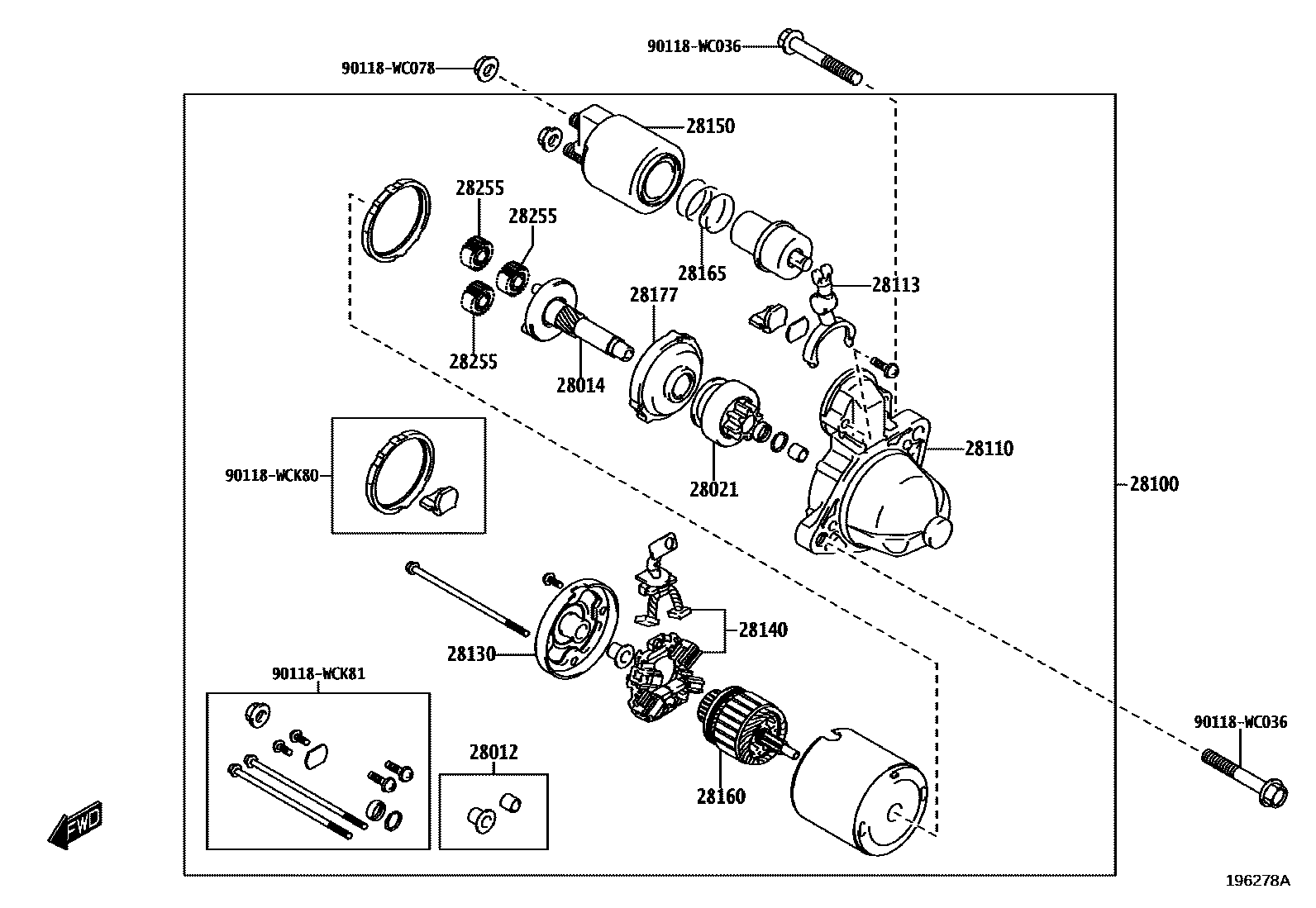

Toyota URBANCRUISER HYRYDER — STARTER

28012BEARING SUB-ASSY, CENTER

main90118-WCL54

28014SHAFT SUB-ASSY, PLANET CARRIER

main28014-WC001

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28011-WC007

28100STARTER ASSY

main28100-WC017

28110HOUSING ASSY, STARTER DRIVE

main28110-WC009

28113LEVER, STARTER PINION DRIVE

main28113-WC001

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-WC001

28140HOLDER ASSY, STARTER BRUSH

main28140-WC004

28150SWITCH ASSY, MAGNET STARTER

main28150-WC004

28160ARMATURE ASSY, STARTER

main28160-WC002

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-WC001

28177PLATE(FOR STARTER ARMATURE)

main28177-WC001

28255GEAR, PLANET

main28255-WC001

90118WC036

main90118-WC036

90118WC078

main90118-WC078

90118WCK80

main90118-WCK80

90118WCK81

main90118-WCK81

17 parts on this diagram · 1 diagram in section
