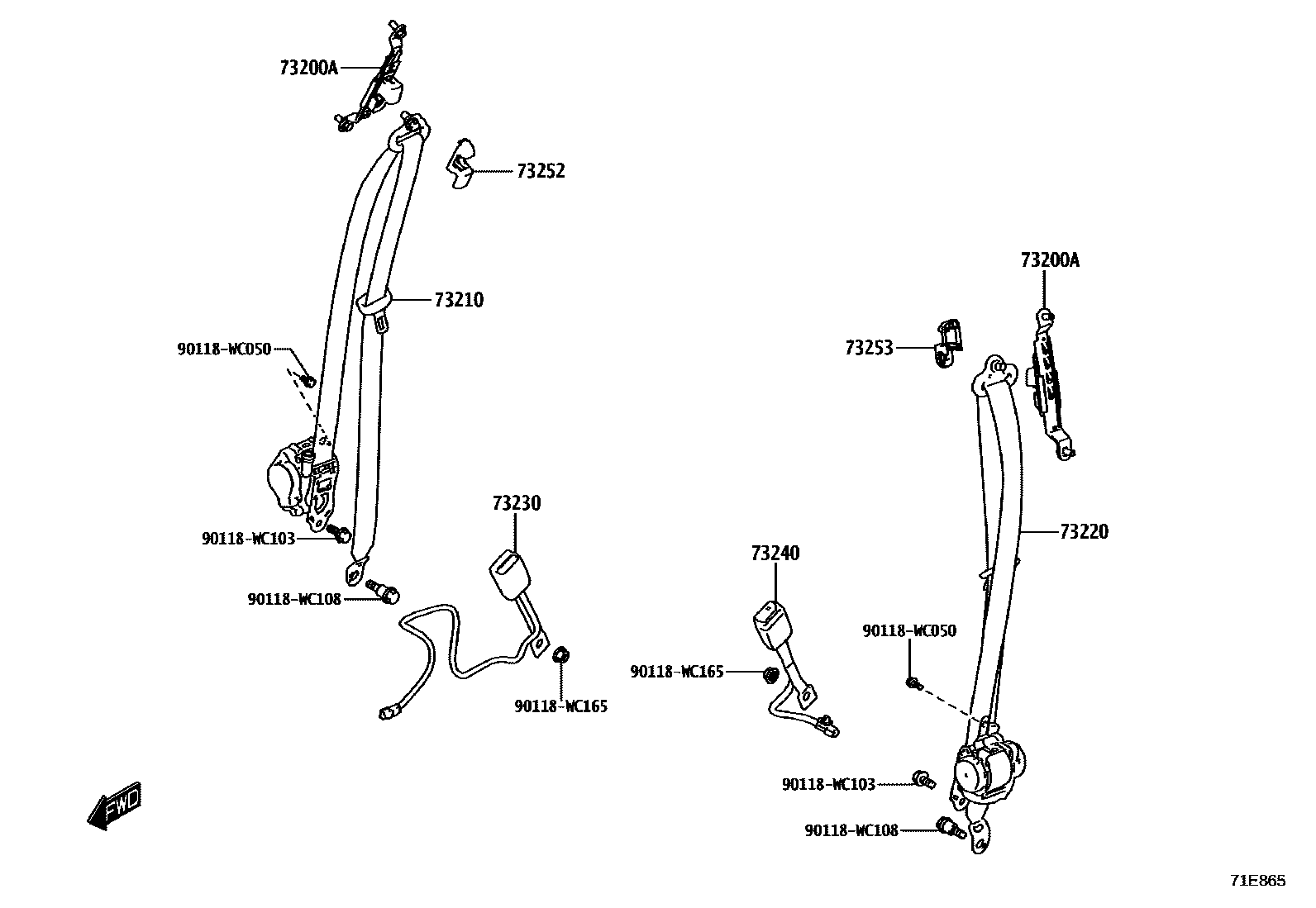

Toyota URBANCRUISER HYRYDER — SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT (2-POINT) 0003 1REAR SEAT (3-POINT) TYPE1 0005 1REAR SEAT (3-POINT) TYPE2 0007 1REAR SEAT (3-POINT) 0008 1REAR SEAT (3-POINT) 0009 1REAR SEAT (3-POINT) 0010 1REAR SEAT (3-POINT)

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-WC020

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-WC021

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-WC006

main73230-WC008

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-WC007

73252COVER, SHOULDER BELT ANCHOR ADJUST, RH

main73023-WC001

73253COVER, SHOULDER BELT ANCHOR ADJUST, LH

main73023-WC001

90118WC050

main90118-WC050

90118WC103

main90118-WC103

90118WC108

main90118-WC108

90118WC165

main90118-WC165

11 parts on this diagram · 8 diagrams in section
