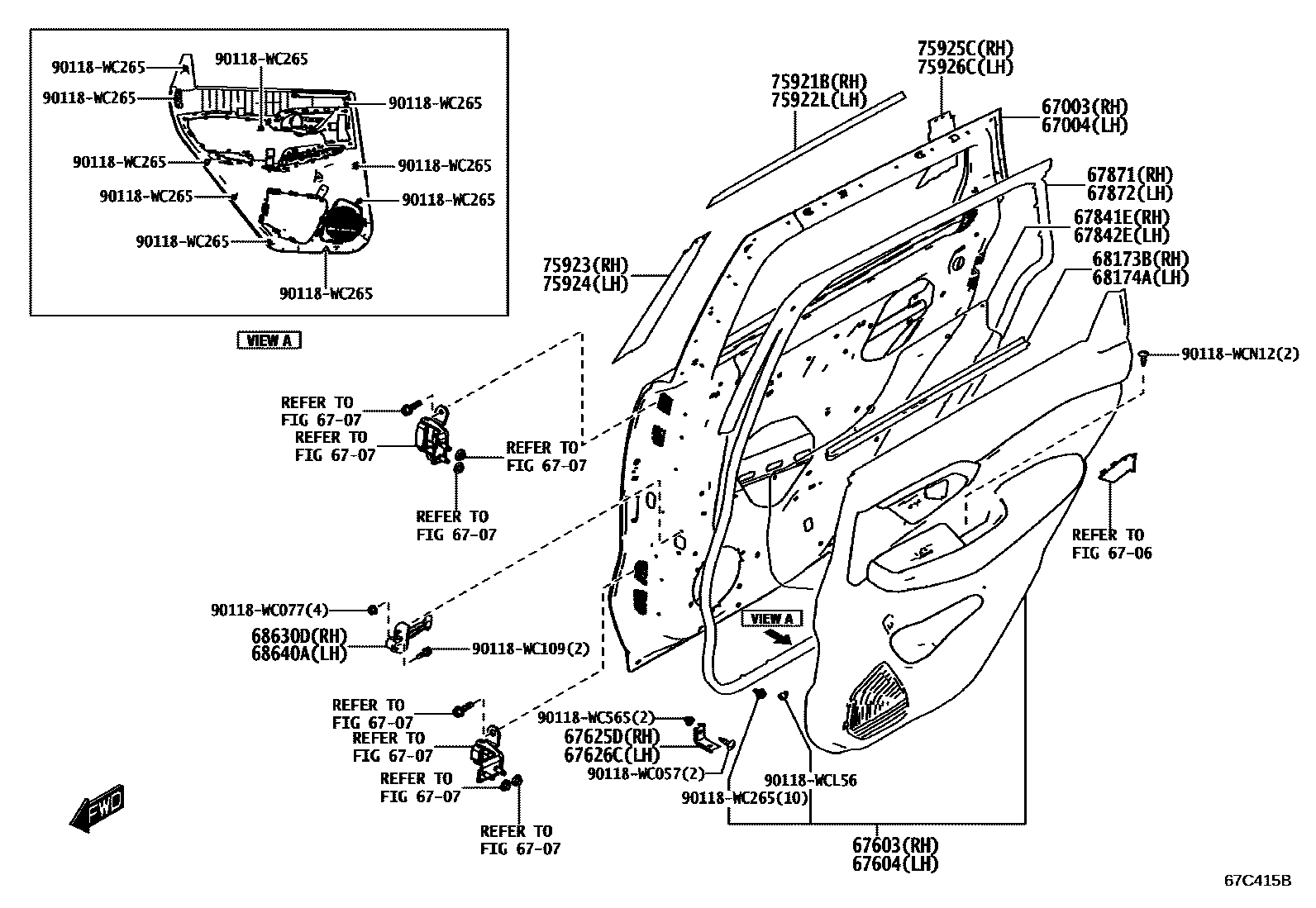

Toyota URBANCRUISER HYRYDER — REAR DOOR PANEL & GLASS

0001 1 0002 1 0004 1 0005 1 0006 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-WC009

main90118-WC601

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-WC009

6706

6707

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-WC015

main67630-WC016

main67630-WC017

main67630-WC018

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-WC015

main67640-WC016

main67640-WC017

main67640-WC018

67625DBRACKET, REAR DOOR TRIM

67626CBRACKET, REAR DOOR TRIM, NO.2

67841ECOVER, REAR DOOR SERVICE HOLE, RH

67842ECOVER, REAR DOOR SERVICE HOLE, LH

67871WEATHERSTRIP, REAR DOOR, RH

main67871-WC006

67872WEATHERSTRIP, REAR DOOR, LH

main67872-WC006

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

68630DCHECK ASSY, REAR DOOR, RH

68640ACHECK ASSY, REAR DOOR, LH

75921BTAPE, BLACK OUT, NO.1 RH

75922LTAPE, BLACK OUT, NO.1 LH

75923TAPE, BLACK OUT, NO.2 RH

main75977-WC003

75924TAPE, BLACK OUT, NO.2 LH

main75978-WC003

75925CTAPE, BLACK OUT, NO.3 RH

75926CTAPE, BLACK OUT, NO.3 LH

90118WC057

main90118-WC057

90118WC077

main90118-WC077

90118WC109

main90118-WC109

90118WC265

main90118-WC265

90118WC565

main90118-WC565

90118WCL56

main90118-WCL56

90118WCN12

main90118-WCN12

29 parts on this diagram · 5 diagrams in section
