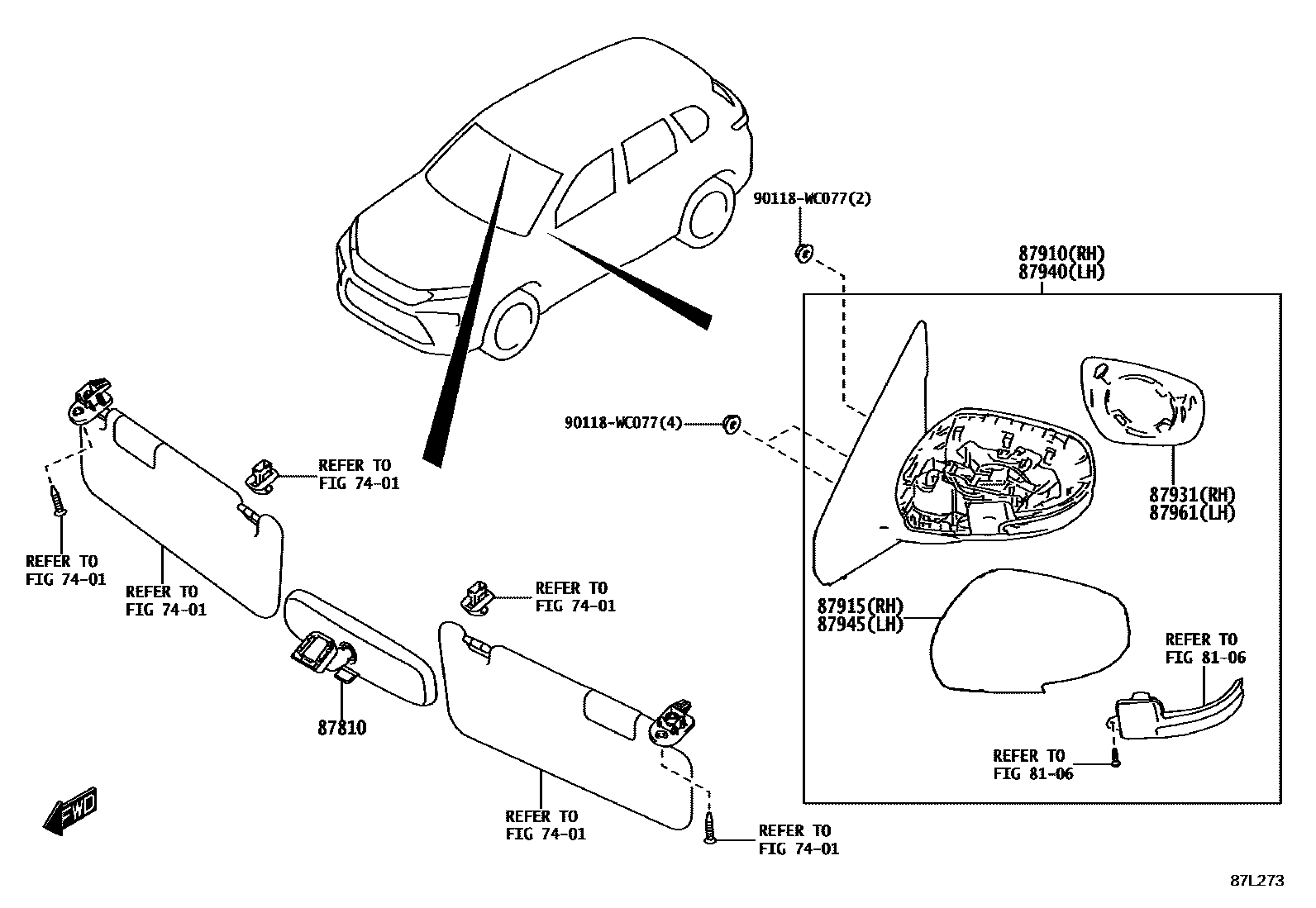

Toyota URBANCRUISER HYRYDER — MIRROR

0001 1 0002 1 0003 1

7401

8106

87810MIRROR ASSY, INNER REAR VIEW

main87810-WC001

main87810-WC008

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-WC134

main87910-WC315

87915COVER, OUTER MIRROR, RH

main87915-WC059

87931OUTER MIRROR, RH

main87931-WC008

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-WC134

main87940-WC315

87945COVER, OUTER MIRROR, LH

main87945-WC059

87961MIRROR OUTER, LH

main87961-WC008

90118WC077

main90118-WC077

10 parts on this diagram · 3 diagrams in section
