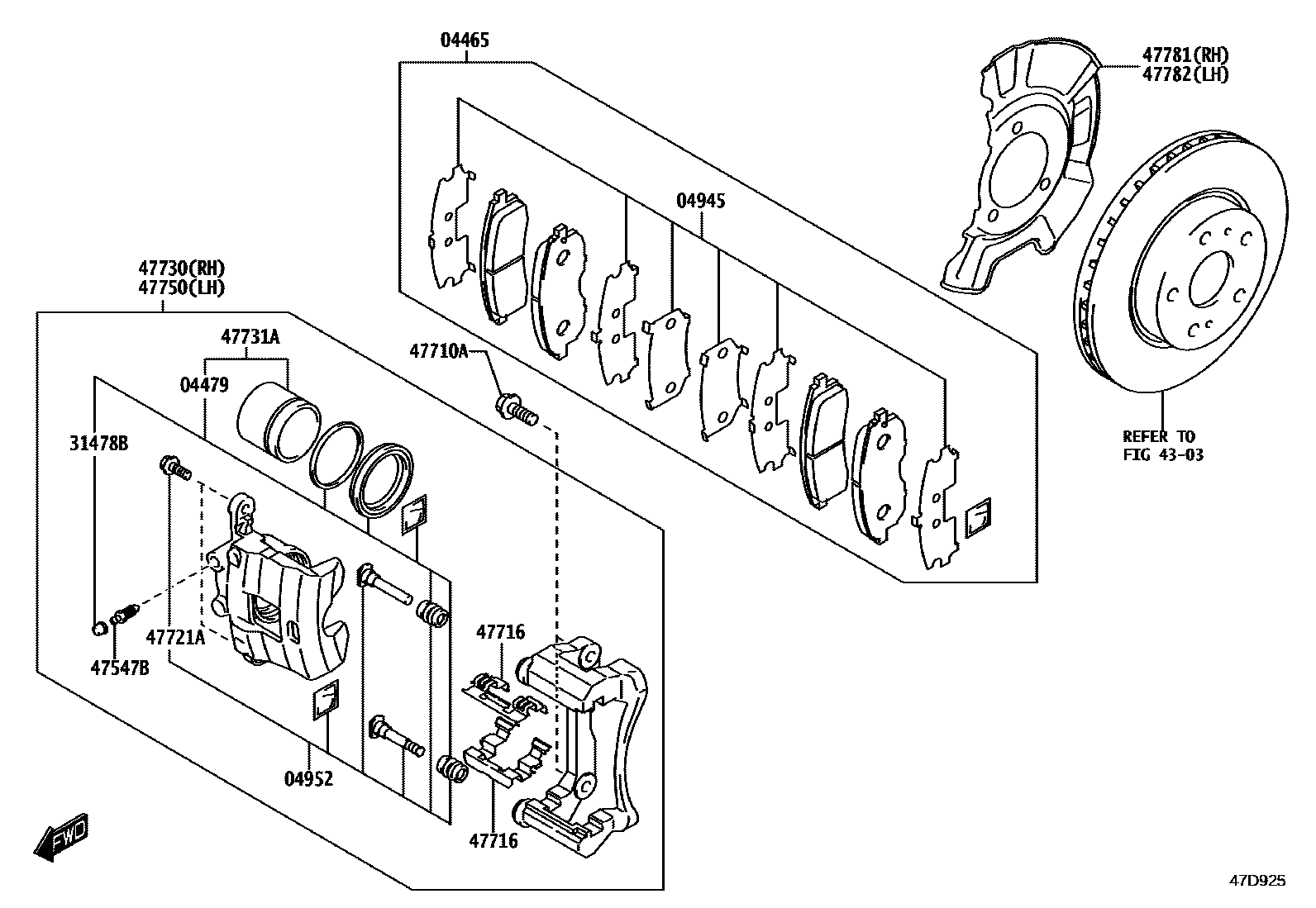

Toyota URBANCRUISER HYRYDER — FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-WC008

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-WC007

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-WC003

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04952-WC006

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47717-WC003

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-WC007

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-WC007

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-WC006

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-WC004

15 parts on this diagram · 1 diagram in section
