Toyota URBAN CRUISER — SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

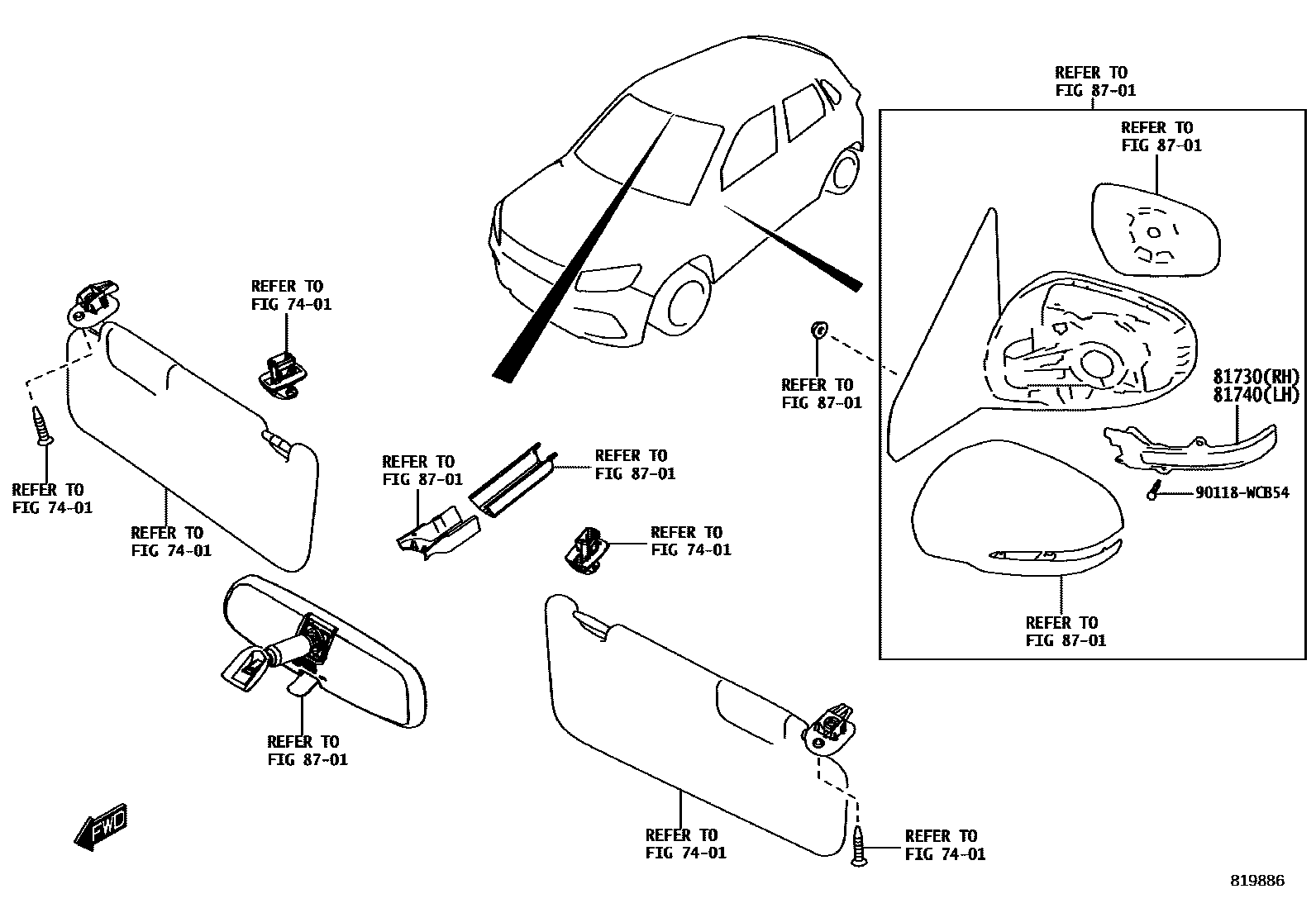

Parts diagram

7401

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-WC003

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81740-WC002

8701

90118WCB54

main90118-WCB54

5 parts on this diagram · 1 diagram in section
