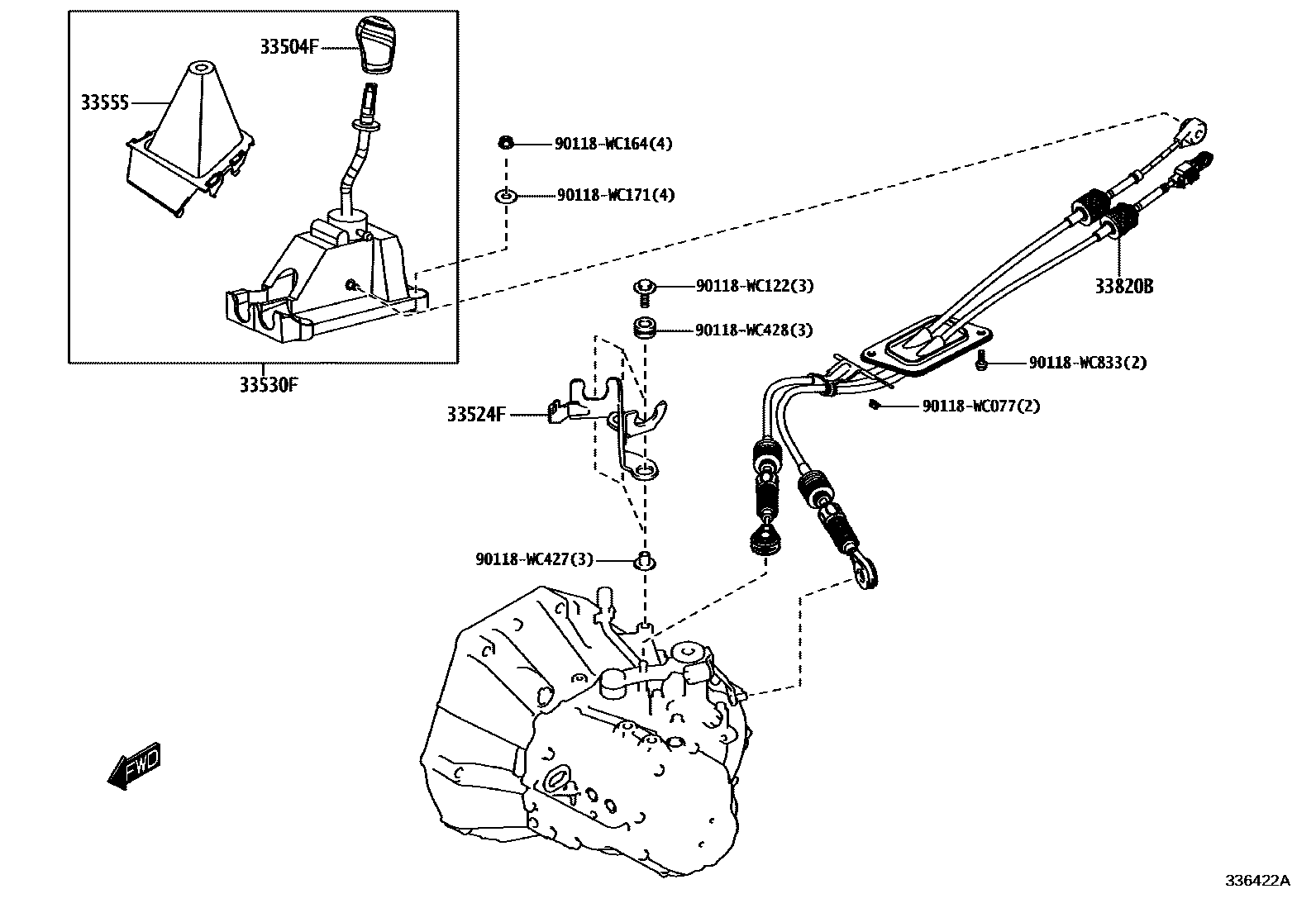

Toyota URBAN CRUISER — SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33504FKNOB SUB-ASSY, SHIFT LEVER

33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

33555BOOT, SHIFT LEVER

main58808-WC004

main58808-WC005

33820BCABLE ASSY, TRANSMISSION CONTROL

90118WC077

main90118-WC077

90118WC122

main90118-WC122

90118WC164

main90118-WC164

90118WC171

main90118-WC171

90118WC427

main90118-WC427

90118WC428

main90118-WC428

90118WC833

main90118-WC833

12 parts on this diagram · 3 diagrams in section
