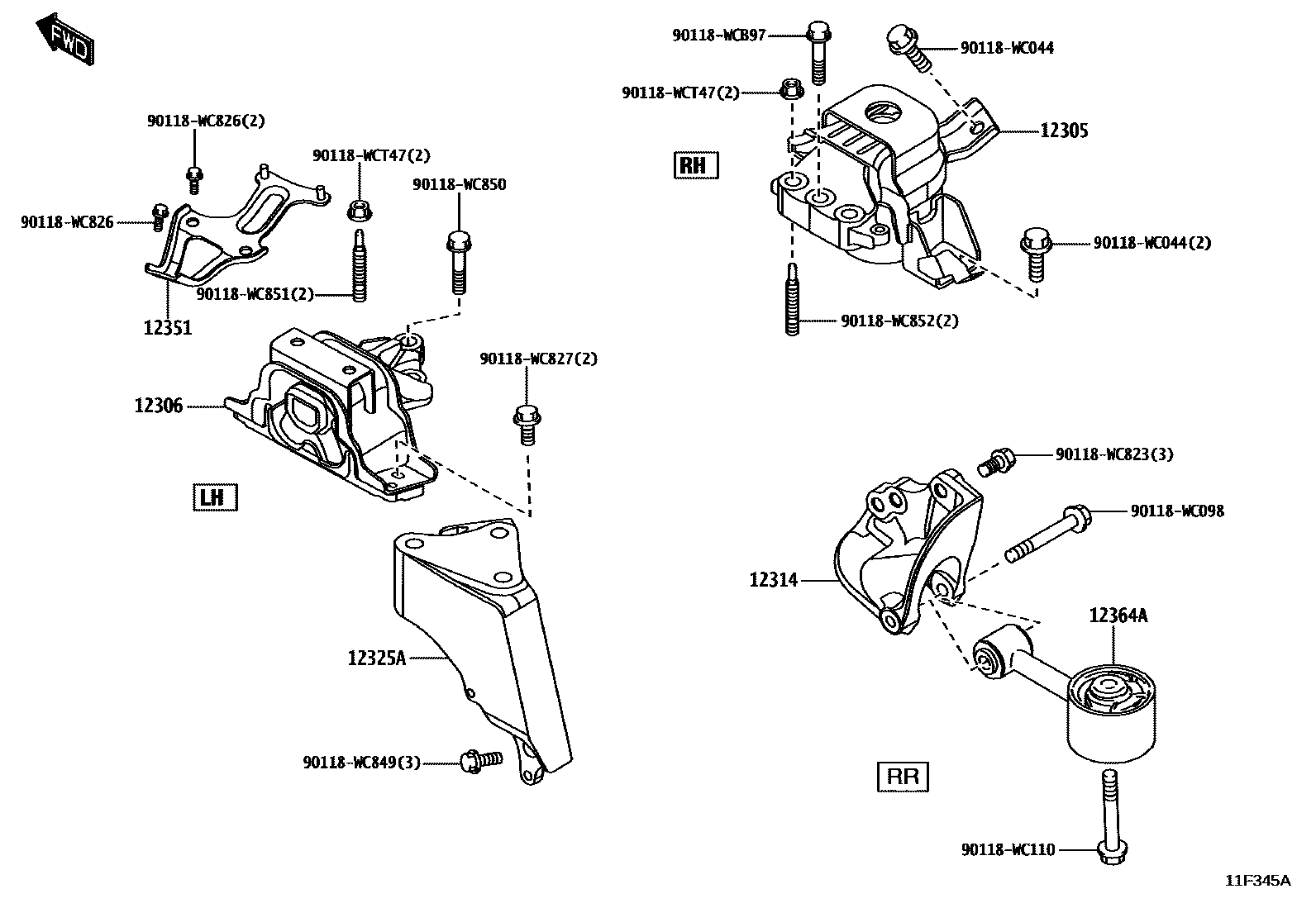

Toyota URBAN CRUISER — MOUNTING
12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
main12305-WC005
12306INSULATOR SUB-ASSY, ENGINE MOUNTING, LH
main12306-WC004
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12351DAMPER, ENGINE MOUNTING
main12351-WC004
12364AROD, ENGINE LATERAL CONTROL
90118WC044
main90118-WC044
90118WC098
main90118-WC098
90118WC110
main90118-WC110
90118WC823
main90118-WC823
90118WC826
main90118-WC826
90118WC827
main90118-WC827
90118WC849
main90118-WC849
90118WC850
main90118-WC850
90118WC851
main90118-WC851
90118WC852
main90118-WC852
90118WCB97
main90118-WCB97
90118WCT47
main90118-WCT47
18 parts on this diagram · 2 diagrams in section
