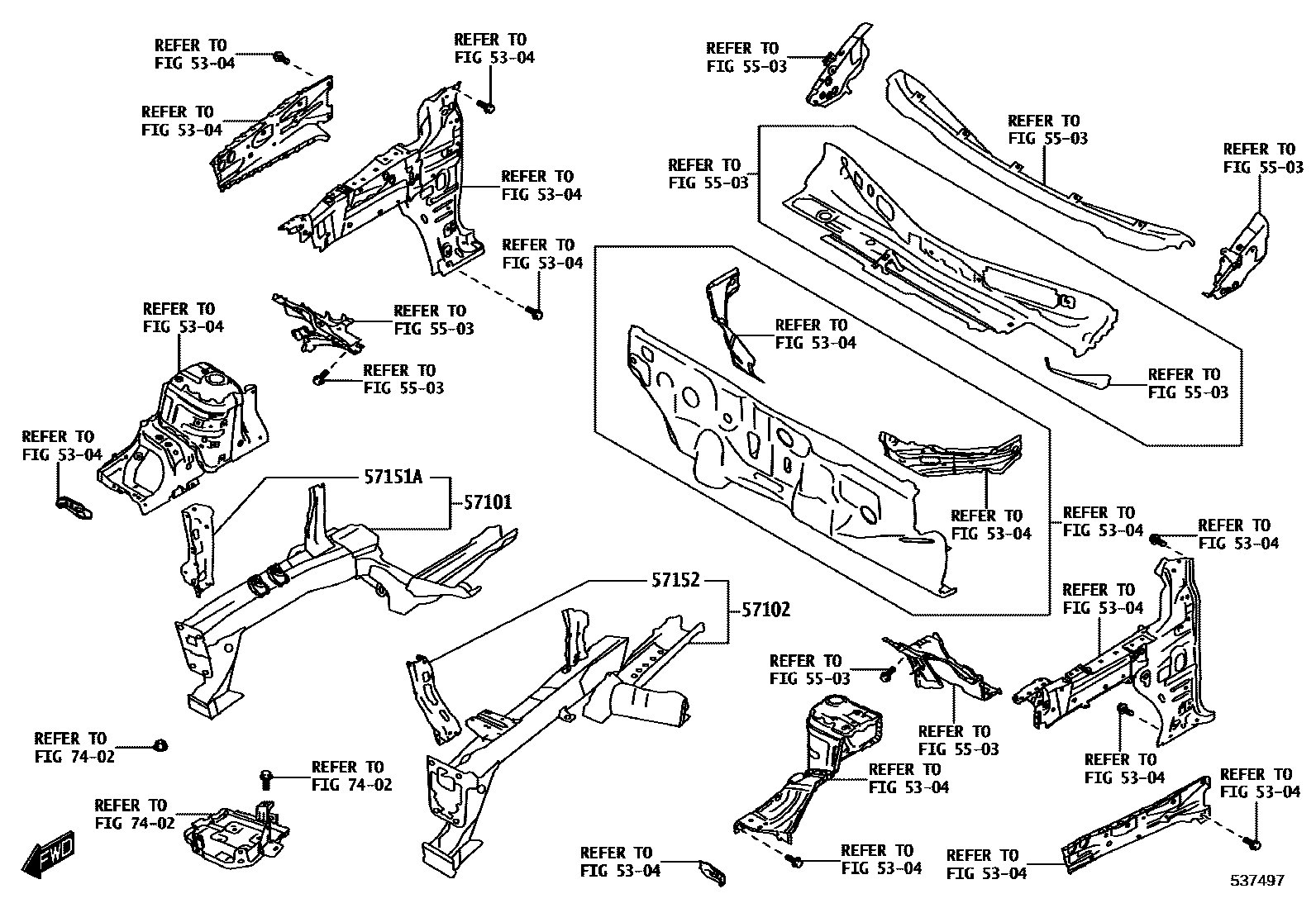

Toyota URBAN CRUISER — FLOOR SIDE MEMBER

0001 1 0002 1

5304

5503

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-WC004

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-WC004

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-WC001

7402

7 parts on this diagram · 2 diagrams in section
