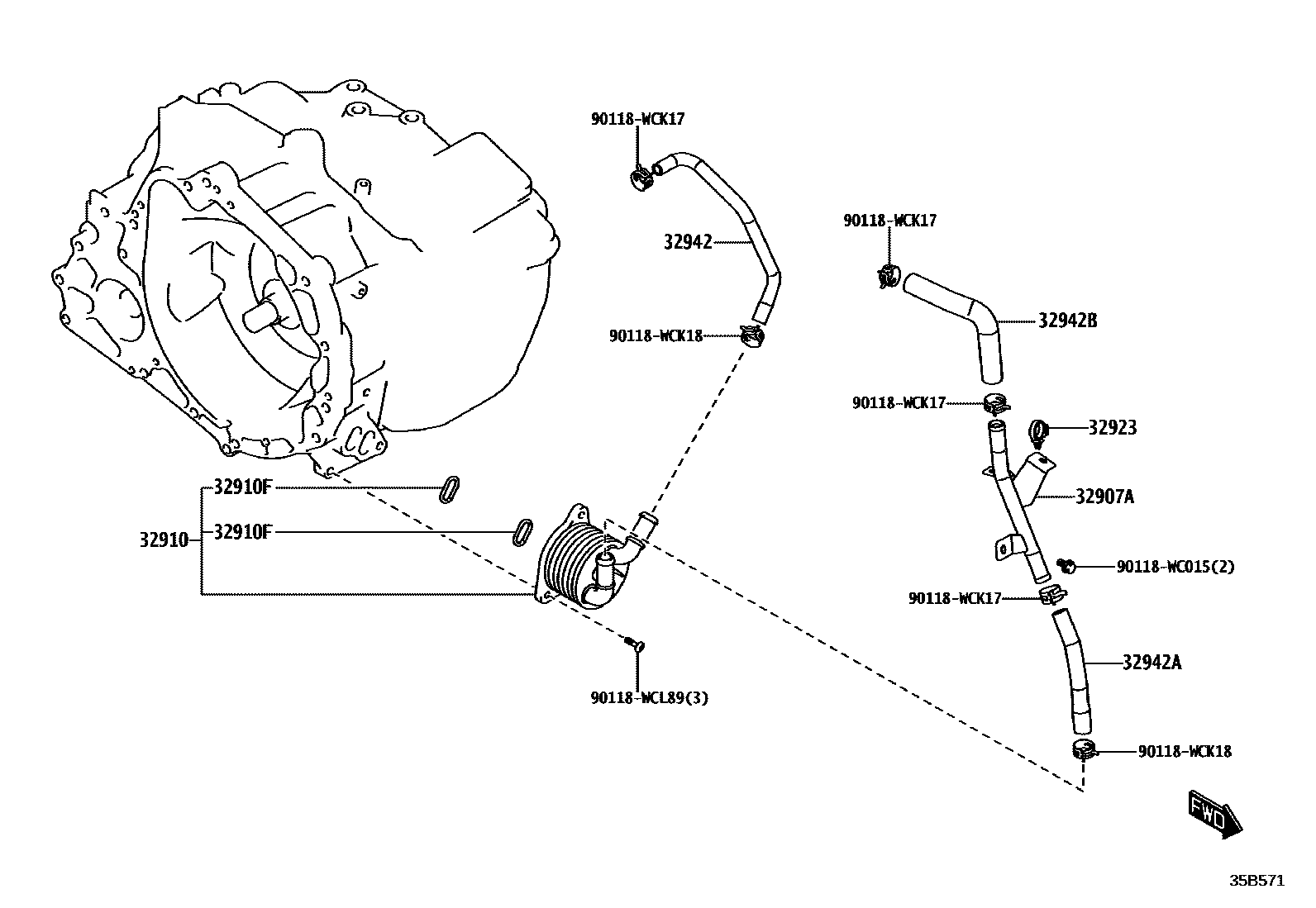

Toyota URBAN CRUISER TAISOR — OIL COOLER & TUBE (ATM)

32907ATUBE, OIL COOLER

32910COOLER ASSY, OIL

main32910-WC002

main90118-WCL90

32910FRING, O(FOR OIL COOLER)

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-WC001

32942HOSE, OIL COOLER OUTLET, NO.1

main32943-WC001

main32943-WC002

main32943-WC003

32942AHOSE, OIL COOLER OUTLET, NO.2

32942BHOSE, OIL COOLER OUTLET, NO.3

90118WC015

main90118-WC015

90118WCK17

main90118-WCK17

90118WCK18

main90118-WCK18

90118WCL89

main90118-WCL89

11 parts on this diagram · 1 diagram in section
