Toyota URBAN CRUISER TAISOR — CRANKSHAFT & PISTON

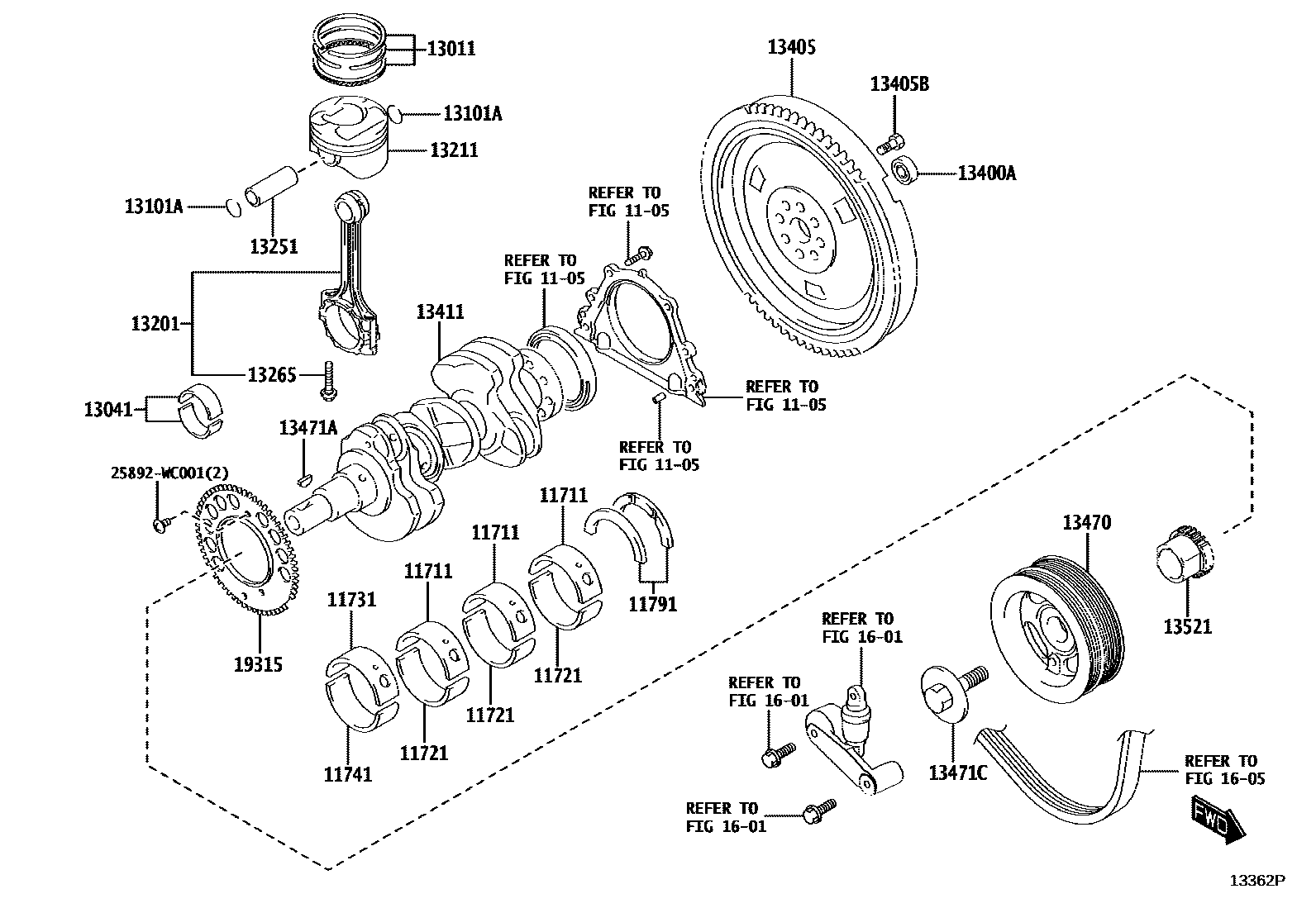

Parts diagram

1105

11711BEARING, CRANKSHAFT

main11711-WC011

main11711-WC012

main11711-WC013

main11711-WC014

main11711-WC015

main11711-WC016

main11711-WC017

main11711-WC018

main11711-WC019

main11711-WC020

11721BEARING, CRANKSHAFT, NO.2

main11721-WC011

main11721-WC012

main11721-WC013

main11721-WC014

main11721-WC015

main11721-WC016

main11721-WC017

main11721-WC018

main11721-WC019

main11721-WC020

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-WC001i202404

STD

main11791-WC002i202404

U/S 0.125

13011RING SET, PISTON

main13011-WC001

main13011-WC008

13041BEARING, CONNECTING ROD

main13281-WC001

main13281-WC002

main13281-WC003

main13281-WC004

main13281-WC005

main13281-WC006

main13281-WC013

main13281-WC014

main13281-WC015

main13281-WC016

main13281-WC017

main13281-WC018

13101ARING, HOLE SNAP(FOR PISTON PIN)

13201ROD SUB-ASSY, CONNECTING

main13201-WC005

main13201-WC009

13211PISTON

main13211-WC005

main13211-WC008

13251PIN, PISTON

main13251-WC002

main13251-WC003

13265BOLT, CONNECTING ROD

main13265-WC001

main13265-WC002

13400ABEARING(FOR CRANKSHAFT)

13405FLYWHEEL SUB-ASSY

main13405-WC009

main13405-WC011

main90118-WC096

13405BBOLT, FLYWHEEL SETTING

13411CRANKSHAFT

main13401-WC003

main13401-WC011

13470PULLEY ASSY, CRANKSHAFT

main13470-WC008

13471PULLEY, CRANKSHAFT

main13470-WC002

main90118-WC083

main90118-WCA47

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90118-WC083i202404

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90118-WCA47i202404

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-WC002

main13521-WC006

1601

1605

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-WC001

main19315-WC008

25892WC001

main25892-WC001
