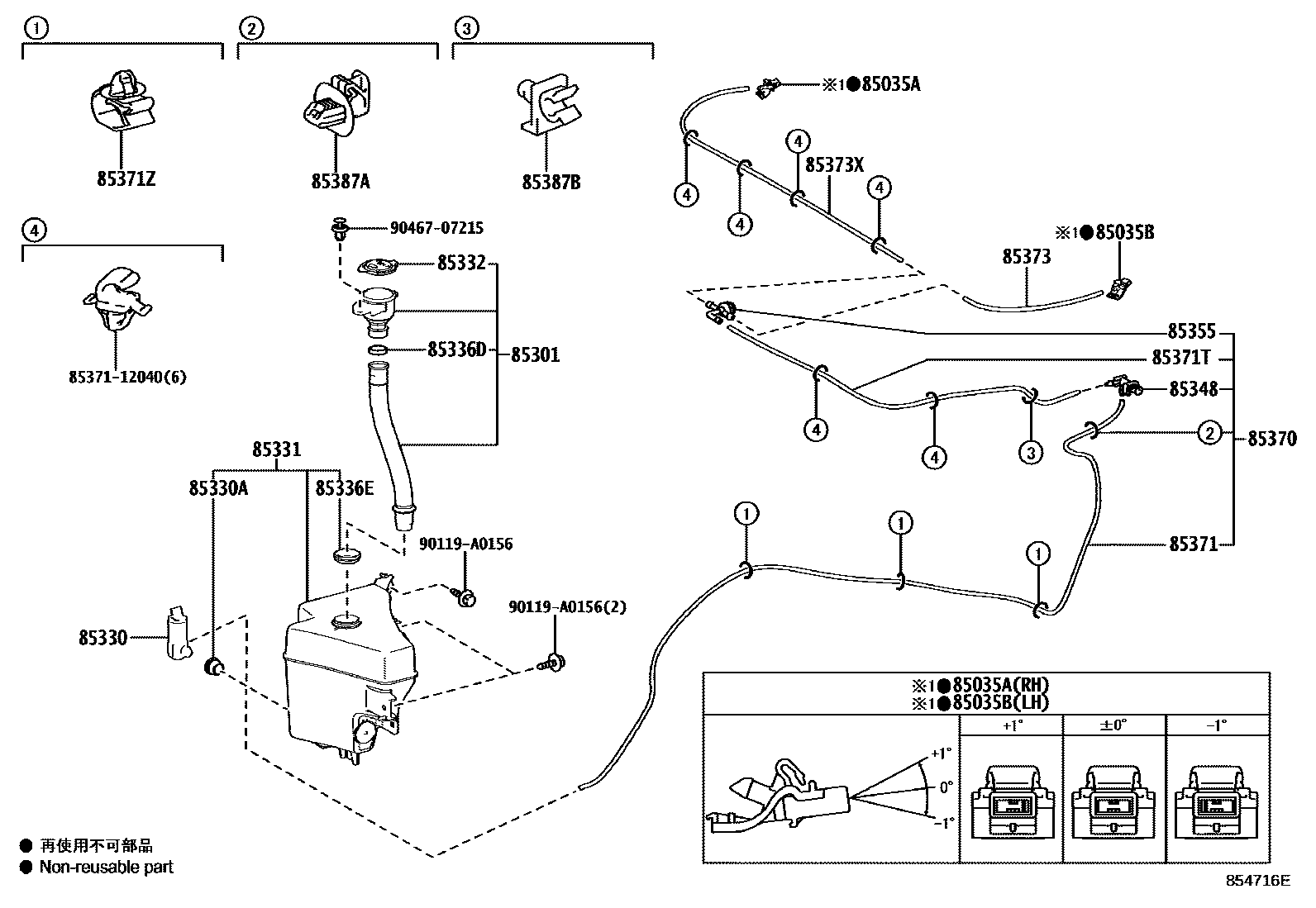

Toyota TUNDRA/SEQUOIA — WINDSHIELD WASHER

0001 1W/O LEVEL SENSOR 0002 1W LEVEL SENSOR 0003 1

85035ANOZZLE, FR WASHER, RH

main85381-0T010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z¥1,200202111-202408

ANGLE 0

main85381-0T010iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥1,200202111

ANGLE 0

main85381-0T020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z¥970202111-202408

ANGLE +1

main85381-0T020iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥970202111

ANGLE +1

main85381-0T030iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z¥970202111-202408

ANGLE -1

main85381-0T030iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥970202111

ANGLE -1

85035BNOZZLE, FRONT WASHER, LH

main85381-0T010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z¥1,200202111-202408

ANGLE 0

main85381-0T010iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥1,200202111

ANGLE 0

main85381-0T020iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥970202111

ANGLE +1

main85381-0T020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z¥970202111-202408

ANGLE +1

main85381-0T030iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z¥970202111-202408

ANGLE -1

main85381-0T030iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥970202111

ANGLE -1

85301INLET SUB-ASSY, WASHER

main85301-0C030iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

main85301-0C030iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

85330JAR ASSY, WINDSHIELD WASHER

main85330-04011iVXKA71,VXKH71..Z;VXKA70,75..DCB..L202111-202408

main85330-04011iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71..L,S;VXKA70,75,76,VXKH70,75,76..CMAX202111

main85330-0A020iVXKH80..Z202207-202408

main85330-0A020iVXKH85;VXKH80..L,S202207

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

main90099-32089iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

85331JAR SUB-ASSY, WINDSHIELD WASHER

main85315-0C110iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

main85315-0C110iVXKH85;VXKH80..L,S;VXKA71,VXKH71..L;VXKA70,75,76,VXKH70,75,76..CMAX..(L,U,Z)202111

main85315-0C130iVXKA7#..S202111

85332CAP, WINDSHIELD WASHER JAR

main85316-24130iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

main85316-24130iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

85336DPACKING, WINDSHIELD WASHER JAR

main85336-42320iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥0202111

main85336-42320iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z¥0202111-202408

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

main85336-30160iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main867F4-0C010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

main867F4-0C010iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

85355VALVE, WINDSHIELD WASHER HOSE

main85321-0C010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

main85321-0C010iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

85370HOSE ASSY, WINDSHIELD WASHER

main85370-0C140iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

main85370-0C140iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90069-46245iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

L=1808

main90069-46245iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

L=1808

85371THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)

main90069-46246iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

L=804

main90069-46246iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

L=804

85371ZCLAMP, WASHER HOSE

main82711-16790iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z¥120202111-202408

main82711-16790iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥120202111

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90069-46241iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

L=289

main90069-46241iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

L=289

85373XHOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE), NO.2

main90069-46242iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

L=949

main90069-46242iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

L=949

85387ACLAMP, WASHER, NO.2

main85371-0C010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

main85371-0C010iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

85387BCLAMP, WASHER, NO.3

main85371-06010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

main85371-06010iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040¥100

90119A0156

main90119-A0156¥60

9046707215

main90467-07215¥80

22 parts on this diagram · 3 diagrams in section
