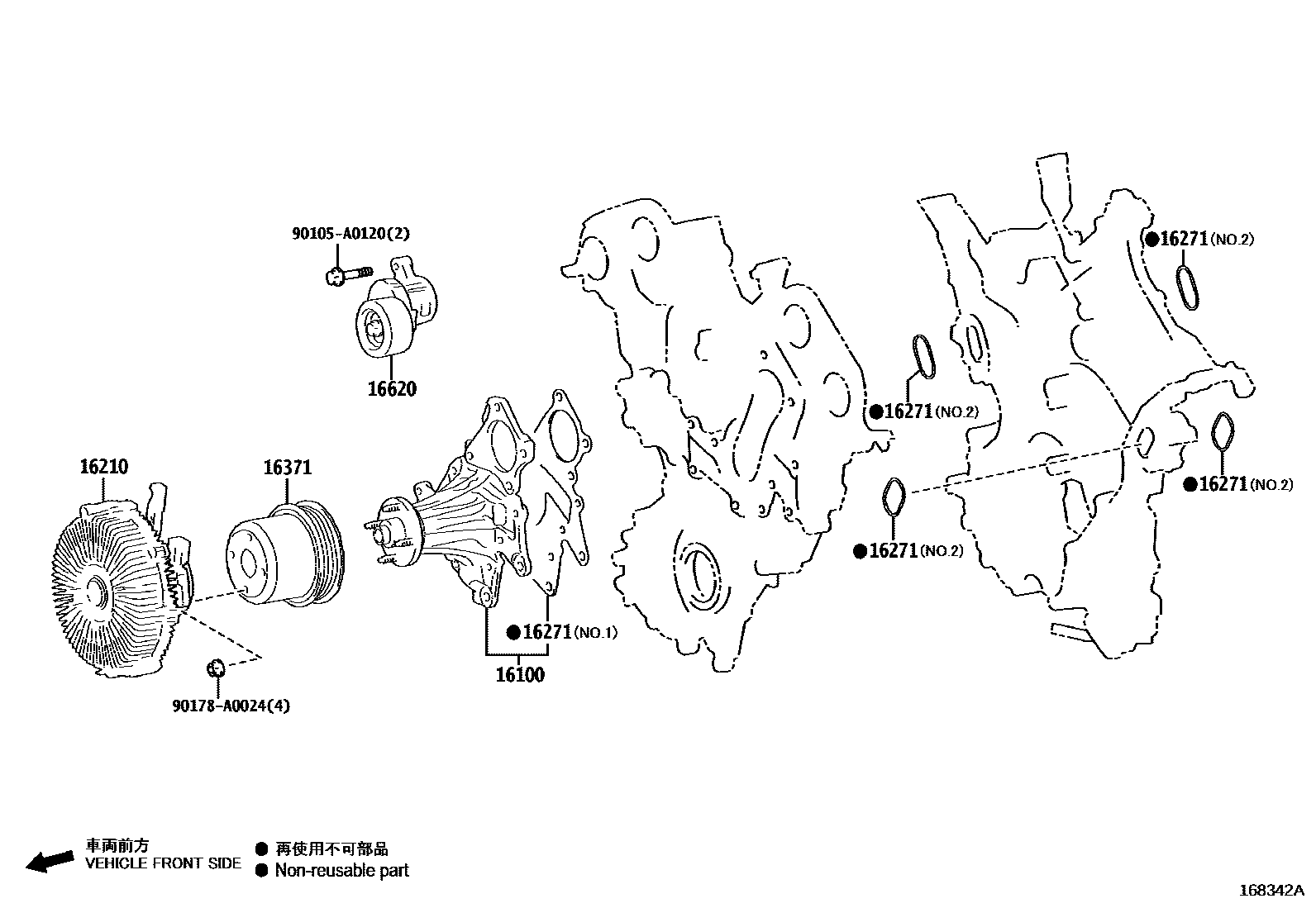

Toyota TUNDRA/SEQUOIA — WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-F9010iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

main16100-F9010iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

16210COUPLING ASSY, FLUID

main16210-70110iV35AFTS..VXKA7#,VXKH7#,8#¥28,100202111-202407

sub16210-70111¥25,500

main16210-70111iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥25,500202408

16271GASKET, WATER PUMP

main16271-70020iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z¥370202111-202408

NO.2

main16271-70020iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥370202111

NO.2

main16271-F4010iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

NO.1

main16271-F4010iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

NO.1

16371PULLEY, FAN

main16371-0W010iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z¥2,560202111-202408

main16371-0W010iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥2,560202111

16620TENSIONER ASSY, V-RIBBED BELT

main16610-F4010iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

main16610-F4010iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

90105A0120

main90105-A0120

90178A0024

main90178-A0024

7 parts on this diagram · 2 diagrams in section
