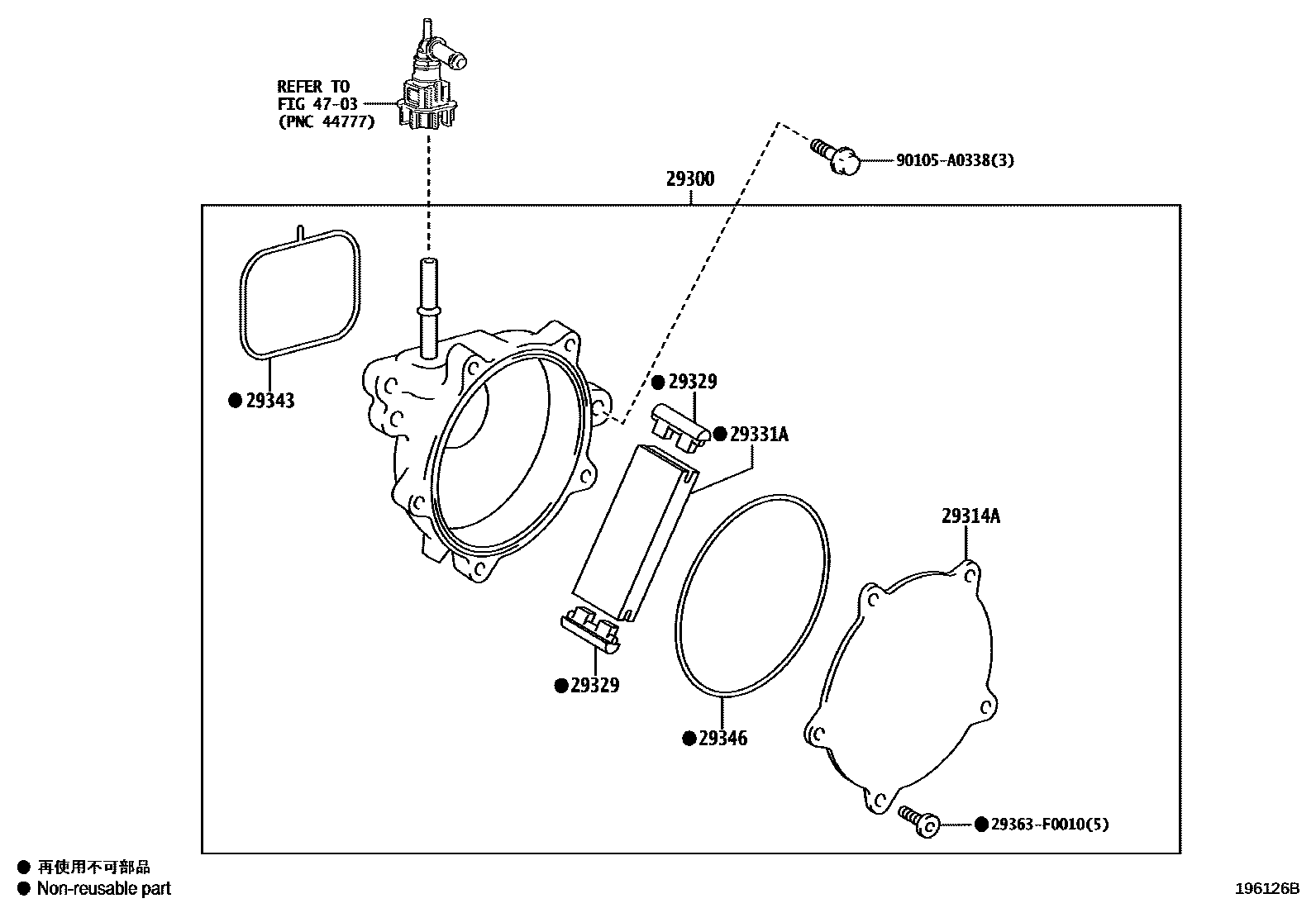

Toyota TUNDRA/SEQUOIA — VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-F0011iV35AFTS..VXKA7#202111-202201

sub29300-F0012

main29300-F0012iV35AFTS..VXKA71..Z;V35AFTS..VXKA70,75..DCB..L202202-202408

29314ACOVER, END

main29314-F0010iV35AFTS..VXKA71..Z;V35AFTS..VXKA70,75..DCB..L202111-202408

29329CAP, VACUUM PUMP VANE

main29329-F0011iV35AFTS..VXKA71..Z;V35AFTS..VXKA70,75..DCB..L202111-202408

29331AVANE, VACUUM PUMP

main29331-F0010iV35AFTS..VXKA71..Z;V35AFTS..VXKA70,75..DCB..L202111-202408

29343RING, O VACUUM PUMP, NO.1

main29343-F0010iV35AFTS..VXKA71..Z;V35AFTS..VXKA70,75..DCB..L202111-202408

29346RING, O VACUUM PUMP COVER

main29346-F0010iV35AFTS..VXKA71..Z;V35AFTS..VXKA70,75..DCB..L202111-202408

4703

29363F0010SCREW, HOLLOW VACUUM PUMP

main29363-F0010

90105A0338

main90105-A0338

9 parts on this diagram · 1 diagram in section
