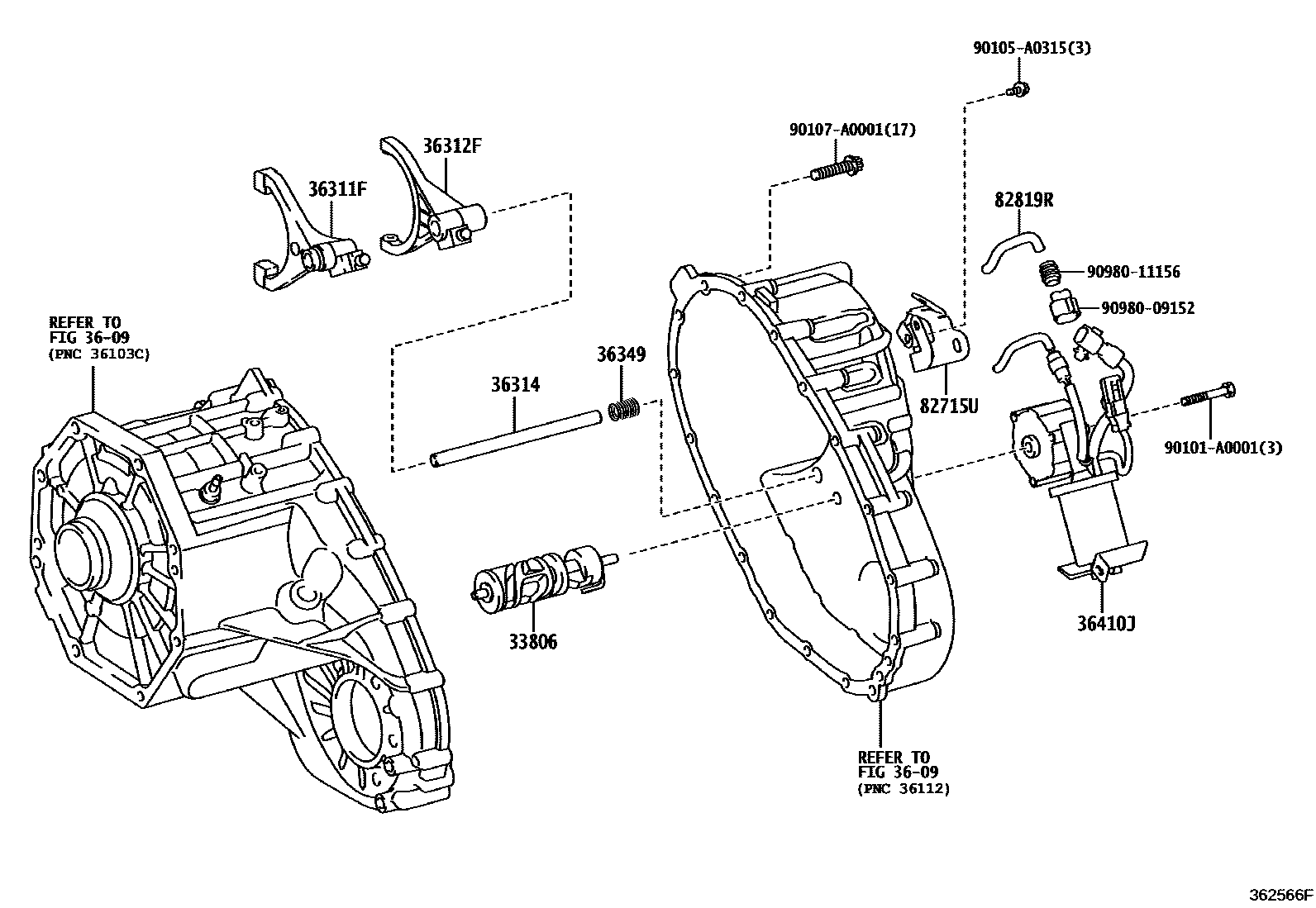

Toyota TUNDRA/SEQUOIA — TRANSFER LEVER & SHIFT ROD

33806SHAFT SUB-ASSY, CONTROL SELECT

main33806-0C020iVXKA75..DCB..L202111-202408

3609

36311FFORK, TRANSFER GEAR SHIFT, NO.1

main36301-0C020iVXKA75..DCB..L202111-202408

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36302-0C020iVXKA75..DCB..L202111-202408

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-0C020iVXKA75..DCB..L202111-202408

36349SPRING, TRANSFER SELECT RETURN

main36349-0C020iVXKA75..DCB..L202111-202408

36410JACTUATOR ASSY, TRANSFER SHIFT

main36410-0C020iVXKA75..DCB..L202111-202408

82715UBRACKET, WIRING HARNESS CLAMP

main82715-0CB20iVXKA75..DCB..L202111-202408

82819RGROMMET, WIRING HARNESS

main82819-0C260iVXKA75..DCB..L202111-202408

90101A0001

main90101-A0001

90105A0315

main90105-A0315

90107A0001

main90107-A0001

9098009152

main90980-09152¥80

9098011156

main90980-11156¥360

14 parts on this diagram · 1 diagram in section
