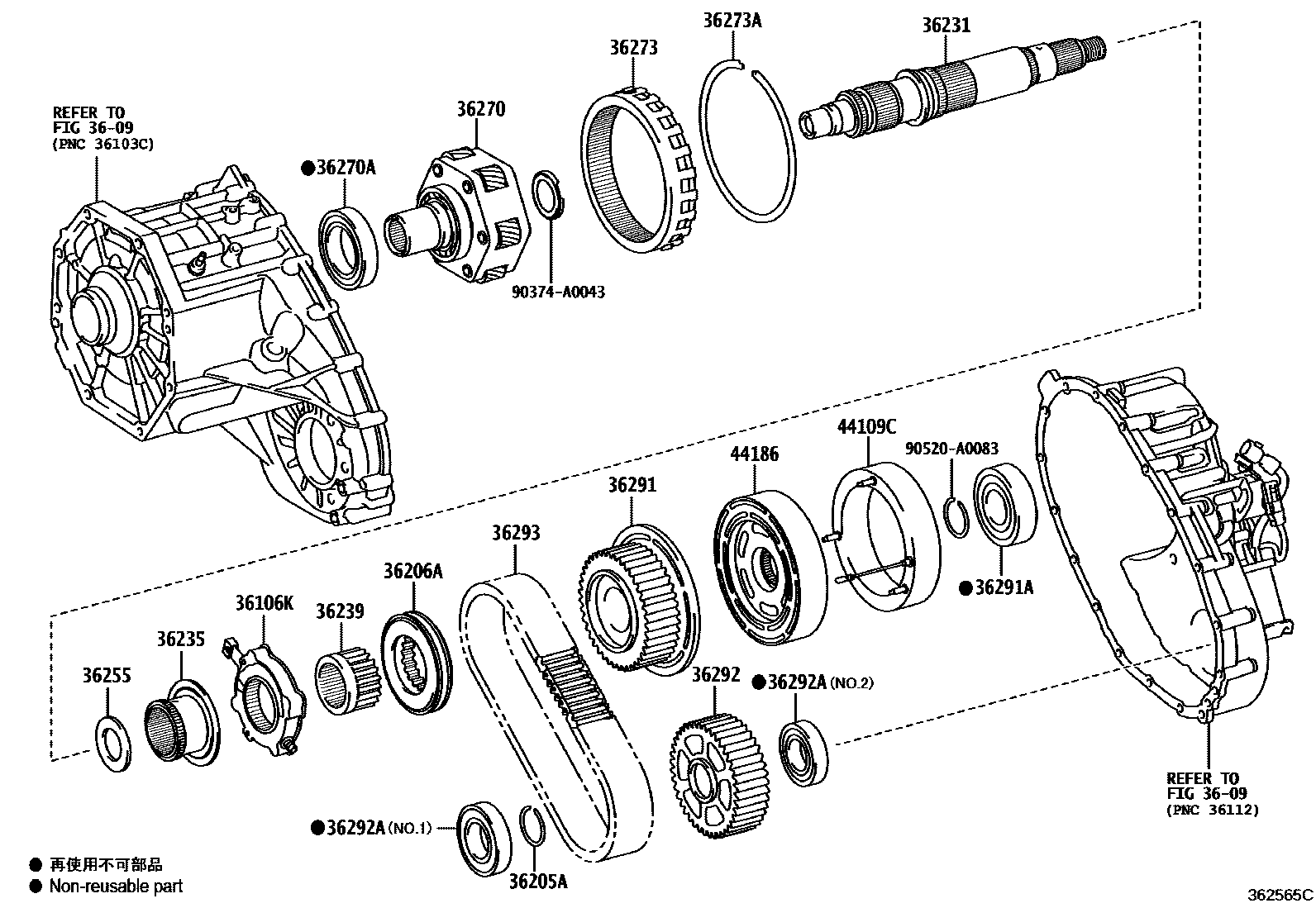

Toyota TUNDRA/SEQUOIA — TRANSFER GEAR

3609

36106KBODY SUB-ASSY, TRANSFER OIL PUMP

main36106-0C020iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111-202408

36205ARING, SHAFT SNAP

main90520-A0041iVXKA75..DCB..L202111-202408

36206ASLEEVE SUB-ASSY, TRANSFER FRONT DRIVE CLUTCH

main36206-0C010iVXKA75..DCB..L202111-202408

36231SHAFT, TRANSFER OUTPUT, REAR

main36231-0C020iVXKA75..DCB..L202111-202408

36235SLEEVE, TRANSFER HIGH & LOW CLUTCH

main36235-0C010iVXKA75..DCB..L202111-202408

36239HUB, TRANSFER DRIVE CLUTCH

main36239-0C010iVXKA75..DCB..L202111-202408

36255SPACER, TRANSFER OUTPUT SHAFT, NO.1

main36256-0C010iVXKA75..DCB..L202111-202408

36270GEAR ASSY, TRANSFER LOW PLANETARY

main36270-0C030iVXKA75..DCB..L202111-202408

36270ABEARING (FOR TRANSFER LOW PLANETARY GEAR)

main90363-A0032iVXKA75..DCB..L202111-202408

36273GEAR, TRANSFER LOW PLANETARY RING

main36273-0C010iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111-202408

36273ARING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR)

main90520-A0040iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111-202408

36291SPROCKET, TRANSFER DRIVE

main36205-0C020iVXKA75..DCB..L202111-202408

36291ABEARING (FOR TRANSFER DRIVE SPROCKET)

main90363-A0033iVXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH75,76,85202111-202408

36292SPROCKET, TRANSFER DRIVEN

main36292-0C020iVXKA75..DCB..L202111-202408

36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)

main90363-A0013iVXKA75..DCB..L202111-202408

NO.1:REFER ILLUST.

main90363-A0014iVXKA75..DCB..L202111-202408

NO.2:REFER ILLUST.

36293CHAIN, TRANSFER FRONT DRIVE

main36293-0C020iVXKA75..DCB..L202111-202408

44109CCOIL SUB-ASSY, SOLENOID

main44109-0C010iVXKA75..DCB..L202111-202408

44186COVER, SOLENOID

main44186-0C020iVXKA75..DCB..L202111-202408

90374A0043

main90374-A0043

90520A0083

main90520-A0083

21 parts on this diagram · 1 diagram in section
