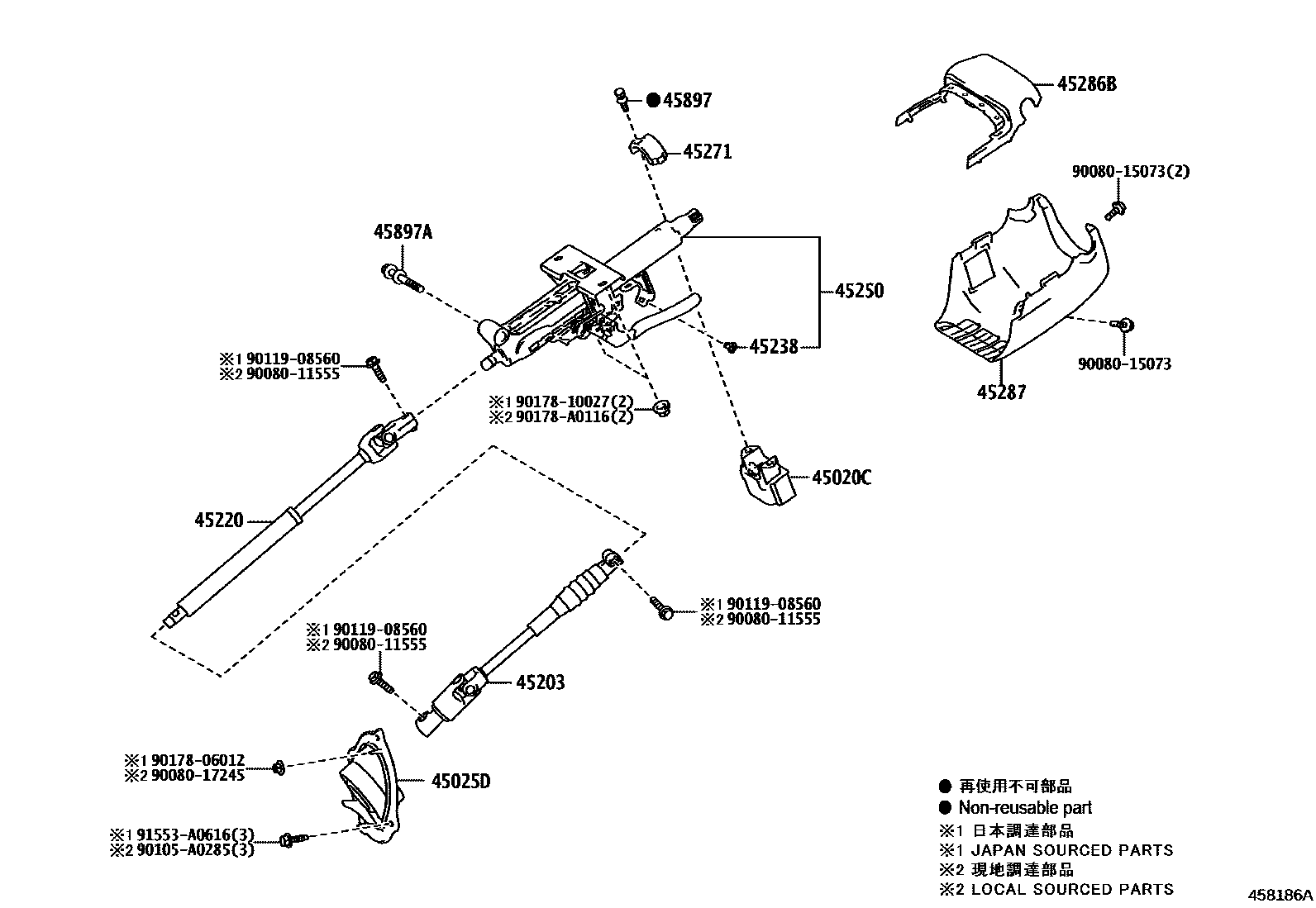

Toyota TUNDRA/SEQUOIA — STEERING COLUMN & SHAFT

0001 1MANUAL TILT & TELESCOPIC 0002 1POWER TILT & TELESCOPIC

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-08020iVXKA7#,VXKH7#,8#..L,S202111-202302

main45713-AK010iVXKA70,75..DCB..L202303-202408

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0C030iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408

45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2

main45203-0C030iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-0C020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-11010iVXKA70,75,76,VXKH70,75,76,85..U,Z¥70202111-202408

main45238-52010iVXKA70,75..DCB..L¥70202111-202408

45250COLUMN ASSY, STEERING

main45250-06B00iVXKA70,75..DCB..L202303-202408

main45250-06B90iVXKA71,VXKH71,80..Z202209-202408

main45250-07191iVXKA7#,VXKH7#,8#..L,S202111-202302

main45250-0C350iVXKA70,71,75,76,VXKH7#,8#..U,Z202111-202208

45271CLAMP, STEERING COLUMN, UPPER

main45271-08010iVXKA70,75..DCB..S;VXKA70,75..CMAX..(L,S);VXKA71,72,76,77,VXKH7#,8#..L,S202111-202408

45286BCOVER, STEERING COLUMN, UPR

main45286-06330-C0iVXKH75,85..S,U;VXKA70,75..DCB..S;VXKA70,75..CMAX..(L,S);VXKA71,72,76,77,VXKH70,71,76,80..L,S202111-202408

BLACK,TRIM1#,2#

main45286-06330-C0iVXKA70,75..DCB..L202111-202408

BLACK,TRIM2#,4#

main45286-06330-C0iVXKH75,85..L202203

BLACK,TRIM1#,2#,3#

main45286-06330-C0iVXKH85..Z202207

BLACK,TRIM1#,2#,4#

45287COVER, STEERING COLUMN, LWR

main45287-06420-C0iVXKH75,85..L202203

BLACK,TRIM1#,2#,3#

main45287-06420-C0iVXKA70,75..CMAX..(L,S);VXKA70,75,VXKH85..(DCB,SRF)..S;VXKA71,72,76,77,VXKH70,71,76,80..L,S202111-202408

BLACK,TRIM1#,2#

main45287-06430-C0iVXKH75..U202203

BLACK,TRIM1#,2#

main45287-06430-C0iVXKH85..Z202207

BLACK,TRIM1#,2#,4#

main45287-06430-C0iVXKA71,VXKH71,80..Z202111-202408

BLACK,TRIM2#,4#

45897BOLT, STEERING LOCK SET

main45897-08010iVXKA70,75..DCB..L¥200202111-202408

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z¥190202111-202408

(J)

main90119-A0362iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

(L)

9008011555

main90080-11555

9008015073

main90080-15073

9008017245

main90080-17245

90105A0285

main90105-A0285

9011908560

main90119-08560¥110

9017806012

main90178-06012¥80

9017810027

main90178-10027¥100

90178A0116

main90178-A0116

91553A0616

main91553-A0616¥60

20 parts on this diagram · 2 diagrams in section
