Toyota TUNDRA/SEQUOIA — SIDE MEMBER

0001 1OUTER PANEL 0002 1OUTER PANEL 0003 1OUTER PANEL 0004 1INNER PANEL, RH 0005 1INNER PANEL, RH 0006 1INNER PANEL, RH 0007 1INNER PANEL, LH 0008 1INNER PANEL, LH 0009 1INNER PANEL, LH

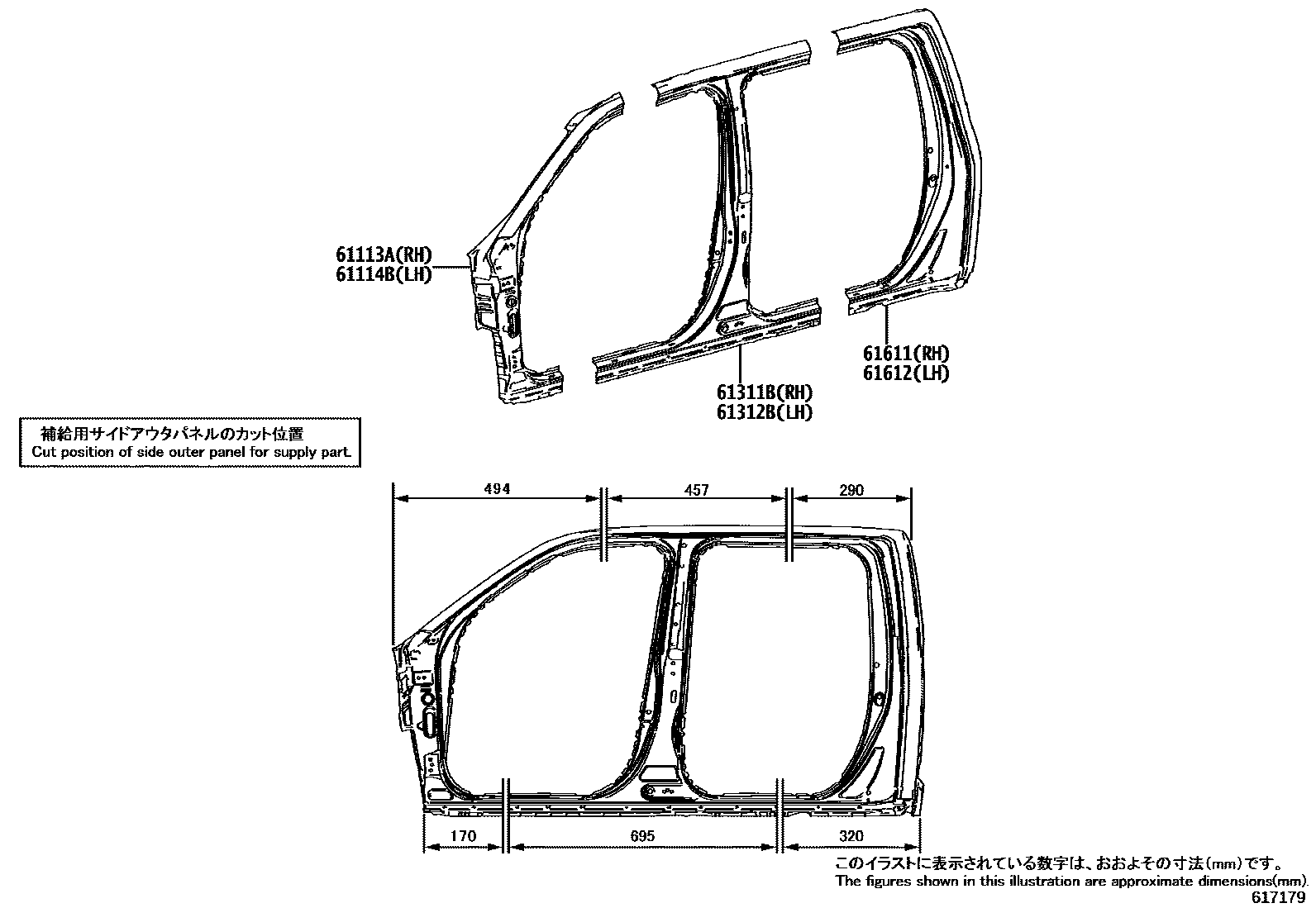

61113APANEL, SIDE, OUTER NO.2 RH

main61113-0C010iVXKA71,VXKH71..Z;VXKA70,75..DCB..L202111-202408

main61113-0C020iVXKH80..Z202207-202408

61114BPANEL, SIDE, OUTER NO.2 LH

main61114-0C010iVXKA71,VXKH71..Z;VXKA70,75..DCB..L202111-202408

main61114-0C020iVXKH80..Z202207-202408

61311BPILLAR, CENTER BODY, OUTER RH

main61311-0C010iVXKA71,VXKH71..L,S;VXKA70,75,76,VXKH70,75,76..CMAX202111-202408

main61311-0C020iVXKA70,75..DCB..L202111-202408

main61311-0C030iVXKH80..Z202207-202408

61312BPILLAR, CENTER BODY, OUTER LH

main61312-0C010iVXKA71,VXKH71..Z202111-202408

main61312-0C020iVXKA70,75..DCB..L202111-202408

main61312-0C030iVXKH80..Z202207-202408

61611PANEL, QUARTER, RH

main61601-0C030iVXKH85;VXKH80..L,S202207-202408

main61611-0C100iVXKA71,VXKH71..Z202111-202408

main61611-0C110iVXKA70,72,75,77..DCB..S202111-202408

61612PANEL, QUARTER, LH

main61602-0C030iVXKH85;VXKH80..L,S202207-202408

main61612-0C120iVXKA71,VXKH71..Z202111-202408

main61612-0C130iVXKA70,72,75,77..DCB..S202111-202408

6 parts on this diagram · 9 diagrams in section
