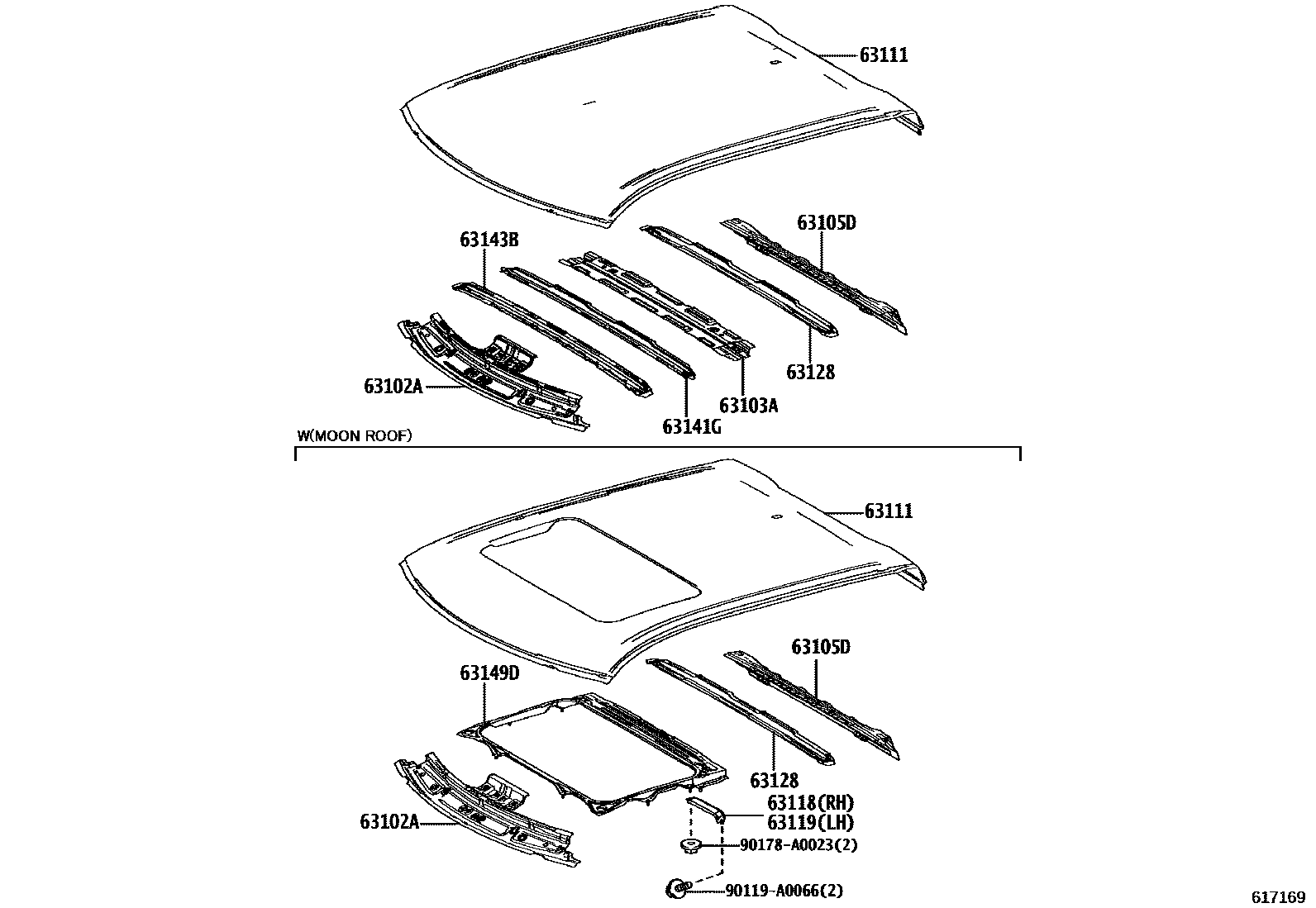

Toyota TUNDRA/SEQUOIA — ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1REMOVABLE ROOF HOUSING(MOON R0007 1REMOVABLE ROOF HOUSING(PANORA0008 1 0009 1 0010 1ROOF RACK

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0C913iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-0C030iVXKA7#..S202111

MOON ROOF-WITHOUT

main63103-0C030iVXKA7#..S202111

MOON ROOF-WITHOUT&TRAILER CAMERA-WITH

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-0C100iVXKA71,VXKH71..Z202111-202408

main63105-0C110iVXKA70,75..DCB..L202111-202408

main63105-0C130iVXKH80..Z202207-202408

63111PANEL, ROOF

main63111-0C200iVXKA70,71,75,76,VXKH7#..CMAX..L202111

MOON ROOF-WITHOUT

main63111-0C210iVXKA71,VXKH71..Z202111-202408

main63111-0C210iVXKA71,VXKH71..L;VXKA70,75,76,VXKH70,75,76..CMAX..(L,U,Z)202111

MOON ROOF-WITH(PANORAMA ROOF)

main63111-0C220iVXKH8#..L,S202207

main63111-0C260iVXKA70,72,75,77..DCB..S202111

main63111-0C270iVXKA70,75..DCB..L202111-202408

main63111-0C280iVXKH80..Z202207-202408

main63111-0C280iVXKH85..Z202207

MOON ROOF-WITH(PANORAMA ROOF)

63118SUPPORT, ROOF PANEL, RH

main63118-0C010iVXKA70,75..DCB..L202111-202408

main63118-0C060iVXKH8#..L,S202207

63119SUPPORT, ROOF PANEL, LH

main63119-0C010iVXKA70,75..DCB..L202111-202408

main63119-0C060iVXKH8#..L,S202207

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-0C020iVXKA70,75..DCB..L202111-202408

main63128-0C020iVXKA7#..S202111

MOON ROOF-WITHOUT

main63128-0C020iVXKA7#..S202111

MOON ROOF-WITHOUT&TRAILER CAMERA-WITH

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63123-0C020iVXKA7#..S202111

MOON ROOF-WITHOUT

main63123-0C020iVXKA7#..S202111

MOON ROOF-WITHOUT&TRAILER CAMERA-WITH

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-0C040iVXKA7#..S202111

MOON ROOF-WITHOUT

main63143-0C040iVXKA7#..S202111

MOON ROOF-WITHOUT&TRAILER CAMERA-WITH

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63142-0C040iVXKA70,75..DCB..L202111-202408

90119A0066

main90119-A0066

90178A0023

main90178-A0023

12 parts on this diagram · 10 diagrams in section
