Toyota TUNDRA/SEQUOIA — REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-0C020iVXKH80..Z202207-202408

85132ACOVER, REAR WIPER SHAFT

main85132-0C010iVXKH80..Z202207-202408

85148RNUT, W/WASHER PACKING, REAR WIPER LINK PIVOT

main85133-0E020iVXKH80..Z202207-202408

85160RLINK ASSY, REAR WIPER

main85170-0E030iVXKH80..Z202207-202408

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05141iVXKH80..Z¥100202207-202408

85176RCAP, REAR WIPER LINK

main85172-0E020iVXKH80..Z202207-202408

85178RNUT (FOR REAR WIPER ARM SETTING)

main90182-A0012iVXKH80..Z¥60202207-202408

85214RRUBBER, REAR WIPER

main85214-42060iVXKH80..Z¥550202207-202408

85241AARM, REAR WIPER

main85241-0C030iVXKH80..Z202207-202408

85242BLADE, RR WIPER

main85242-0E110iVXKH80..Z¥1,100202207-202408

85292ACAP, REAR WIPER ARM HEAD

main85292-02060iVXKH80..Z202207-202408

90182A0028

main90182-A0028

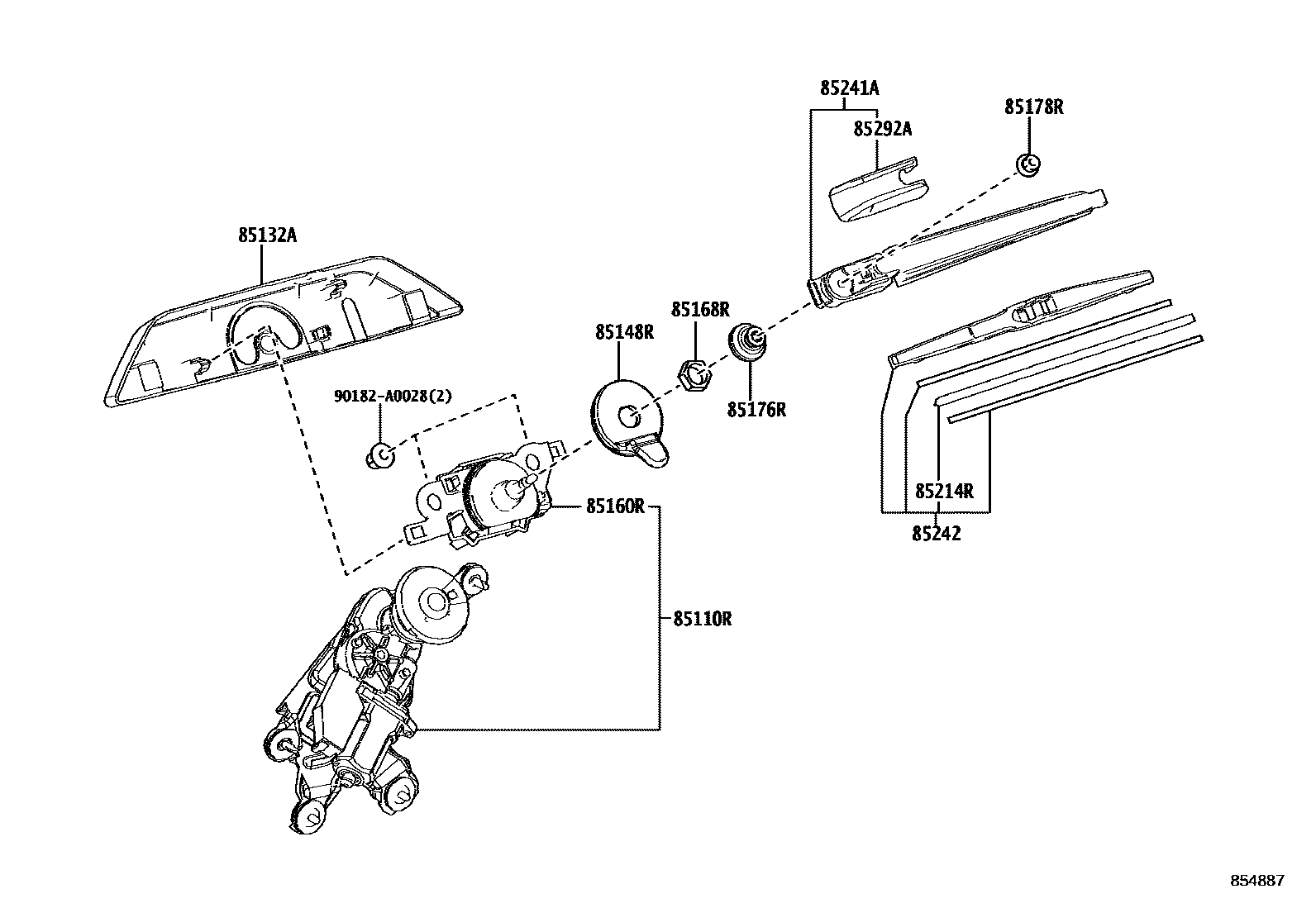

12 parts on this diagram · 1 diagram in section
