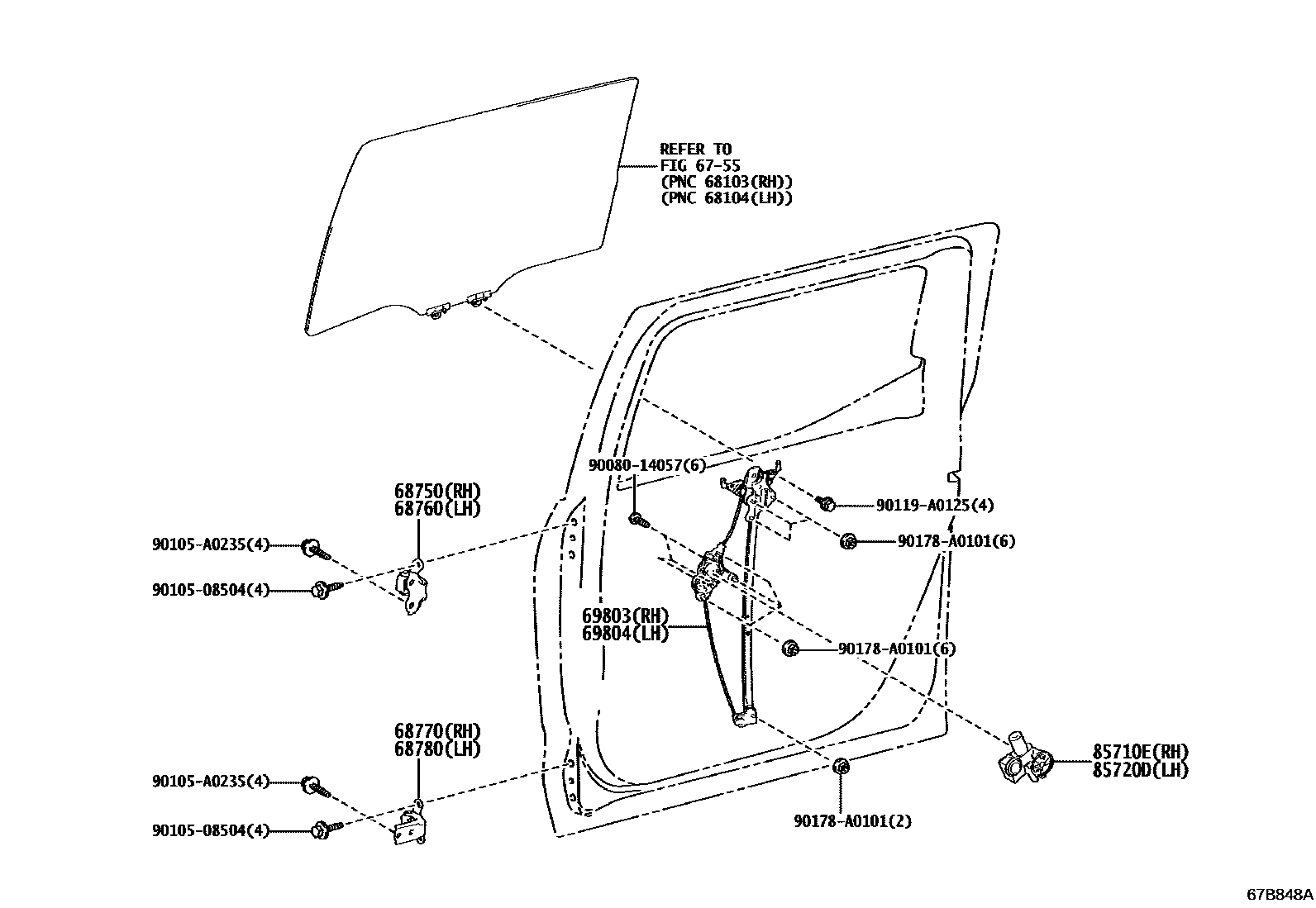

Toyota TUNDRA/SEQUOIA — REAR DOOR WINDOW REGULATOR & HINGE

6755

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0C020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z¥2,030202111-202408

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0C020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z¥2,030202111-202408

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-04010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z¥2,230202111-202408

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-04010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z¥2,230202111-202408

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-0C050iVXKA7#,VXKH7#,8#202111-202303

sub69803-0C051

main69803-0C051iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202304-202408

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-0C050iVXKA7#,VXKH7#,8#202111-202303

sub69804-0C051

main69804-0C051iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202304-202408

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0C150iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0C060iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

9008014057

main90080-14057

9010508504

main90105-08504¥80

90105A0235

main90105-A0235

90119A0125

main90119-A0125

90178A0101

main90178-A0101

14 parts on this diagram · 1 diagram in section
