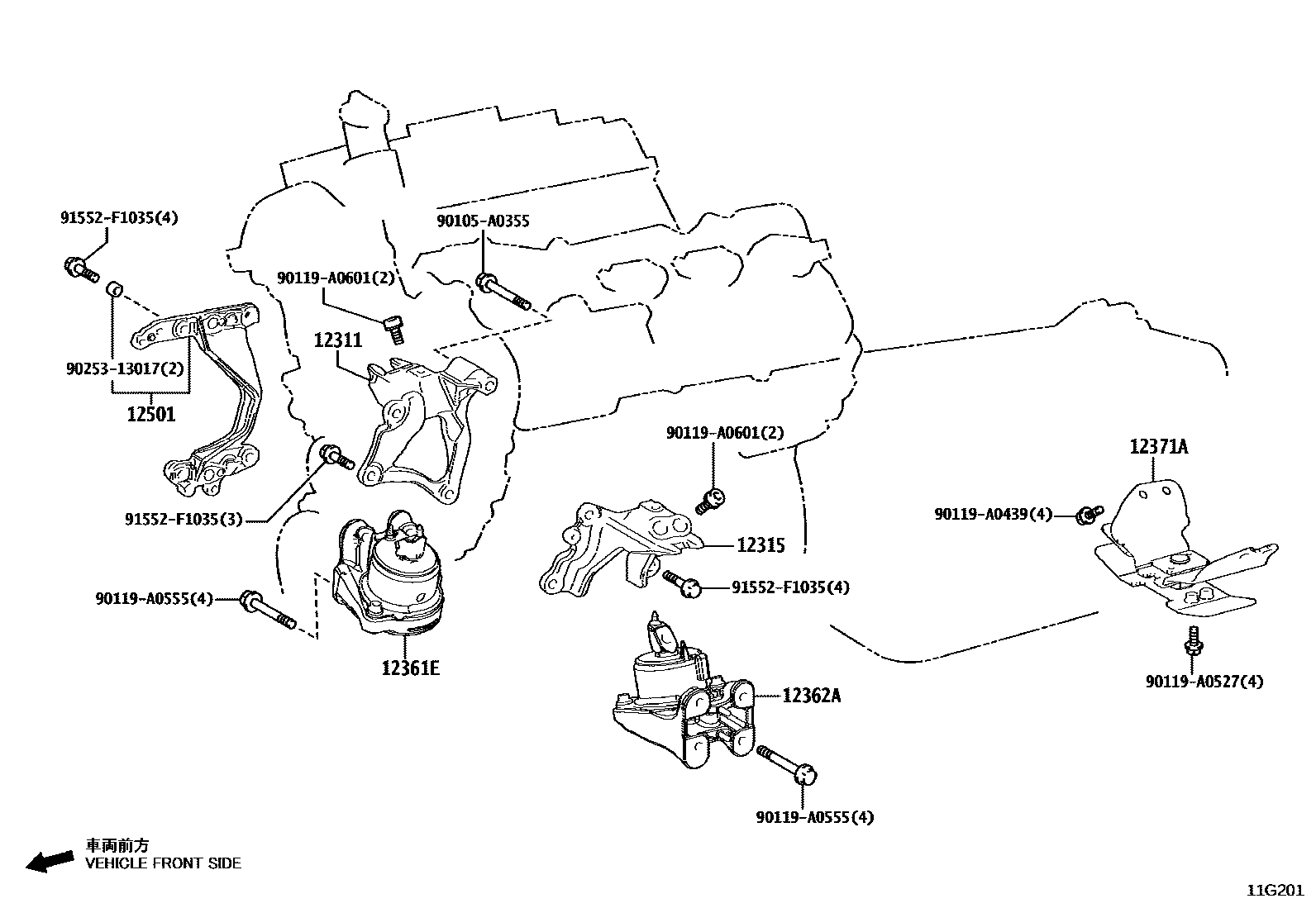

Toyota TUNDRA/SEQUOIA — MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-F4012iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

main12311-F4012iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-F4012iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

main12315-F4012iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

12361EINSULATOR, ENGINE MOUNTING, FRONT RH

main12361-F4012iV35AFTS..VXKA71,72,77..L,S;V35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA70,75,76..CMAX¥9,500202111

main12361-F4012iV35AFTS..VXKA71..Z;V35AFTS..VXKA70,75..DCB..L¥9,500202111-202408

main12361-F4020iV35AFTS..VXKH71,80..Z202203-202408

main12361-F4020iV35AFTS..VXKH71,80..L,S;V35AFTS..VXKH70,75,76,85202203

12362AINSULATOR, ENGINE MOUNTING, FRONT LH

main12362-F4012iV35AFTS..VXKA71..Z;V35AFTS..VXKA70,75..DCB..L¥9,100202111-202408

main12362-F4012iV35AFTS..VXKA71,72,77..L,S;V35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA70,75,76..CMAX¥9,100202111

main12362-F4020iV35AFTS..VXKH71,80..Z202203-202408

main12362-F4020iV35AFTS..VXKH71,80..L,S;V35AFTS..VXKH70,75,76,85202203

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-F4010iV35AFTS..VXKA76,77;V35AFTS..VXKA75..CMAX;V35AFTS..VXKA75..DCB..S202111

main12371-F4010iV35AFTS..VXKA75..DCB..L202111-202408

main12371-F4020iV35AFTS..VXKA70..DCB..S;V35AFTS..VXKA70,VXKH70..CMAX;V35AFTS..VXKA71,72,VXKH71,80..L,S202111

main12371-F4020iV35AFTS..VXKA70..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

main12371-F4030iV35AFTS..VXKH75,76,85202203

12501BRACKET SUB-ASSY, ALTERNATOR

main12501-F4010iV35AFTS..VXKA71..Z;V35AFTS..VXKA70,75..DCB..L202111-202408

main12501-F4010iV35AFTS..VXKA71,72,77..L,S;V35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA70,75,76..CMAX202111

90105A0355

main90105-A0355

90119A0439

main90119-A0439

90119A0527

main90119-A0527

90119A0555

main90119-A0555

90119A0601

main90119-A0601

9025313017

main90253-13017¥140

91552F1035

main91552-F1035¥120

13 parts on this diagram · 2 diagrams in section
