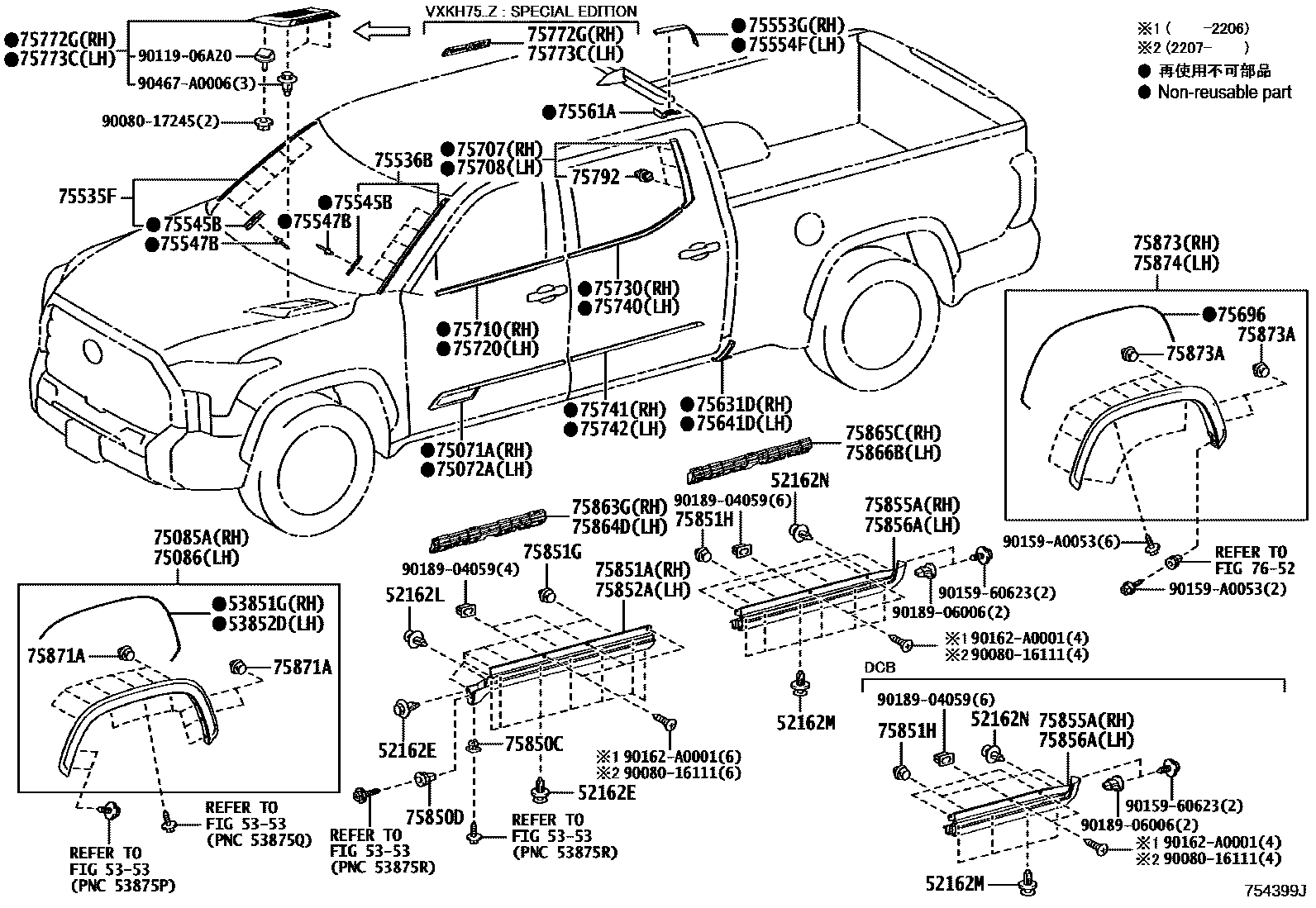

Toyota TUNDRA/SEQUOIA — MOULDING

0001 1 0002 1 0003 1

52162EPIECE, REAR BUMPER

main52161-02020iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥200202111-202408

52162LPIECE, REAR BUMPER

main52161-02020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z¥200202111-202408

52162MPIECE, REAR BUMPER

main52161-02020iVXKA71,VXKH71..Z¥200202111-202408

52162NPIECE, REAR BUMPER

main52161-02020iVXKA71,VXKH71..Z;VXKA70,75..DCB..L¥200202111-202408

5353

53851GPAD, FRONT WHEEL OPENING EXTENSION, RH

main53851-0C080iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

main53851-0C080iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

SR&TIRE & DISC WHEEL-245/75R18, 7.5J

53852DPAD, FRONT WHEEL OPENING EXTENSION, LH

main53851-0C080iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

SR&TIRE & DISC WHEEL-245/75R18, 7.5J

main53851-0C080iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH

main75071-0C020iVXKH75..U202203-202303

sub75071-0C021

main75071-0C021iVXKH85..Z202303

ULTRA SUV

main75071-0C040iVXKA70,71,75,76,VXKH7#,8#..Z202111-202303

sub75071-0C041

main75071-0C041iVXKA70,71,75,76,VXKH7#,8#..Z202303-202309

main75071-AN020iVXKA70,75,76,VXKH70,75,76,85..Z202309-202409

main75071-AN030iVXKA70,75,76,VXKH70,75,76,85..Z202409

75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH

main75072-0C020iVXKH75..U202203-202303

sub75072-0C021

main75072-0C021iVXKH75..U202303

ULTRA SUV

main75072-0C040iVXKA70,71,75,76,VXKH7#,8#..Z202111-202303

main75072-0C041iVXKA70,71,75,76,VXKH7#,8#..Z202303-202309

main75072-AN020iVXKA71,VXKH71,80..Z202309-202409

main75072-AN030iVXKA70,75,76,VXKH70,75,76,85..Z202409

75085AMOULDING SUB-ASSY, FRONT FENDER WHEEL OPENING, RH

main75085-0C900iVXKH75..U¥6,200202203

main75085-0C901iVXKA70,71,75,76,VXKH7#,8#..(CMAX,SRF)..L202111

1794&TIRE & DISC WHEEL-265/60R20, 8J

sub75085-0C900¥6,200

main75085-0C901iVXKA70,VXKH70..Z202111-202408

1794

sub75085-0C900¥6,200

main75085-0C902iVXKA71,VXKH71,80..Z202111-202408

sub75085-0C900¥6,200

main75085-0C903iVXKA75,76,VXKH75,76..CMAX..L202111

SR&TIRE & DISC WHEEL-245/75R18, 7.5J

main75085-0C903iVXKA7#,VXKH8#..S202111

TRD OFFROAD PACKAGE&TIRE & DISC WHEEL-265/70R18, 7.5J

main75085-0C903iVXKA7#,VXKH8#..S202111

TRD OFFROAD PACKAGE&TIRE & DISC WHEEL-265/60R20, 8.5J

75086MOULDING SUB-ASSY, FRONT FENDER WHEEL OPENING, LH

main75086-0C900iVXKH75..U¥6,200202203

main75086-0C901iVXKA71,VXKH71..Z202111-202408

1794

sub75086-0C900¥6,200

main75086-0C901iVXKA70,71,75,76,VXKH7#,8#..(CMAX,SRF)..L202111

1794&TIRE & DISC WHEEL-265/60R20, 8J

sub75086-0C900¥6,200

main75086-0C902iVXKA70,75,76,VXKH70,75,76,85..Z202111-202408

sub75086-0C900¥6,200

main75086-0C903iVXKA75,76,VXKH75,76..CMAX..L202111

TRD OFFROAD PACKAGE&TIRE & DISC WHEEL-265/60R20, 8.5J

main75086-0C903iVXKA7#,VXKH8#..S202111

SR&TIRE & DISC WHEEL-245/75R18, 7.5J

main75086-0C903iVXKA7#,VXKH8#..S202111

TRD OFFROAD PACKAGE&TIRE & DISC WHEEL-265/70R18, 7.5J

75535FMOULDING, WINDSHIELD, OUTSIDE LOWER RH

main75504-0C010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z¥2,110202111-202408

75536BMOULDING, WINDSHIELD, OUTSIDE LOWER LH

main75505-0C020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z¥2,110202111-202408

75545BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1

main75545-0E020iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥210202111-202408

75547BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3

main75547-51021iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥210202111-202408

75553GMOULDING, ROOF DRIP SIDE, REAR RH

main75553-0C050iVXKA71,VXKH71..L,S;VXKA70,75,76,VXKH70,75,76..CMAX¥810202111-202408

main75553-0C060iVXKA70,75..DCB..L202111-202408

75554FMOULDING, ROOF DRIP SIDE, REAR LH

main75554-0C050iVXKA71,VXKH71..Z¥810202111-202408

main75554-0C060iVXKA70,72,75,77..DCB..S202111-202408

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-0C010iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71..L,S;VXKA70,75,76,VXKH70,75,76..CMAX¥60202111-202408

75631DMOULDING, SIDE PANEL, LOWER NO.1 RH

main75631-0C080iVXKA70,75,VXKH70,75..CMAX¥810202111

main75631-0C090iVXKA76,VXKH76;VXKA70,75..DCB..S;VXKA71,72,77,VXKH71..L,S202111-202408

75641DMOULDING, SIDE PANEL, LOWER NO.1 LH

main75641-0C080iVXKA70,75,VXKH70,75..CMAX¥810202111

main75641-0C090iVXKA71,VXKH71..Z;VXKA70,75..DCB..L202111-202408

75696PAD, BODY OUTSIDE MOULDING, NO.1

main75696-0C030iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71..L,S;VXKA70,75,76,VXKH70,75,76..CMAX202111

SR&TIRE & DISC WHEEL-245/75R18, 7.5J

main75696-0C030iVXKA71,VXKH71..Z;VXKA70,75..DCB..L202111-202408

75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH

main75707-0C010iVXKA70,71,75,76,VXKH7#..CMAX..(L,U)¥2,400202111

1794

main75707-0C020iVXKA70,75,76,VXKH70,75,76..Z202111-202408

main75763-0C050iVXKA70,75..DCB..L202111-202408

75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH

main75708-0C010iVXKA70,71,75,76,VXKH7#..CMAX..(L,U)¥2,400202111

1794

main75708-0C020iVXKA71,VXKH71..Z202111-202408

main75764-0C050iVXKA7#..S202111-202408

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-0C020iVXKA7#..S202111-202408

main75710-0C030iVXKA70,75,76,VXKH70,75,76..Z202111

1794

main75710-0C040iVXKA71,VXKH71,80..Z202111-202408

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-0C020iVXKA7#..S202111-202408

main75720-0C030iVXKH8#..L,S;VXKA70,71,75,76,VXKH7#..CMAX..(L,U)¥4,300202111

1794

main75720-0C040iVXKA70,75,76,VXKH70,75,76,85..Z202111-202408

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-0C030iVXKA70,71,75,76..CMAX..S202111

main75730-0C040iVXKA70,75..DCB..L202111-202408

main75730-0C050iVXKA70,71,75,76,VXKH7#..CMAX..(L,U)¥4,290202111

1794

main75730-0C060iVXKA71,VXKH71..Z202111-202408

main75730-0C130iVXKH8#..L,S202207

ULTRA SUV

main75730-0C140iVXKH85..L202207

TRD PRO PACKAGE

main75730-0C140iVXKH80..Z202207-202408

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-0C030iVXKA70,71,75,76..CMAX..S202111

main75740-0C040iVXKA70,75..DCB..L202111-202408

main75740-0C050iVXKA70,71,75,76,VXKH7#..CMAX..(L,U)¥4,300202111

1794

main75740-0C060iVXKA71,VXKH71..Z202111-202408

main75740-0C130iVXKH8#..L,S202207

ULTRA SUV

main75740-0C140iVXKH85..Z202207

TRD PRO PACKAGE

main75740-0C140iVXKH80..Z202207-202408

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-0C120iVXKH75..U202203-202303

PLATED

sub75741-0C121

main75741-0C121iVXKH75..U202303

PLATED

main75741-0C140iVXKA70,71,75,76,VXKH7#..Z202111-202303

NO PAINT REQ.

sub75741-0C141

main75741-0C141iVXKA70,71,75,76,VXKH7#..Z202303-202309

NO PAINT REQ.

main75741-0C190iVXKH8#..Z202207-202303

NO PAINT REQ.

sub75741-0C191

main75741-0C191iVXKH8#..Z202303-202309

NO PAINT REQ.

main75741-AN010iVXKA70,75,76,VXKH70,75,76..Z202409

NO PAINT REQ.

main75741-AN020iVXKH80..Z202309-202409

NO PAINT REQ.

main75741-AN030iVXKA71,VXKH71..Z202309-202409

NO PAINT REQ.

main75741-AN050iVXKH85..Z202409

NO PAINT REQ.

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-0C120iVXKH75..U202203-202303

PLATED

sub75742-0C121

main75742-0C121iVXKH75..U202303

PLATED

main75742-0C140iVXKA70,71,75,76,VXKH7#..Z202111-202303

NO PAINT REQ.

sub75742-0C141

main75742-0C141iVXKA70,71,75,76,VXKH7#..Z202303-202309

NO PAINT REQ.

main75742-0C190iVXKH8#..Z202207-202303

NO PAINT REQ.

sub75742-0C191

main75742-0C191iVXKH8#..Z202303-202309

NO PAINT REQ.

main75742-AN010iVXKA70,75,76,VXKH70,75,76..Z202409

NO PAINT REQ.

main75742-AN020iVXKH80..Z202309-202409

NO PAINT REQ.

main75742-AN030iVXKA71,VXKH71..Z202309-202409

NO PAINT REQ.

main75742-AN050iVXKH85..Z202409

NO PAINT REQ.

75772GMOULDING, HOOD, REAR RH

main75772-0C050iVXKH7#202203-202311

sub75772-AN010

main75772-0C130iVXKH80..Z202207-202408

main75772-AN010iVXKH7#202312-202408

75773CMOULDING, HOOD, REAR LH

main75773-0C050iVXKH7#202203-202311

sub75773-AN010

main75773-0C130iVXKH85;VXKH80..L,S202207-202408

main75773-AN010iVXKH7#202312-202408

75792CLIP, DOOR WINDOW FRAME MOULDING

main90467-08225iVXKA71,VXKH71..Z;VXKA70,75..DCB..L¥60202111-202408

75850CGROMMET, NO.1

main90189-06237iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z¥100202111-202408

75850DGROMMET, NO.2

main90189-06236iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z¥100202111-202408

75851AMOULDING, ROCKER PANEL, FRONT RH

main75851-0C900iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

75851GCLIP, NO.1(FOR ROCKER PANEL MOULDING SET)

main90467-A0005iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

75851HCLIP, NO.2 (FOR ROCKER PANEL MOULDING SET)

main90467-A0005iVXKH80..Z;VXKA70,75..DCB..L202111-202408

75852AMOULDING, ROCKER PANEL, FRONT LH

main75852-0C900iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

75855AMOULDING, ROCKER PANEL, REAR RH

main75855-0C900iVXKA71,VXKH71..Z202111-202408

main75855-0C901iVXKA70,75..DCB..L202111-202408

main75855-0C902iVXKH80..Z202207-202408

75856AMOULDING, ROCKER PANEL, REAR LH

main75856-0C901iVXKA70,72,75,77..DCB..S202111-202408

main75856-0C902iVXKH80..Z202207-202408

main75856-0C904iVXKA71,VXKH71..Z202111-202408

75863GPROTECTOR, ROCKER PANEL MOULDING, RH

main75863-0C010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

75864DPROTECTOR, ROCKER PANEL MOULDING, LH

main75864-0C010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

75865CPROTECTOR, ROCKER PANEL MOULDING, NO.5

main75865-0C060iVXKA71,VXKH71..Z202111-202408

main75865-0C070iVXKH85;VXKA70,75..DCB..S;VXKA72,77,VXKH80..L,S202111-202408

75866BPROTECTOR, ROCKER PANEL MOULDING, NO.6

main75866-0C060iVXKA71,VXKH71..Z202111-202408

main75866-0C070iVXKH85;VXKA70,75..DCB..S;VXKA72,77,VXKH80..L,S202111-202408

75871ACLIP (FOR FRONT FENDER MOULDING NO.1)

main90467-A0006iVXKA70,72,75,77..S¥80202111

SR&TIRE & DISC WHEEL-245/75R18, 7.5J

main90467-A0006iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z¥80202111-202408

75873MOULDING, QUARTER PANEL WHEEL OPENING, RH

main75087-0C900iVXKH75..U¥7,200202203

main75087-0C901iVXKA71,VXKH71..Z202111-202408

sub75087-0C900¥7,200

main75087-0C902iVXKA75,76,VXKH75,76..Z202111

1794&TIRE & DISC WHEEL-265/60R20, 8J

sub75087-0C900¥7,200

main75087-0C902iVXKA70,75..DCB..L202111-202408

1794

sub75087-0C900¥7,200

main75087-0C903iVXKA7#..S202111

TRD OFFROAD PACKAGE&TIRE & DISC WHEEL-265/60R20, 8.5J

main75087-0C903iVXKA7#..S202111

SR&TIRE & DISC WHEEL-245/75R18, 7.5J

main75087-0C903iVXKA7#..S202111

TRD OFFROAD PACKAGE&TIRE & DISC WHEEL-265/70R18, 7.5J

main75873-0C200iVXKH85;VXKH80..L,S202207-202408

75873ACLIP (FOR QUARTER OPENING MOULDING)

main90467-A0006iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71..L,S;VXKA70,75,76,VXKH70,75,76..CMAX¥80202111

SR&TIRE & DISC WHEEL-245/75R18, 7.5J

main90467-A0006iVXKA71,VXKH71..Z;VXKA70,75..DCB..L¥80202111-202408

75874MOULDING, QUARTER PANEL WHEEL OPENING, LH

main75088-0C900iVXKH75..U¥7,200202203

main75088-0C901iVXKA71,VXKH71..Z202111-202408

sub75088-0C900¥7,200

main75088-0C902iVXKA75,76,VXKH75,76..Z202111

1794&TIRE & DISC WHEEL-265/60R20, 8J

sub75088-0C900¥7,200

main75088-0C902iVXKA70,75..DCB..L202111-202408

1794

sub75088-0C900¥7,200

main75088-0C903iVXKA7#..S202111

SR&TIRE & DISC WHEEL-245/75R18, 7.5J

main75088-0C903iVXKA7#..S202111

TRD OFFROAD PACKAGE&TIRE & DISC WHEEL-265/70R18, 7.5J

main75088-0C903iVXKA7#..S202111

TRD OFFROAD PACKAGE&TIRE & DISC WHEEL-265/60R20, 8.5J

main75874-0C200iVXKH80..Z202207-202408

7652

9008016111

main90080-16111

9008017245

main90080-17245

9011906A20

main90119-06A20¥100

9015960623

main90159-60623¥60

90159A0053

main90159-A0053

90162A0001

main90162-A0001¥60

9018904059

main90189-04059¥70

9018906006

main90189-06006¥100

90467A0006

main90467-A0006¥80

58 parts on this diagram · 3 diagrams in section
