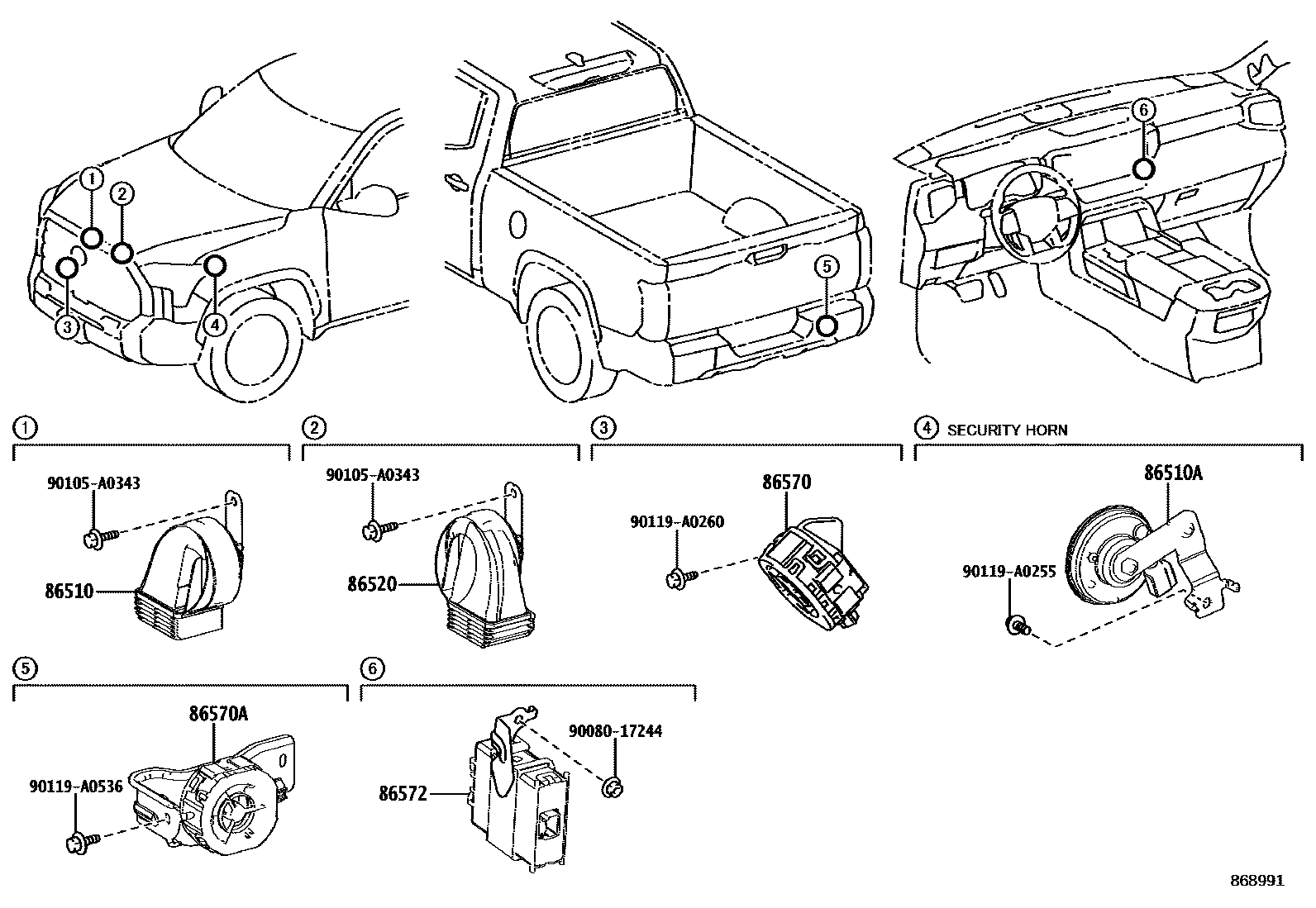

Toyota TUNDRA/SEQUOIA — HORN

0001 1 0002 1

86510HORN ASSY, HIGH PITCHED

main86510-0E040iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥2,270202111

main86510-0E040iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z¥2,270202111-202408

86510AHORN ASSY, SECURITY

main86560-0C010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

main86560-0C010iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

86520HORN ASSY, LOW PITCHED

main86520-0E020iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥2,270202111

main86520-0E020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z¥2,270202111-202408

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-34040iVXKH7#,8#202203-202404

main86570-34041iVXKH71,80..Z202405-202408

main86570-34041iVXKH71,80..L,S;VXKH70,75,76,85202405

86570ASPEAKER ASSY, VEHICLE APPROACHING, NO.2

main86570-34020iVXKH7#202203-202404

sub86570-34021

main86570-34021iVXKH71..L;VXKH70,75,76202405

main86570-34021iVXKH71..Z202405-202408

main86570-34030iVXKH8#202207-202402

sub86570-34031

main86570-34031iVXKH80..Z202403-202408

main86570-34031iVXKH85;VXKH80..L,S202403

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-34030iVXKH7#..L202203-202212

sub86572-34031

main86572-34031iVXKH7#..L202301

main86572-34040iVXKH8#..L,S202207-202212

sub86572-34041

main86572-34041iVXKH8#..L,S202301

main86572-34050iVXKH8#..Z202207-202212

sub86572-34051

main86572-34051iVXKH85..Z202301

main86572-34051iVXKH80..Z202301-202408

main86572-34060iVXKH7#..Z202203-202212

TRD PRO PACKAGE

sub86572-34061

main86572-34061iVXKH71..Z202301-202408

main86572-34061iVXKH70,75,76..Z202301

TRD PRO PACKAGE

main86572-34070iVXKH75..U202203-202212

sub86572-34071

main86572-34071iVXKH75..U202301

9008017244

main90080-17244¥80

90105A0343

main90105-A0343

90119A0255

main90119-A0255

90119A0260

main90119-A0260

90119A0536

main90119-A0536

11 parts on this diagram · 2 diagrams in section
