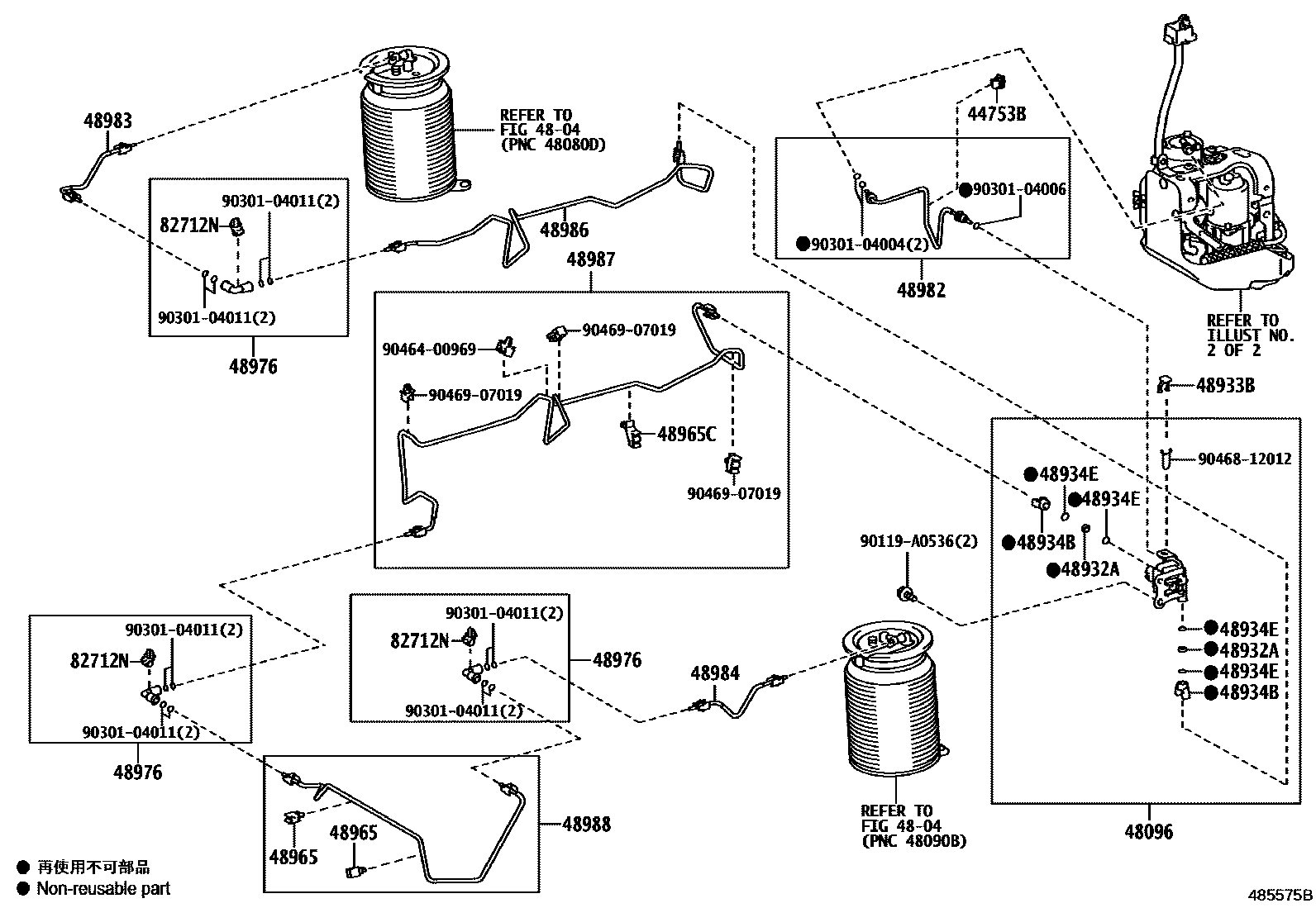

Toyota TUNDRA/SEQUOIA — HEIGHT CONTROL (AUTO-LEVELER)

0001 1 0002 1 0003 1

44753BCLAMP, HEIGHT CONTROL TUBE, NO.1

4804

48096VALVE SUB-ASSY, HEIGHT CONTROL, NO.2

main48096-34020

48932APLATE, HEIGHT CONTROL TUBE

48933HOLDER, AIR CONNECTOR CLIP

main48933-30010¥100

48933BHOLDER, REAR HEIGHT CONTROL AIR CONNECTOR CLIP

48934BCONNECTOR, HEIGHT CONTROL TUBE

48934ERING, O(FOR HEIGHT CONTROL TUBE CONNECTOR)

48965CLAMP, HEIGHT CONTROL TUBE

main48965-34020

main48965-34040

48965CCLAMP, HEIGHT CONTROL TUBE, NO.1

48976WAY, HEIGHT CONTROL

main48976-34010

48982TUBE, HEIGHT CONTROL, NO.2

main48982-34030

48983TUBE, HEIGHT CONTROL, NO.3

main48983-34010

48984TUBE, HEIGHT CONTROL, NO.4

main48984-34010

48986TUBE, HEIGHT CONTROL, NO.6

main48986-34030

48987TUBE, HEIGHT CONTROL, NO.7

main48987-34030

48988TUBE, HEIGHT CONTROL, NO.8

main48988-34010

82712NCLAMP, WIRING HARNESS

90119A0536

main90119-A0536

9030104004

main90301-04004¥160

9030104006

main90301-04006¥160

9030104011

main90301-04011¥140

9046400969

main90464-00969

9046812012

main90468-12012¥70

9046907019

main90469-07019¥200

25 parts on this diagram · 3 diagrams in section
