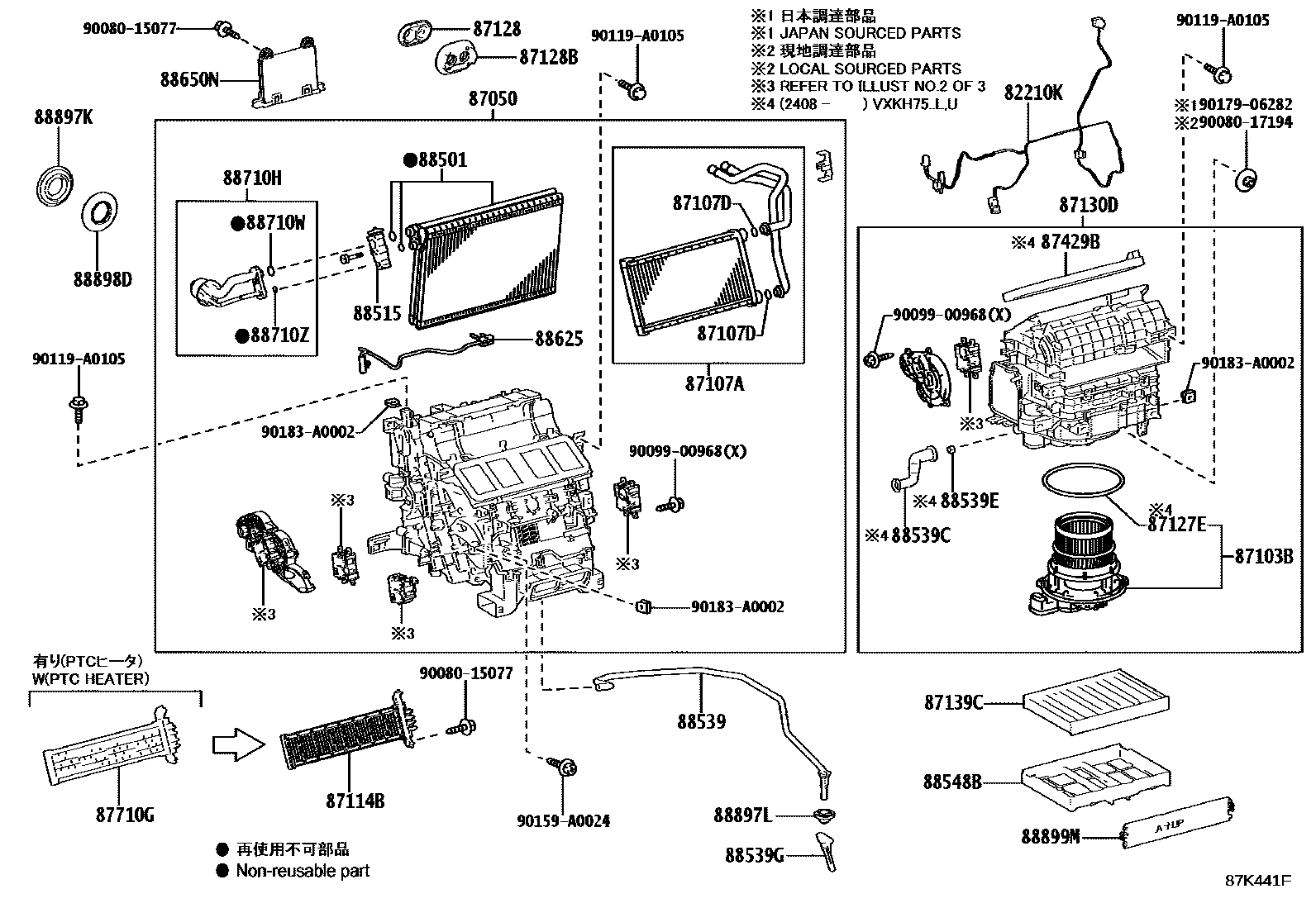

Toyota TUNDRA/SEQUOIA — HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT 0002 1FRONT DAMPER SERVO 0003 1REAR

82210KHARNESS ASSY, AIR CONDITIONER

main82210-0C050iVXKA70,72,75,77..DCB..S202111-202508

main82210-0C060iVXKA70,71,75,76..CMAX..S202111

main82210-0C070iVXKA70,75..DCB..L202111-202408

main82210-0C090iVXKH85;VXKH80..L,S;VXKA71,VXKH71..L;VXKA70,75,76,VXKH70,75,76..CMAX..(L,U,Z)202111

SR5-PREMIUM

main82210-0C090iVXKA71,VXKH71,80..Z202111-202408

87050RADIATOR ASSY, AIR CONDITIONER

main87050-0C180iVXKA70,71,75,76..CMAX..S202111-202409

main87050-0C190iVXKA70,72,75,77..DCB..S202111-202409

main87050-0C200iVXKA71..Z202111-202408

main87050-0C200iVXKA71..L;VXKA70,75,76..CMAX..(L,Z)202111-202409

SR5-PREMIUM

main87050-0C210iVXKA70,75..DCB..L202111-202408

main87050-0C220iVXKH71..Z202203-202409

main87050-0C230iVXKH85;VXKH80..L,S202207-202409

sub87050-AN120

main87050-AN070iVXKA70,71,75,76..CMAX..S202409

main87050-AN080iVXKA70,72,75,77..DCB..S202409-202508

main87050-AN090iVXKA70,71,75,76..CMAX..S202409

HERITAGE PACKAGE

main87050-AN090iVXKA75..CMAX..S202409

SR5-PREMIUM

main87050-AN110iVXKH71..L;VXKH70,75,76202409

main87050-AN120iVXKH85;VXKH80..L,S202409

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0C090iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202409

sub87103-AN010

main87103-AN010iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202409

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-0C070iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

87107DRING, O (FOR HEATER RADIATOR UNIT)

main96761-19016iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z¥160202111-202408

ID=15.8,OD=19.6

87114BCOVER, HEATER

main87114-30010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202409

87127EPACKING, HEATER

87128GROMMET, HEATER

main90480-A0004iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z¥180202111-202408

87128BGROMMET, HEATER, NO.2

main87128-28020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

87130DBLOWER ASSY

main87130-0C080iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202409

main87130-0C081iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202409

87139CFILTER, CLEAN AIR

main87139-0C010iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥5,800202111-202408

POLLEN FILTER

87429BPACKING, COOLER UNIT, NO.1

87710GQUICK HEATER ASSY

main87710-30050iVXKA70,75..DCB..S;VXKA75..CMAX..(L,S);VXKA72,76,77,VXKH75,76..L,S202409

STEERING WHEEL-TRD, WITH(HEATER)

main87710-30050iVXKH85;VXKH80..L,S;VXKA70,75,76,VXKH70,75,76..U,Z202409

CANADA SPEC

main87710-30050iVXKH85;VXKH80..L,S;VXKA70,75,76,VXKH70,75,76..U,Z202409

STEERING WHEEL-LEATHER, WITH(HEATER)

main87710-30050iVXKH85;VXKH80..L,S;VXKA70,75,76,VXKH70,75,76..U,Z202409

CANADA SPEC&STEERING WHEEL-LEATHER, WITH(HEATER)

main87710-30050iVXKH85;VXKH80..L,S;VXKA70,75,76,VXKH70,75,76..U,Z202409

CANADA SPEC&STEERING WHEEL-TRD, WITH(HEATER)

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0C160iVXKA71..Z;VXKA70,75..DCB..L202111-202408

main88501-0C170iVXKH71..Z202203-202408

main88501-0C180iVXKH80..Z202207-202408

88515VALVE, COOLER EXPANSION

main88515-0C140iVXKA71..Z;VXKA70,75..DCB..L202111-202408

main88515-0E160iVXKH71,80..L,S;VXKH70,75,76,85202203-202408

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-0C080iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

88539CHOSE, COOLER UNIT DRAIN, NO.2

88539EHOSE, COOLER UNIT DRAIN, NO.3

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main88897-0C090iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

88548BCASE, AIR FILTER

main88899-0C040iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

88625THERMISTOR, COOLER, NO.1

main88620-74010iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-0C460iVXKA7#,VXKH7#202111-202308

main88650-0C470iVXKH8#202207-202308

main88650-AN010iVXKA71,VXKH71..Z;VXKA70,75..DCB..L202308-202508

main88650-AN020iVXKH80..Z202308-202508

88710HTUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-0C870iVXKA71,VXKH71..Z;VXKA70,75..DCB..L202111-202408

main88710-0C890iVXKH85;VXKH80..L,S202207-202408

88710WRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90069-08009iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥350202111-202408

ID=13.4,OD=18.2

88710ZRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90069-08011iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥320202111-202408

ID=6.7,OD=10.3

88897KGROMMET, (FOR COOLER PIPE)

main88897-0C080iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

88897LGROMMET (FOR DRAIN HOSE)

main88888-06020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

88898DGROMMET

main88899-11020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z¥0202111-202408

88899MPLATE, COVER(FOR AIR FILTER)

main88899-0C050iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

9008015077

main90080-15077¥60

9008017194

main90080-17194

9009900968

main90099-00968

90119A0105

main90119-A0105

90159A0024

main90159-A0024

9017906282

main90179-06282¥90

90183A0002

main90183-A0002

36 parts on this diagram · 3 diagrams in section
