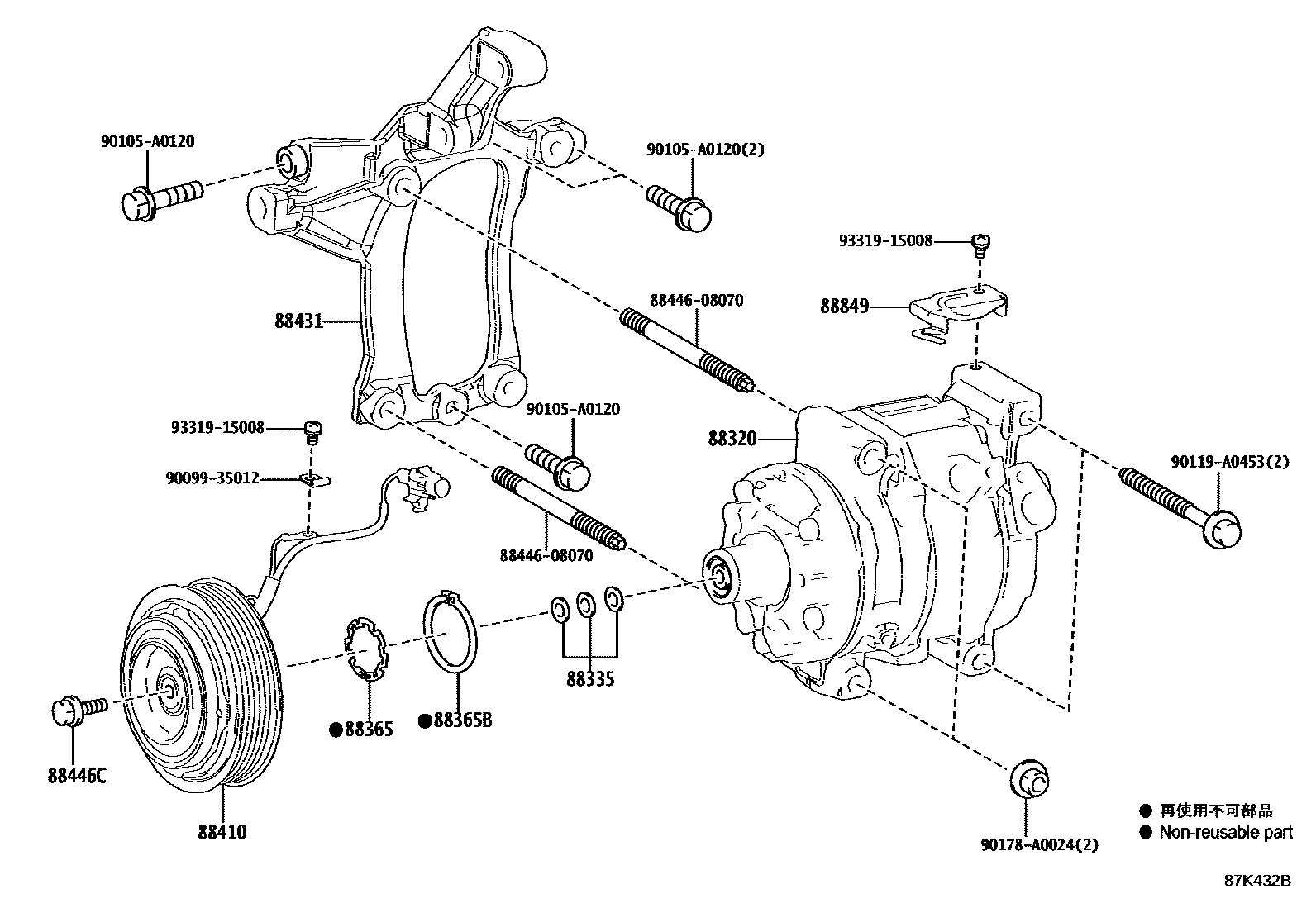

Toyota TUNDRA/SEQUOIA — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88320COMPRESSOR ASSY, COOLER

main88320-0C210iVXKA7#202111-202308

sub88320-34040

main88320-34040iVXKA71..Z;VXKA70,75..DCB..L202308-202408

88335GASKET KIT, OVERHAUL

main88335-14020iVXKA71..Z;VXKA70,75..DCB..L202111-202408

88365RING, SNAP

main90099-07065iVXKA71..Z;VXKA70,75..DCB..L¥90202111-202408

88365BRING, SNAP, NO.2

main90099-07114iVXKA71..Z;VXKA70,75..DCB..L202111-202408

88410CLUTCH ASSY, MAGNET

main88410-0C150iVXKA7#202111-202308

sub88410-34050

main88410-34050iVXKA71..Z;VXKA70,75..DCB..L202308-202408

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main12502-70020iVXKA7#¥9,200202111-202202

sub12502-70021¥8,400

main12502-70021iVXKA71,72,77..L,S;VXKA70,75..DCB..S;VXKA70,75,76..CMAX¥8,400202203-202408

main12502-70030iVXKH71,80..L,S;VXKH70,75,76,85202203-202408

88446CBOLT, MAGNET CLUTCH SETTING

main90099-04349iVXKA71..Z;VXKA70,75..DCB..L202111-202408

88849BRACKET, COOLER COMPRESSOR, NO.2

main88849-02010iVXKA71..Z;VXKA70,75..DCB..L202111-202408

8844608070BOLT, IDLE PULLEY

main88446-08070¥170

9009935012

main90099-35012

90105A0120

main90105-A0120

90119A0453

main90119-A0453

90178A0024

main90178-A0024

9331915008

main93319-15008¥170

14 parts on this diagram · 2 diagrams in section
