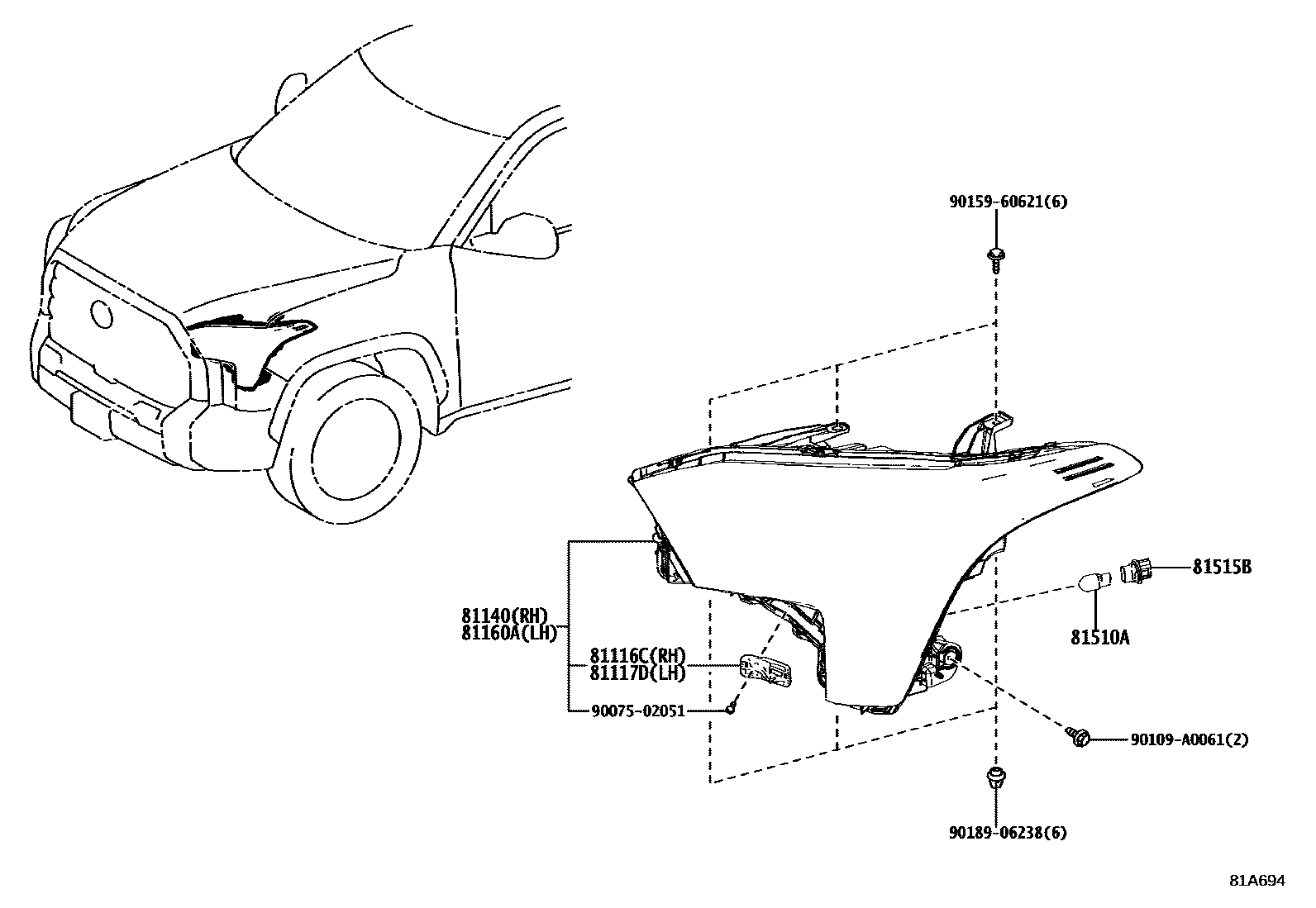

Toyota TUNDRA/SEQUOIA — HEADLAMP

0001 1TURN SIGNAL LAMP=BULB 0002 1TURN SIGNAL LAMP=LED

81116CBRACKET, HEADLAMP, RH

main81146-0C230iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z¥900202111-202408

81117DBRACKET, HEADLAMP, LH

main81186-0C230iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

81140UNIT ASSY, HEADLAMP LED, RH

main81140-0C230iVXKA70,75..DCB..L¥65,900202111-202408

81160AUNIT ASSY, HEADLAMP LED, LH

main81160-0C230iVXKA70,75..DCB..L202111-202408

81510ABULB, FRONT TURN SIGNAL & PARKING LAMP

main90981-15024iVXKA70,75..DCB..L¥580202111-202408

12V 28/8W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81128-06470iVXKA70,75..DCB..L¥890202111-202408

9007502051

main90075-02051¥60

90109A0061

main90109-A0061

9015960621

main90159-60621¥60

9018906238

main90189-06238¥100

10 parts on this diagram · 2 diagrams in section
