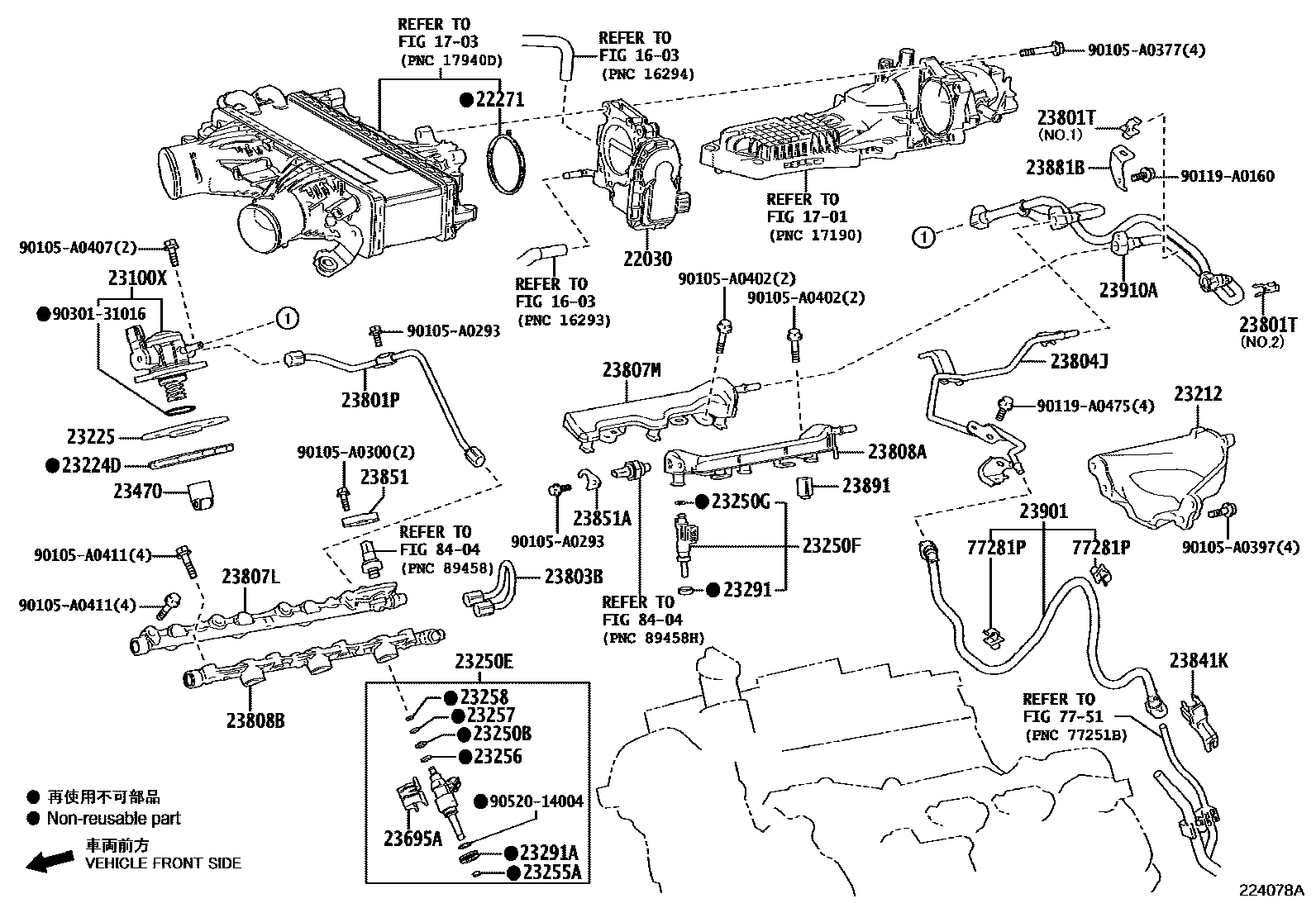

Toyota TUNDRA/SEQUOIA — FUEL INJECTION SYSTEM

0001 1 0002 1

1603

1701

1703

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-F4010iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

main22030-F4010iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

22271GASKET, THROTTLE BODY

main22271-70070iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥510202111

main22271-70070iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z¥510202111-202408

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23101-F4010iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

main23101-F4010iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

23212BRACKET, FUEL PIPE PROTECTOR

main23212-F4010iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

main23212-F4010iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

23224DGASKET, FUEL PUMP SPACER

main23224-F0011iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

main23224-F0011iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

23225SPACER, FUEL PUMP

main23225-70010iV35AFTS..VXKA71..Z;V35AFTS..VXKA70,75..DCB..L¥880202111-202408

main23225-70010iV35AFTS..VXKA71,72,77..L,S;V35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA70,75,76..CMAX¥880202111

main23225-F4010iV35AFTS..VXKH71,80..Z202203-202408

main23225-F4010iV35AFTS..VXKH71,80..L,S;V35AFTS..VXKH70,75,76,85202203

23250BRING, O(FOR FUEL INJECTOR)

main90301-A0040iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

main90301-A0040iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

23250EINJECTOR ASSY, FUEL(FOR DIRECT)

main23209-F4010-01iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

MARK 1,REFER REPAIR MANUAL

main23209-F4010-01iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

MARK 1,REFER REPAIR MANUAL

main23209-F4010-02iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

MARK 2,REFER REPAIR MANUAL

main23209-F4010-02iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

MARK 2,REFER REPAIR MANUAL

main23209-F4010-03iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

MARK 3,REFER REPAIR MANUAL

main23209-F4010-03iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

MARK 3,REFER REPAIR MANUAL

main23209-F4010-04iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

MARK 4,REFER REPAIR MANUAL

main23209-F4010-04iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

MARK 4,REFER REPAIR MANUAL

main23209-F4010-05iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

MARK 5,REFER REPAIR MANUAL

main23209-F4010-05iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

MARK 5,REFER REPAIR MANUAL

main23209-F4010-06iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

MARK 6,REFER REPAIR MANUAL

main23209-F4010-06iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

MARK 6,REFER REPAIR MANUAL

main23209-F4010-07iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

MARK 7,REFER REPAIR MANUAL

main23209-F4010-07iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

MARK 7,REFER REPAIR MANUAL

main23209-F4010-08iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

MARK 8,REFER REPAIR MANUAL

main23209-F4010-08iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

MARK 8,REFER REPAIR MANUAL

main23209-F4010-09iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

MARK 9,REFER REPAIR MANUAL

main23209-F4010-09iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

MARK 9,REFER REPAIR MANUAL

23250FINJECTOR ASSY, FUEL(FOR PORT)

main23209-F9070iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

main23209-F9070iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

23250GRING, O, NO.2(FOR FUEL INJECTOR)

main90301-07037iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥140202111

(J)

main90301-07037iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z¥140202111-202408

(J)

main90301-A0036iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

(L)

main90301-A0036iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

(L)

23255ASEAL, FUEL INJECTOR

main23255-F0010iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

main23255-F0010iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-F0010iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

main23256-F0010iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

23257RING, FUEL INJECTOR BACK-UP, NO.2

main23257-70010iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z¥0202111-202408

main23257-70010iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥0202111

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-70010iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥0202111

main23258-70010iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z¥0202111-202408

23291INSULATOR, INJECTOR VIBRATION

main23291-0V020iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

main23291-0V020iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

23291AINSULATOR, INJECTOR VIBRATION

main23291-31020iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z¥430202111-202408

main23291-31020iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥430202111

23470LIFTER ASSY, FUEL PUMP

main23470-F0010iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

main23470-F0010iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

23695ACLAMP, NOZZLE HOLDER

main23695-36010iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

main23695-36010iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-70150iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥3,460202111

main23801-70150iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z¥3,460202111-202408

23801TCLAMP OR CLIP, FUEL HOSE(FOR EFI)

main23841-47050iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z¥170202111-202408

NO.1

main23841-47050iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥170202111

NO.1

main23841-70050iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z¥110202111-202408

NO.2

main23841-70050iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥110202111

NO.2

23803BPIPE SUB-ASSY, FUEL, NO.3

main23803-70060iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥2,390202111

main23803-70060iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z¥2,390202111-202408

23804JPIPE SUB-ASSY, FUEL INLET

main23804-70010iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z¥4,530202111-202408

main23804-70010iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥4,530202111

23807LPIPE SUB-ASSY, FUEL DELIVERY, RH NO.1

main23807-F4010iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

main23807-F4010iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

23807MPIPE SUB-ASSY, FUEL DELIVERY, RH NO.2

main23807-70100iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z¥6,700202111-202408

main23807-70100iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥6,700202111

23808APIPE SUB-ASSY, FUEL DELIVERY, LH NO.1

main23808-70020iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z¥6,700202111-202408

main23808-70020iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥6,700202111

23808BPIPE SUB-ASSY, FUEL DELIVERY, LH NO.2

main23808-F4010iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

main23808-F4010iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

23841KCLAMP, FUEL PIPE

main23841-21050iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z¥220202111-202408

main23841-21050iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥220202111

23851HOLDER, FUEL PRESSURE SENSOR, NO.1

main23851-F2010iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

main23851-F2010iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

23851AHOLDER, FUEL PRESSURE SENSOR, NO.2

main23851-F4010iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

main23851-F4010iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

23881BBRACKET, FUEL HOSE

main23881-F4010iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

main23881-F4010iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

23891SPACER, FUEL DELIVERY

main23891-70010iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z¥260202111-202408

main23891-70010iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥260202111

23901TUBE SUB-ASSY, FUEL

main23901-F4010iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

main23901-F4010iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

23910ATUBE SUB-ASSY, FUEL

main23901-F4020iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

main23901-F4020iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

77281PCLAMP, FUEL HOSE

main23841-47050iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z¥170202111-202408

main23841-47050iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥170202111

7751

8404

90105A0293

main90105-A0293

90105A0300

main90105-A0300

90105A0377

main90105-A0377

90105A0397

main90105-A0397

90105A0402

main90105-A0402

90105A0407

main90105-A0407

90105A0411

main90105-A0411

90119A0160

main90119-A0160

90119A0475

main90119-A0475

9030131016

main90301-31016¥0

9052014004

main90520-14004¥0

50 parts on this diagram · 2 diagrams in section
