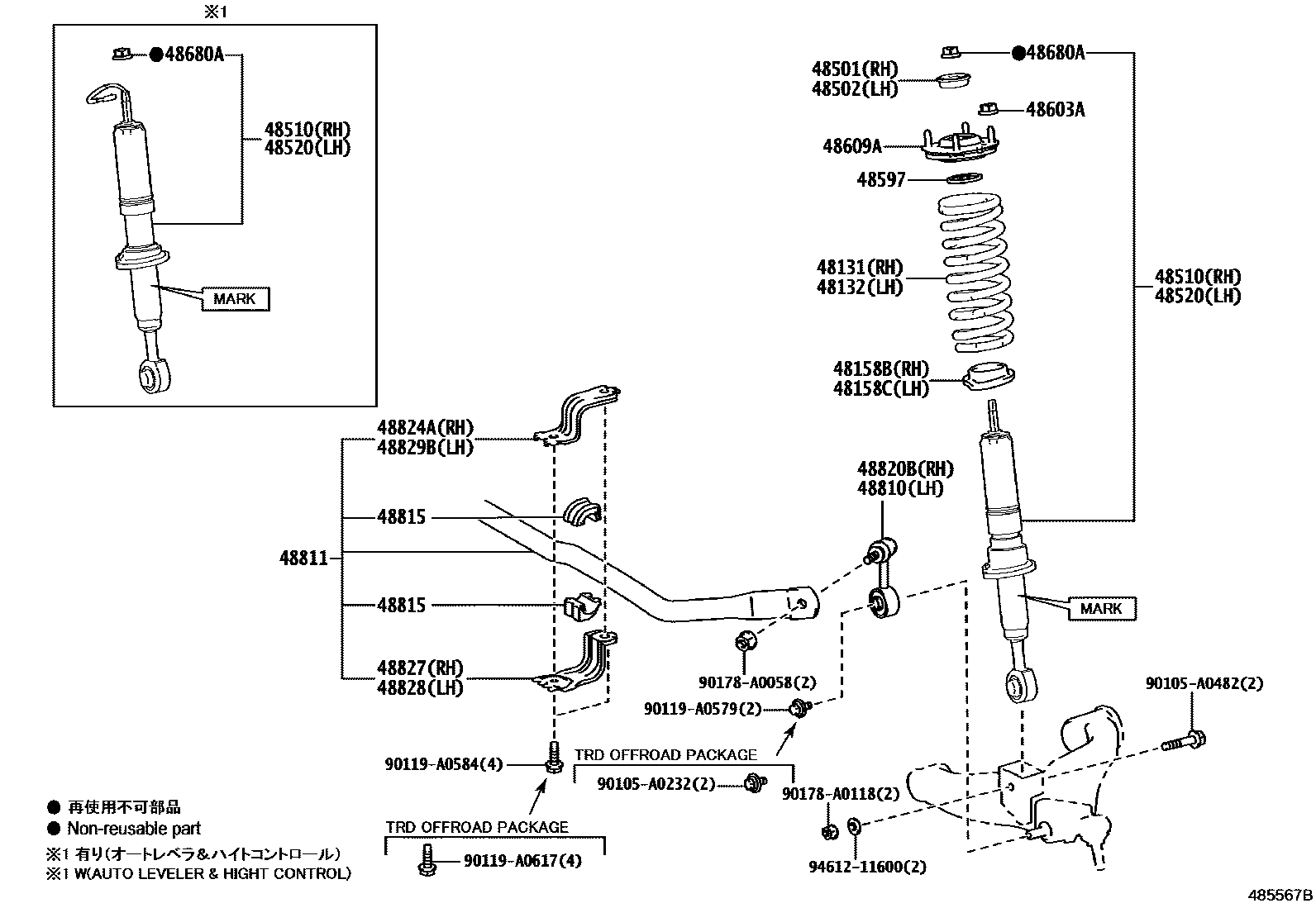

Toyota TUNDRA/SEQUOIA — FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-0CC50iVXKH70..Z;VXKH71..L202203

main48131-0CC50iVXKH71..Z202203-202408

main48131-0CC90iVXKA76202111

3" LIFT KIT PACKAGE

main48131-0CC90iVXKA76202111

TRD OFFROAD PACKAGE&3" LIFT KIT PACKAGE

main48131-0CD10iVXKA70..DCB..L202111-202408

main48131-0CD10iVXKA71..S;VXKA70..CMAX;VXKA70..DCB..S202111

main48131-0CD20iVXKA72;VXKA71..L202111

main48131-0CD20iVXKA71..Z202111-202408

main48131-0CD30iVXKH70..L202203

main48131-0CD40iVXKA75..DCB..L202111-202408

main48131-0CD40iVXKA75..CMAX;VXKA75..DCB..S202111

3" LIFT KIT PACKAGE

main48131-0CD40iVXKA75..CMAX;VXKA75..DCB..S202111

TRD OFFROAD PACKAGE&3" LIFT KIT PACKAGE

main48131-0CD40iVXKA75..CMAX;VXKA75..DCB..S202111

HERITAGE PACKAGE&3" LIFT KIT PACKAGE

main48131-0CD50iVXKH75..L202203

TRD OFFROAD PACKAGE&3" LIFT KIT PACKAGE

main48131-0CD50iVXKH75202203

TRD PRO PACKAGE

main48131-0CD50iVXKH75202203

3" LIFT KIT PACKAGE

main48131-0CD60iVXKH76202203

3" LIFT KIT PACKAGE

main48131-0CD60iVXKH76202203

TRD OFFROAD PACKAGE&3" LIFT KIT PACKAGE

main48131-0CF30iVXKH80..Z202207-202408

TRD SPORT PACKAGE

main48131-0CF30iVXKH80..L,S202207

main48131-0CF40iVXKH85..L,S202207

TRD PRO PACKAGE

main48131-0CF50iVXKH85..Z202207

48132SPRING, FRONT COIL, LH

main48131-0CC50iVXKH71..Z202203-202408

main48131-0CC50iVXKH70..Z;VXKH71..L202203

main48131-0CD10iVXKA72;VXKA71..L202111

main48131-0CD10iVXKA71..Z202111-202408

main48131-0CD30iVXKH70..L202203

main48131-0CD40iVXKA76202111

3" LIFT KIT PACKAGE

main48131-0CD40iVXKA76202111

TRD OFFROAD PACKAGE&3" LIFT KIT PACKAGE

main48131-0CD50iVXKH76202203

3" LIFT KIT PACKAGE

main48131-0CD50iVXKH76202203

TRD OFFROAD PACKAGE&3" LIFT KIT PACKAGE

main48131-0CD70iVXKA71..S;VXKA70..CMAX;VXKA70..DCB..S202111

main48131-0CD70iVXKA70..DCB..L202111-202408

main48131-0CD80iVXKA75..DCB..L202111-202408

main48131-0CD80iVXKA75..CMAX;VXKA75..DCB..S202111

3" LIFT KIT PACKAGE

main48131-0CD80iVXKA75..CMAX;VXKA75..DCB..S202111

TRD OFFROAD PACKAGE&3" LIFT KIT PACKAGE

main48131-0CD80iVXKA75..CMAX;VXKA75..DCB..S202111

HERITAGE PACKAGE&3" LIFT KIT PACKAGE

main48131-0CD90iVXKH75202203

TRD OFFROAD PACKAGE&3" LIFT KIT PACKAGE

main48131-0CD90iVXKH75..L202203

TRD PRO PACKAGE

main48131-0CD90iVXKH75..L202203

3" LIFT KIT PACKAGE

main48131-0CF30iVXKH80..S202207-202408

TRD SPORT PACKAGE

main48131-0CF30iVXKH80..L,S202207

main48131-0CF40iVXKH85..L202207

TRD PRO PACKAGE

main48131-0CF50iVXKH85..Z202207

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-0C010iVXKA75..DCB..S;VXKA75,76,VXKH75,76..CMAX..(L,S,Z)202111

TRD OFFROAD PACKAGE&3" LIFT KIT PACKAGE

main48158-0C010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-0C010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

main48158-0C010iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

TRD OFFROAD PACKAGE&3" LIFT KIT PACKAGE

48501BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH

main48501-0C010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

main48501-0C010iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

48502BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH

main48501-0C010iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

main48501-0C010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-8Z530iVXKA71..Z;VXKA70..DCB..L202111-202408

MARK 48510-0C160

main48510-8Z530iVXKA70..CMAX;VXKA71,72..L,S;VXKA70..DCB..S202111

MARK 48510-0C160

main48510-8Z531iVXKH71..L;VXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH70202111

MARK 48510-0C170,TRD OFFROAD PACKAGE&3" LIFT KIT PACKAGE

main48510-8Z531iVXKA75..DCB..S;VXKA75,76..CMAX202111

MARK 48510-0C170

main48510-8Z531iVXKA75..DCB..S;VXKA75,76..CMAX202111

MARK 48510-0C170,3" LIFT KIT PACKAGE

main48510-8Z531iVXKH71..Z;VXKA75..DCB..L202111-202408

MARK 48510-0C170

main48510-8Z534iVXKH75..L202203

MARK 48510-0C260

main48510-8Z534iVXKH75,76202203

MARK 48510-0C260,TRD PRO PACKAGE

main48510-8Z534iVXKH75,76202203

MARK 48510-0C260,3" LIFT KIT PACKAGE

main48510-8Z534iVXKH75,76202203

MARK 48510-0C260,TRD OFFROAD PACKAGE&3" LIFT KIT PACKAGE

main48510-8Z539iVXKH80..Z202207-202408

MARK 48510-0C310

main48510-8Z539iVXKH80..L,S202207

MARK 48510-0C310

main48510-8Z540iVXKH85..L202207

MARK 48510-0C320,TRD PRO PACKAGE

main48510-8Z540iVXKH85..L202207

MARK 48510-0C320

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-8Z530iVXKA71..Z;VXKA70..DCB..L202111-202408

MARK 48510-0C160

main48510-8Z530iVXKA70..CMAX;VXKA71,72..L,S;VXKA70..DCB..S202111

MARK 48510-0C160

main48510-8Z531iVXKA75..DCB..S;VXKA75,76..CMAX202111

MARK 48510-0C170,TRD OFFROAD PACKAGE&3" LIFT KIT PACKAGE

main48510-8Z531iVXKH71..Z;VXKA75..DCB..L202111-202408

MARK 48510-0C170

main48510-8Z531iVXKH71..L;VXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH70202111

MARK 48510-0C170

main48510-8Z531iVXKH71..L;VXKA75..CMAX;VXKA75..DCB..S;VXKA76,77,VXKH70202111

MARK 48510-0C170,3" LIFT KIT PACKAGE

main48510-8Z534iVXKH75,76202203

MARK 48510-0C260

main48510-8Z534iVXKH75,76..L,Z202203

MARK 48510-0C260,TRD PRO PACKAGE

main48510-8Z534iVXKH75,76..L,Z202203

MARK 48510-0C260,3" LIFT KIT PACKAGE

main48510-8Z534iVXKH75,76..L,Z202203

MARK 48510-0C260,TRD OFFROAD PACKAGE&3" LIFT KIT PACKAGE

main48510-8Z539iVXKH80..L,S202207

MARK 48510-0C310

main48510-8Z539iVXKH80..Z202207-202408

MARK 48510-0C310

main48510-8Z540iVXKH85202207

MARK 48510-0C320,TRD PRO PACKAGE

main48510-8Z540iVXKH85202207

MARK 48510-0C320

48597RETAINER, SHOCK ABSORBER CUSHION

main48597-0C030iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

main48597-0C030iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-A0082iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

main90178-A0082iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-0C050iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

main48609-0C050iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-A0019iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

main90177-A0019iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

48810LINK ASSY, FRONT STABILIZER, LH

main48810-0C020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

main48810-0C020iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

3" LIFT KIT PACKAGE

48811BAR, STABILIZER, FRONT

main48804-0C010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

main48804-0C010iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-0C030iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

main48815-0C030iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-0C020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

main48820-0C020iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

3" LIFT KIT PACKAGE

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-0C020iVXKA7#,VXKH7#,8#202111-202403

main48829-0C010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202403-202408

main48829-0C010iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202403

3" LIFT KIT PACKAGE

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48827-0C020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

main48827-0C020iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48828-0C020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

main48828-0C020iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

48829BBRACKET, STABILIZER, LH

main48829-0C010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

main48829-0C010iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

90105A0232

main90105-A0232

90105A0482

main90105-A0482¥360

90119A0579

main90119-A0579

90119A0584

main90119-A0584

90119A0617

main90119-A0617

90178A0058

main90178-A0058

90178A0118

main90178-A0118

9461211600

main94612-11600¥110

28 parts on this diagram · 1 diagram in section
