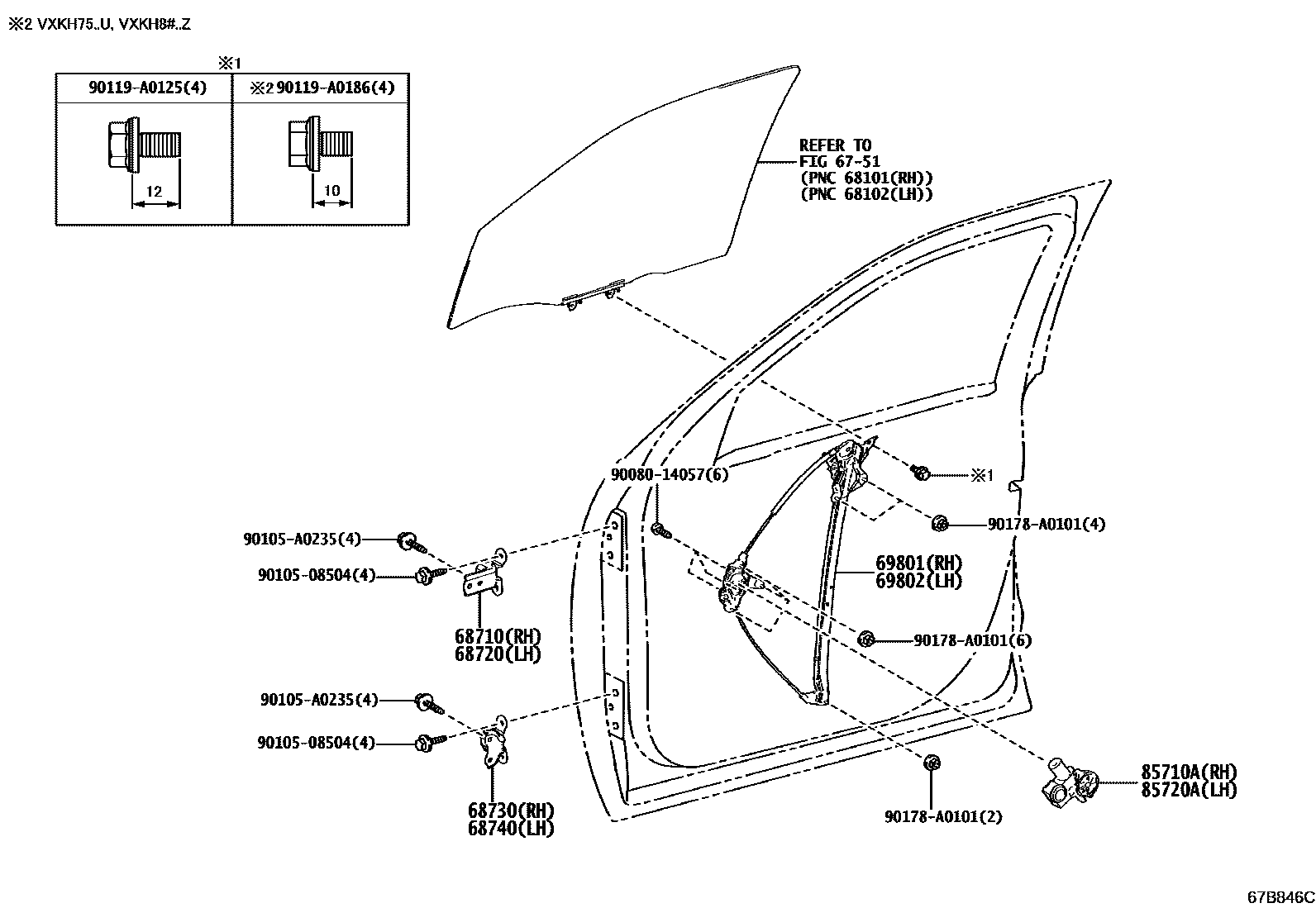

Toyota TUNDRA/SEQUOIA — FRONT DOOR WINDOW REGULATOR & HINGE

6751

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-0C020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-0C020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-0C010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-0C010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0C040iVXKA7#,VXKH7#,8#202111-202303

sub69801-0C041

main69801-0C041iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202304-202408

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0C040iVXKA7#,VXKH7#,8#202111-202303

sub69802-0C041

main69802-0C041iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202304-202408

85710AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH

main85710-0C170iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

85720AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH

main85720-0C070iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

9008014057

main90080-14057

9010508504

main90105-08504¥80

90105A0235

main90105-A0235

90119A0125

main90119-A0125

90119A0186

main90119-A0186

90178A0101

main90178-A0101

15 parts on this diagram · 1 diagram in section
