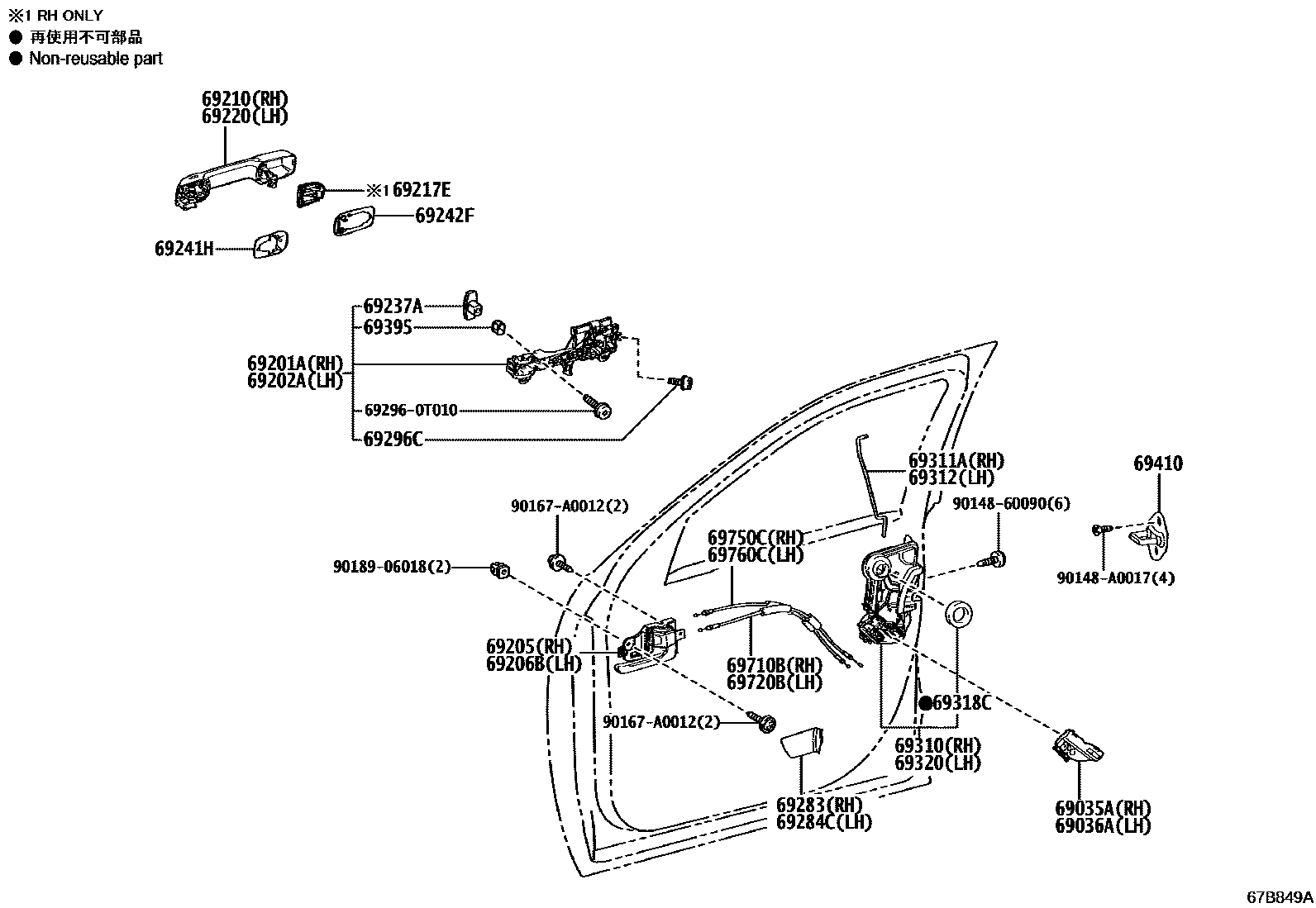

Toyota TUNDRA/SEQUOIA — FRONT DOOR LOCK & HANDLE

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-02030iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-02030iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-0C020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-0C020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-0C100iVXKH8#..S;VXKA7#,VXKH7#..L,S202111-202402

main69205-0C101iVXKA70,75..CMAX..(L,S);VXKA71,72,76,77,VXKH7#..L,S;VXKA70,75,VXKH8#..(DCB,SRF)..S202402-202408

main69205-0C110iVXKH8#..L,Z;VXKA70,71,75,76,VXKH7#..U,Z202111-202402

main69205-0C111iVXKA71,VXKH71,80..Z202402-202508

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-0C100iVXKH8#..S;VXKA7#,VXKH7#..L,S202111-202402

main69206-0C101iVXKA70,75..DCB..L202402-202408

main69206-0C110iVXKH8#..L,Z;VXKA70,71,75,76,VXKH7#..U,Z202111-202402

main69206-0C111iVXKA71,VXKH71,80..Z202402-202508

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-0C090iVXKA70,75,76,VXKH70,75,76..Z202111-202408

PLATED

main69210-0C090iVXKA70,75,76,VXKH70,75,76..Z202111-202408

PLATED,1794

main69210-0C110-A0iVXKA71,VXKH71,80..Z202111-202408

PLATINUM WHITE PEARL MC.,089

main69210-0C110-A1iVXKH8#..S202207

SR5-PREMIUM&TRD OFFROAD PACKAGE,SUPER WHITE 2,040

main69210-0C110-A1iVXKH8#..S202207

SX,SUPER WHITE 2,040

main69210-0C110-A1iVXKH8#..S202207

TRD OFFROAD PACKAGE,SUPER WHITE 2,040

main69210-0C110-A1iVXKH8#..S202207

TRD PRO PACKAGE,SUPER WHITE 2,040

main69210-0C110-A1iVXKA70,75,76,VXKH70,75,76..Z202207

SUPER WHITE 2,040

main69210-0C110-A1iVXKA70,75,76,VXKH70,75,76..Z202207-202408

SUPER WHITE 2,089

main69210-0C110-A1iVXKA70,75,76,VXKH70,75,76..Z202207

SR5-PREMIUM,SUPER WHITE 2,040

main69210-0C110-B0iVXKA71,VXKH71,80..Z202111-202408

GRAY ME.,1G3

main69210-0C110-B0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

SR5-PREMIUM,GRAY ME.,1G3

main69210-0C110-B0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

SR5-PREMIUM&TRD OFFROAD PACKAGE,GRAY ME.,1G3

main69210-0C110-B0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

SX,GRAY ME.,1G3

main69210-0C110-B0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

TRD OFFROAD PACKAGE,GRAY ME.,1G3

main69210-0C110-B1iVXKA75,76..S202111-202408

SILVER ME.,1J9

main69210-0C110-B1iVXKA75,76..S202111

SR5-PREMIUM,SILVER ME.,1J9

main69210-0C110-B1iVXKA75,76..S202111

SR5-PREMIUM&TRD OFFROAD PACKAGE,SILVER ME.,1J9

main69210-0C110-B1iVXKA75,76..S202111

SX,SILVER ME.,1J9

main69210-0C110-B1iVXKA75,76..S202111

TRD OFFROAD PACKAGE,SILVER ME.,1J9

main69210-0C110-C0iVXKA70,75..S202111-202408

ATTITUDE BLACK MC.,218

main69210-0C110-C0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

SR5-PREMIUM,ATTITUDE BLACK MC.,218

main69210-0C110-C0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

SR5-PREMIUM&TRD OFFROAD PACKAGE,ATTITUDE BLACK MC.,218

main69210-0C110-C0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

SX,ATTITUDE BLACK MC.,218

main69210-0C110-C0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

TRD OFFROAD PACKAGE,ATTITUDE BLACK MC.,218

main69210-0C110-D0iVXKA71,VXKH71,80..Z202111-202408

EMOTIONAL RED 2,3U5

main69210-0C110-D0iVXKA7#..S202111

SR5-PREMIUM&TRD OFFROAD PACKAGE,EMOTIONAL RED 2,3U5

main69210-0C110-D0iVXKA75,76..S202111

TRD OFFROAD PACKAGE,EMOTIONAL RED 2,3U5

main69210-0C110-D0iVXKA75,76..S202111

SX,EMOTIONAL RED 2,3U5

main69210-0C110-D0iVXKA7#..S202111

SR5-PREMIUM,EMOTIONAL RED 2,3U5

main69210-0C110-E0iVXKH75..Z;VXKH8#..S202207-202508

VINTAGE BROWN PEARL CS.,4X4

main69210-0C110-E0iVXKH75..Z;VXKH8#..S202207-202508

TRD PRO PACKAGE,VINTAGE BROWN PEARL CS.,4X4

main69210-0C110-E1iVXKA70,71,75,76..S202207-202409

SR5-PREMIUM&TRD SPORT PACKAGE,POP ORANGE CS.,4W5

main69210-0C110-E1iVXKA70,71,75,76..S202207-202409

SR5-PREMIUM,POP ORANGE CS.,4W5

main69210-0C110-E1iVXKA70,71,75,76..S202207-202409

POP ORANGE CS.,4W5

main69210-0C110-E1iVXKA70,75..S202207-202409

TRD SPORT PACKAGE,POP ORANGE CS.,4W5

main69210-0C110-E1iVXKA70,75..S202207-202409

TRD PRO PACKAGE,POP ORANGE CS.,4W5

main69210-0C110-E1iVXKA70,75..S202207-202409

TRD OFFROAD PACKAGE,POP ORANGE CS.,4W5

main69210-0C110-E1iVXKA70,75..S202207-202409

SX,POP ORANGE CS.,4W5

main69210-0C110-E1iVXKA70,75..S202207-202409

SR5-PREMIUM&TRD OFFROAD PACKAGE,POP ORANGE CS.,4W5

main69210-0C110-E2iVXKA70,75..S202308-202508

TRD OFFROAD PACKAGE,TERRA,4Z0

main69210-0C110-E2iVXKH80..S;VXKH85..S,Z;VXKA75,76,VXKH75,76..Z202308-202508

TERRA,4Z0

main69210-0C110-E2iVXKH80..S;VXKH85..S,Z;VXKA75,76,VXKH75,76..Z202308-202508

SR5-PREMIUM,TERRA,4Z0

main69210-0C110-E2iVXKH80..S;VXKH85..S,Z;VXKA75,76,VXKH75,76..Z202308-202508

SR5-PREMIUM&TRD OFFROAD PACKAGE,TERRA,4Z0

main69210-0C110-E2iVXKH80..S;VXKH85..S,Z;VXKA75,76,VXKH75,76..Z202308-202508

SX,TERRA,4Z0

main69210-0C110-E2iVXKH80..S;VXKH85..S,Z;VXKA75,76,VXKH75,76..Z202308-202508

TRD PRO PACKAGE,TERRA,4Z0

main69210-0C110-E2iVXKH80..S;VXKH85..S,Z;VXKA75,76,VXKH75,76..Z202308-202508

APPEARANCE PACKAGE,TERRA,4Z0

main69210-0C110-E3iVXKH85..S,Z;VXKA75,76,VXKH75,76..Z202409

SX,MUD BATH,4Z2

main69210-0C110-E3iVXKH85..S,Z;VXKA75,76,VXKH75,76..Z202409

TRD OFFROAD PACKAGE,MUD BATH,4Z2

main69210-0C110-E3iVXKH85..S,Z;VXKA75,76,VXKH75,76..Z202409

TRD PRO PACKAGE,MUD BATH,4Z2

main69210-0C110-E3iVXKH85..S,Z;VXKA75,76,VXKH75,76..Z202409

APPEARANCE PACKAGE,MUD BATH,4Z2

main69210-0C110-E3iVXKA75,76..S202409

MUD BATH,4Z2

main69210-0C110-E3iVXKA75,76..S202409

SR5-PREMIUM,MUD BATH,4Z2

main69210-0C110-E3iVXKA75,76..S202409

SR5-PREMIUM&TRD OFFROAD PACKAGE,MUD BATH,4Z2

main69210-0C110-G0iVXKA70,75..S202207-202308

SR5-PREMIUM&TRD OFFROAD PACKAGE,DK.GREEN,3U5 ,6V7

main69210-0C110-G0iVXKA70,75..S202207-202308

SR5-PREMIUM,DK.GREEN,3U5 ,6V7

main69210-0C110-G0iVXKA70,75..S202207-202308

DK.GREEN,6V7

main69210-0C110-G0iVXKA70,71,75,76..S202207-202308

TRD SPORT PACKAGE,DK.GREEN,3U5 ,6V7

main69210-0C110-G0iVXKA70,71,75,76..S202207-202308

TRD OFFROAD PACKAGE,DK.GREEN,3U5 ,6V7

main69210-0C110-G0iVXKA70,71,75,76..S202207-202308

SX,DK.GREEN,3U5 ,6V7

main69210-0C110-G0iVXKA70,71,75,76..S202207-202308

SR5-PREMIUM&TRD SPORT PACKAGE,DK.GREEN,3U5 ,6V7

main69210-0C110-G1iVXKH85..L202207

SR5-PREMIUM,URBAN KHAKI,6X3

main69210-0C110-G1iVXKA71,VXKH71,80..Z202207-202408

URBAN KHAKI,6X3

main69210-0C110-G1iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202207

SR5-PREMIUM&TRD OFFROAD PACKAGE,URBAN KHAKI,6X3

main69210-0C110-G1iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202207

SX,URBAN KHAKI,6X3

main69210-0C110-G1iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202207

TRD OFFROAD PACKAGE,URBAN KHAKI,6X3

main69210-0C110-G1iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202207

TRD PRO PACKAGE,URBAN KHAKI,6X3

main69210-0C110-J0iVXKA70,75..S202111-202408

DK. BLUE MC.,8X8

main69210-0C110-J0iVXKA75,76..S202111

SR5-PREMIUM,DK. BLUE MC.,8X8

main69210-0C110-J0iVXKA75,76..S202111

SR5-PREMIUM&TRD OFFROAD PACKAGE,DK. BLUE MC.,8X8

main69210-0C110-J0iVXKA75,76..S202111

SX,DK. BLUE MC.,8X8

main69210-0C110-J0iVXKA75,76..S202111

TRD OFFROAD PACKAGE,DK. BLUE MC.,8X8

main69210-0C130iVXKA7#..S202111

NO PAINT REQ.

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-0R160iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥520202111-202408

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-0C080iVXKA70,75,76,VXKH70,75,76..Z¥9,700202111-202408

PLATED,1794

main69210-0C080iVXKA70,71,75,76,VXKH7#,8#..(CMAX,SRF)..(L,U)¥9,700202111-202408

PLATED

main69210-0C100-A0iVXKA70,75,76,VXKH70,75,76,85..Z202111-202408

PLATINUM WHITE PEARL MC.,089

main69210-0C100-A1iVXKA75,76..S202207

SR5-PREMIUM,SUPER WHITE 2,040

main69210-0C100-A1iVXKH85..L202207

TRD PRO PACKAGE,SUPER WHITE 2,040

main69210-0C100-A1iVXKH85..L202207

TRD OFFROAD PACKAGE,SUPER WHITE 2,040

main69210-0C100-A1iVXKH85..L202207

SX,SUPER WHITE 2,040

main69210-0C100-A1iVXKH85..L202207

SR5-PREMIUM&TRD OFFROAD PACKAGE,SUPER WHITE 2,040

main69210-0C100-A1iVXKH85..L202207-202408

SUPER WHITE 2,089

main69210-0C100-A1iVXKH85..L202207

SUPER WHITE 2,040

main69210-0C100-B0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

SR5-PREMIUM&TRD OFFROAD PACKAGE,GRAY ME.,1G3

main69210-0C100-B0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

SR5-PREMIUM,GRAY ME.,1G3

main69210-0C100-B0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111-202408

GRAY ME.,1G3

main69210-0C100-B0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

TRD OFFROAD PACKAGE,GRAY ME.,1G3

main69210-0C100-B0iVXKA7#..S202111

SX,GRAY ME.,1G3

main69210-0C100-B1iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

SR5-PREMIUM,SILVER ME.,1J9

main69210-0C100-B1iVXKA75,76..S202111

TRD OFFROAD PACKAGE,SILVER ME.,1J9

main69210-0C100-B1iVXKA75,76..S202111

SX,SILVER ME.,1J9

main69210-0C100-B1iVXKA75,76..S202111

SR5-PREMIUM&TRD OFFROAD PACKAGE,SILVER ME.,1J9

main69210-0C100-B1iVXKA75,76..S202111-202408

SILVER ME.,1J9

main69210-0C100-C0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111-202408

ATTITUDE BLACK MC.,218

main69210-0C100-C0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

SR5-PREMIUM,ATTITUDE BLACK MC.,218

main69210-0C100-C0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

SR5-PREMIUM&TRD OFFROAD PACKAGE,ATTITUDE BLACK MC.,218

main69210-0C100-C0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

SX,ATTITUDE BLACK MC.,218

main69210-0C100-C0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

TRD OFFROAD PACKAGE,ATTITUDE BLACK MC.,218

main69210-0C100-D0iVXKA7#..S202111

SR5-PREMIUM&TRD OFFROAD PACKAGE,EMOTIONAL RED 2,3U5

main69210-0C100-D0iVXKA71,VXKH71,80..Z202111-202408

EMOTIONAL RED 2,3U5

main69210-0C100-D0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

SR5-PREMIUM,EMOTIONAL RED 2,3U5

main69210-0C100-D0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

SX,EMOTIONAL RED 2,3U5

main69210-0C100-D0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

TRD OFFROAD PACKAGE,EMOTIONAL RED 2,3U5

main69210-0C100-E0iVXKH85..L202207-202508

TRD PRO PACKAGE,VINTAGE BROWN PEARL CS.,4X4

main69210-0C100-E0iVXKH75..Z;VXKH8#..S202207-202508

VINTAGE BROWN PEARL CS.,4X4

main69210-0C100-E1iVXKA70,75..S202207-202409

SR5-PREMIUM&TRD OFFROAD PACKAGE,POP ORANGE CS.,4W5

main69210-0C100-E1iVXKH85..L202207-202409

SR5-PREMIUM,POP ORANGE CS.,4W5

main69210-0C100-E1iVXKH85..L202207-202409

POP ORANGE CS.,4W5

main69210-0C100-E1iVXKA70,71,75,76..S202207-202409

TRD SPORT PACKAGE,POP ORANGE CS.,4W5

main69210-0C100-E1iVXKH8#..S202207-202409

SR5-PREMIUM&TRD SPORT PACKAGE,POP ORANGE CS.,4W5

main69210-0C100-E1iVXKH8#..S202207-202409

SX,POP ORANGE CS.,4W5

main69210-0C100-E1iVXKH8#..S202207-202409

TRD OFFROAD PACKAGE,POP ORANGE CS.,4W5

main69210-0C100-E1iVXKH8#..S202207-202409

TRD PRO PACKAGE,POP ORANGE CS.,4W5

main69210-0C100-E2iVXKA75,76..S202308-202508

TRD PRO PACKAGE,TERRA,4Z0

main69210-0C100-E2iVXKA75,76..S202308-202508

TRD OFFROAD PACKAGE,TERRA,4Z0

main69210-0C100-E2iVXKA75,76..S202308-202508

SX,TERRA,4Z0

main69210-0C100-E2iVXKA75,76..S202308-202508

SR5-PREMIUM&TRD OFFROAD PACKAGE,TERRA,4Z0

main69210-0C100-E2iVXKA75,76..S202308-202508

SR5-PREMIUM,TERRA,4Z0

main69210-0C100-E2iVXKA75,76..S202308-202508

TERRA,4Z0

main69210-0C100-E2iVXKA70,71,75,76..S202308-202508

APPEARANCE PACKAGE,TERRA,4Z0

main69210-0C100-E3iVXKA75,76,VXKH75,76,85..(CMAX,SRF)..L202409

SR5-PREMIUM,MUD BATH,4Z2

main69210-0C100-E3iVXKH85..S,Z;VXKA75,76,VXKH75,76..Z202409

MUD BATH,4Z2

main69210-0C100-E3iVXKH85..S,Z;VXKA75,76,VXKH75,76..Z202409

SR5-PREMIUM&TRD OFFROAD PACKAGE,MUD BATH,4Z2

main69210-0C100-E3iVXKH85..S,Z;VXKA75,76,VXKH75,76..Z202409

SX,MUD BATH,4Z2

main69210-0C100-E3iVXKH85..S,Z;VXKA75,76,VXKH75,76..Z202409

TRD OFFROAD PACKAGE,MUD BATH,4Z2

main69210-0C100-E3iVXKH85..S,Z;VXKA75,76,VXKH75,76..Z202409

TRD PRO PACKAGE,MUD BATH,4Z2

main69210-0C100-E3iVXKH85..S,Z;VXKA75,76,VXKH75,76..Z202409

APPEARANCE PACKAGE,MUD BATH,4Z2

main69210-0C100-G0iVXKA70,75..S202207-202308

TRD SPORT PACKAGE,DK.GREEN,3U5 ,6V7

main69210-0C100-G0iVXKA70,75..S202207-202308

TRD OFFROAD PACKAGE,DK.GREEN,3U5 ,6V7

main69210-0C100-G0iVXKA70,75..S202207-202308

SX,DK.GREEN,3U5 ,6V7

main69210-0C100-G0iVXKA70,75..S202207-202308

SR5-PREMIUM&TRD SPORT PACKAGE,DK.GREEN,3U5 ,6V7

main69210-0C100-G0iVXKA70,75..S202207-202308

SR5-PREMIUM&TRD OFFROAD PACKAGE,DK.GREEN,3U5 ,6V7

main69210-0C100-G0iVXKA70,75..S202207-202308

SR5-PREMIUM,DK.GREEN,3U5 ,6V7

main69210-0C100-G0iVXKA70,75..S202207-202308

DK.GREEN,6V7

main69210-0C100-G1iVXKA70,75..S202207

SX,URBAN KHAKI,6X3

main69210-0C100-G1iVXKA70,75..S202207

TRD OFFROAD PACKAGE,URBAN KHAKI,6X3

main69210-0C100-G1iVXKA70,75..S202207

TRD PRO PACKAGE,URBAN KHAKI,6X3

main69210-0C100-G1iVXKA75,76..S202207-202408

URBAN KHAKI,6X3

main69210-0C100-G1iVXKA75,76..S202207

SR5-PREMIUM,URBAN KHAKI,6X3

main69210-0C100-G1iVXKA75,76..S202207

SR5-PREMIUM&TRD OFFROAD PACKAGE,URBAN KHAKI,6X3

main69210-0C100-J0iVXKA7#..S202111

SR5-PREMIUM,DK. BLUE MC.,8X8

main69210-0C100-J0iVXKA75,76..S202111

SR5-PREMIUM&TRD OFFROAD PACKAGE,DK. BLUE MC.,8X8

main69210-0C100-J0iVXKA75,76..S202111-202408

DK. BLUE MC.,8X8

main69210-0C100-J0iVXKA7#..S202111

TRD OFFROAD PACKAGE,DK. BLUE MC.,8X8

main69210-0C100-J0iVXKA7#..S202111

SX,DK. BLUE MC.,8X8

main69210-0C120iVXKA7#..S202111

NO PAINT REQ.

69237ANUT, FRONT DOOR HANDLE

main69237-62010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z¥160202111-202408

sub69237-0E010¥220

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-0C020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

69242FPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-0C020iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-0C030iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-0C020iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408

69296CSCREW, DOOR INSIDE HANDLE

main90084-14006iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408

69310LOCK ASSY, FRONT DOOR, RH

main69030-0C080iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-0C040iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-0C040iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-AA010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z¥120202111-202408

69320LOCK ASSY, FRONT DOOR, LH

main69040-0C070iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408

69395BUSH(FOR DOOR OUTSIDE HANDLE)

main69239-06040iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-0C040iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-0C060iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-0C060iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-0C060iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-0C060iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408

692960T010SCREW, DOOR INSIDE HANDLE

main69296-0T010

9014860090

main90148-60090¥60

90148A0017

main90148-A0017

90167A0012

main90167-A0012

9018906018

main90189-06018¥80

31 parts on this diagram · 1 diagram in section
