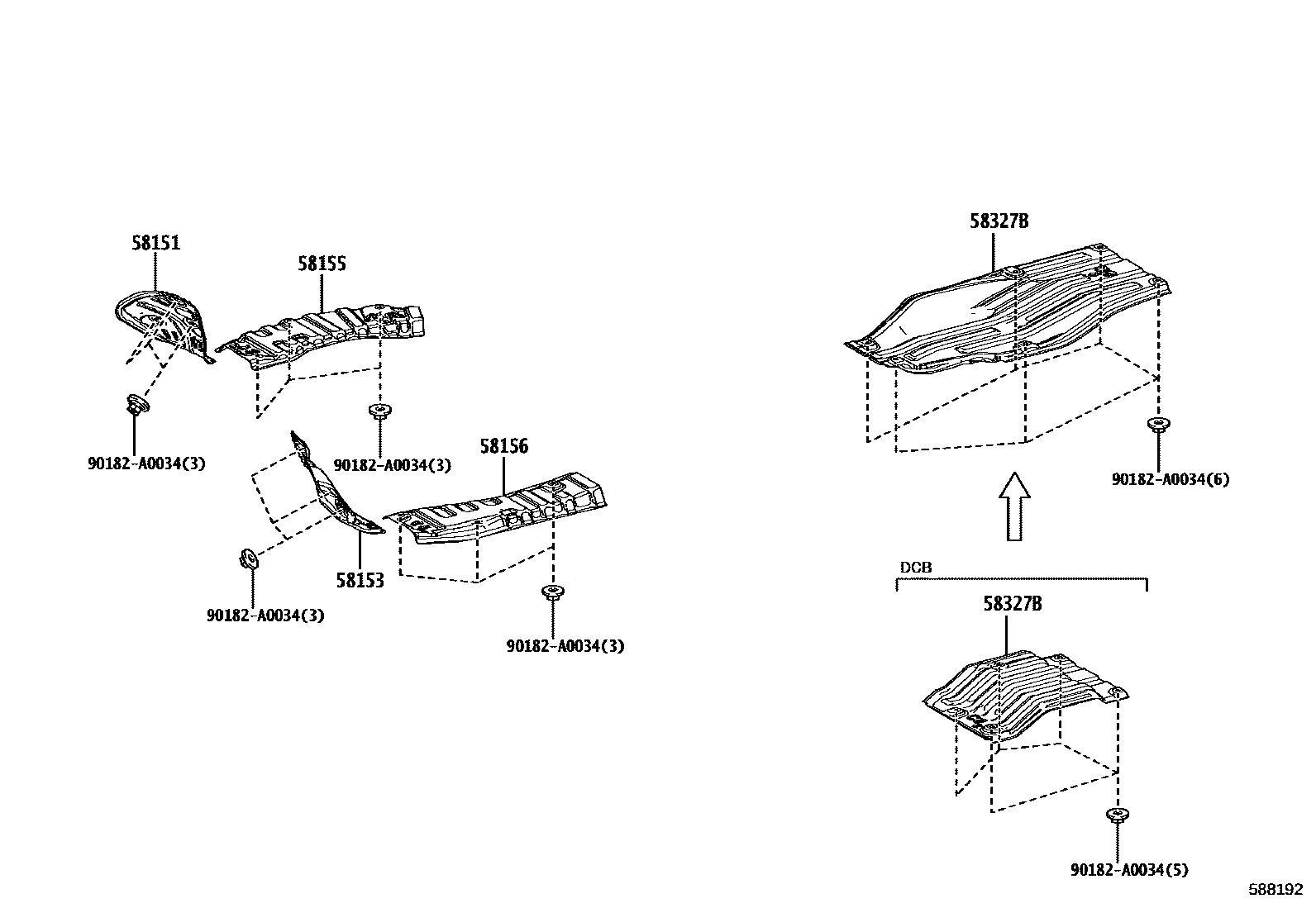

Toyota TUNDRA/SEQUOIA — FLOOR INSULATOR

0001 1 0002 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-0C050iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-0C060iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-0C030iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-0C020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-0C110iVXKA71,VXKH71..Z202111-202408

main58327-0C120iVXKA70,72,75,77..DCB..S202111-202408

main58327-0C130iVXKH85;VXKH80..L,S202207-202408

90182A0034

main90182-A0034

6 parts on this diagram · 2 diagrams in section
