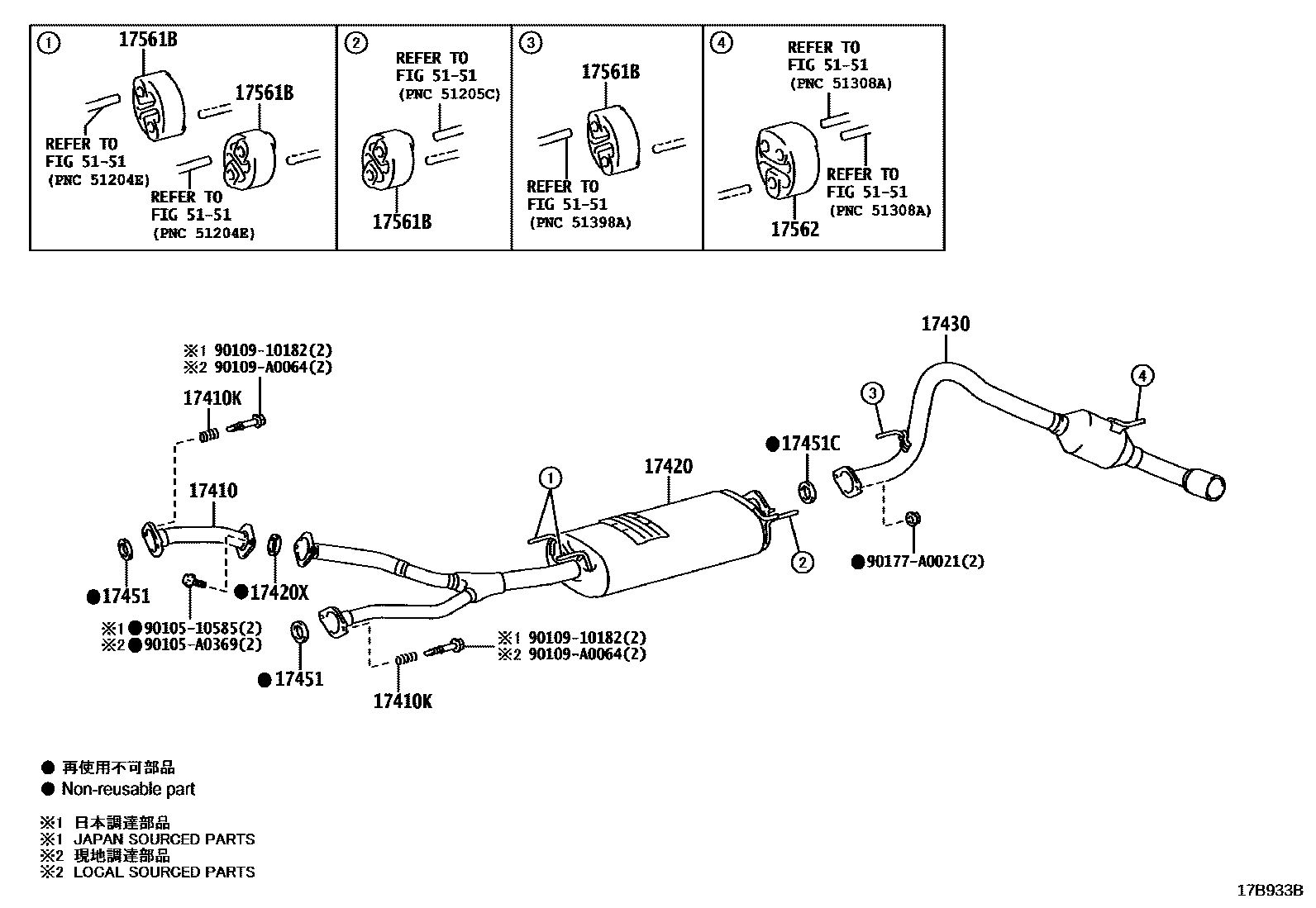

Toyota TUNDRA/SEQUOIA — EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-F4010iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408

17410KSPRING, EXHAUST PIPE

main90501-35037iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z¥200202111-202408

(J)

main90501-A0005iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

(L)

17420PIPE ASSY, EXHAUST, CENTER

main17420-F4010iV35AFTS..VXKA70,75..DCB..L202111-202408

main17420-F4020iV35AFTS..VXKA76,VXKH76;V35AFTS..VXKA71,VXKH71..L,S202111-202408

main17420-F4030iV35AFTS..VXKA72,77202111

main17420-F4040iV35AFTS..VXKH85;V35AFTS..VXKH80..L,S202207-202408

17420XGASKET, EXHAUST PIPE, CENTER

main90917-A6002iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z¥350202111-202408

17430PIPE ASSY, EXHAUST, TAIL

main17430-F4010iV35AFTS..VXKA7#202111-202202

SUB MUFFLER-TRD DUAL (ILA) BLACK

sub17430-F4011

main17430-F4010iV35AFTS..VXKA7#202111-202202

SUB MUFFLER-TRD DUAL (ILA) PLATED

sub17430-F4011

main17430-F4011iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76..CMAX202203

SUB MUFFLER-TRD DUAL (ILA) PLATED

main17430-F4011iV35AFTS..VXKA71,VXKH71..Z;V35AFTS..VXKA70,75..DCB..L202203-202408

main17430-F4011iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76..CMAX202203

SUB MUFFLER-TRD DUAL (ILA) BLACK

main17430-F4020iV35AFTS..VXKH85;V35AFTS..VXKH80..L,S202207-202408

17451GASKET, EXHAUST PIPE

main17451-0D140iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408

(L)

main17451-28040iV35AFTS..VXKA7#,VXKH7#,8#¥1,510202111-202311

(J)

sub17451-28041¥1,510

main17451-28041iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71,80..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥1,510202311-202408

(J)

17451CGASKET, EXHAUST PIPE, NO.3

main17451-F4010iV35AFTS..VXKA71,VXKH71..Z;V35AFTS..VXKA70,75..DCB..L¥410202111-202408

main17451-F4020iV35AFTS..VXKH80..Z202207-202408

17561BSUPPORT, EXHAUST PIPE, NO.1

main17566-F4010iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

17562SUPPORT, EXHAUST PIPE, NO.2

main17565-0S021iV35AFTS..VXKH85;V35AFTS..VXKH80..L,S¥900202111-202408

W/O MARK

main17565-31050iV35AFTS..VXKA71,VXKH71..Z;V35AFTS..VXKA70,75..DCB..L¥900202111-202408

MARK PURPLE

5151

9010510585

main90105-10585¥120

90105A0369

main90105-A0369

9010910182

main90109-10182¥190

90109A0064

main90109-A0064

90177A0021

main90177-A0021¥100

15 parts on this diagram · 4 diagrams in section
