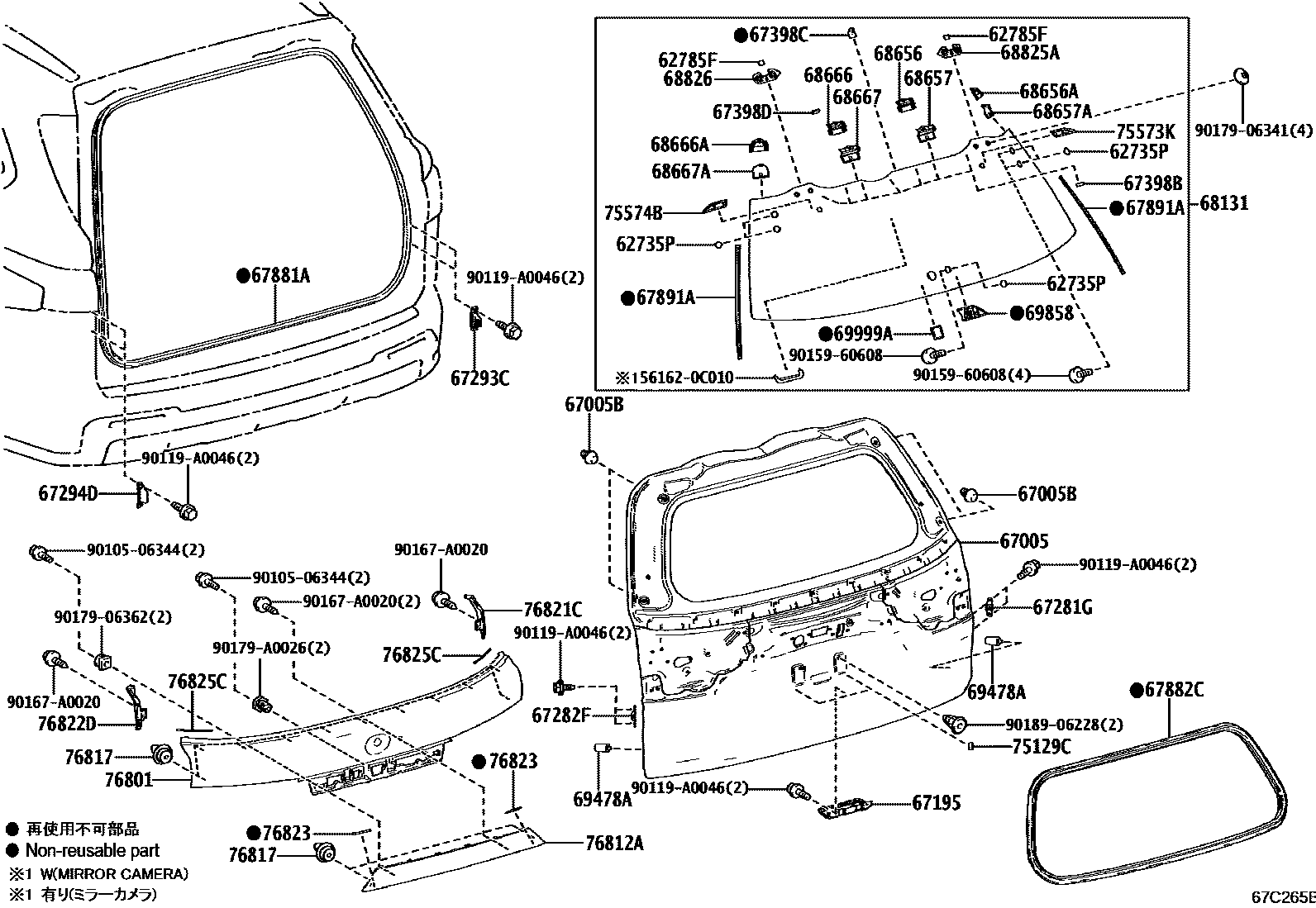

Toyota TUNDRA/SEQUOIA — BACK DOOR PANEL & GLASS
62735PRETAINER, BACK DOOR WINDOW HINGE
62785FSPACER, BACK DOOR GLASS
67005PANEL SUB-ASSY, BACK DOOR
67005BCUSHION(FOR BACK DOOR PANEL)
67195REINFORCEMENT, BACK DOOR STAY, LOWER RH
67281GSTOPPER, BACK DOOR, LOWER RH
67282FSTOPPER, BACK DOOR, LWR LH
67293CCUSHION, BACK DOOR STOPPER
67294DCUSHION, BACK DOOR STOPPER, LH
67398BGUIDE, BACK DOOR WIRE HARNESS, NO.1
67398CGUIDE, BACK DOOR WIRE HARNESS, NO.2
67398DGUIDE, BACK DOOR WIRE HARNESS, NO.3
67881AWEATHERSTRIP, BACK DOOR
67882CWEATHERSTRIP, BACK DOOR, NO.2
67891ASEAL, BACK DOOR
68131GLASS, BACK DOOR
68656BRACKET, BACK DOOR WINDOW FRAME, NO.1 RH
68656ABRACKET, BACK DOOR WINDOW FRAME, NO.2 RH
68657BRACKET, BACK DOOR WINDOW FRAME, NO.3 RH
68657ABRACKET, BACK DOOR WINDOW FRAME, NO.4 RH
68666BRACKET, BACK DOOR WINDOW FRAME, NO.1 LH
68666ABRACKET, BACK DOOR WINDOW FRAME, NO.2 LH
68667BRACKET, BACK DOOR WINDOW FRAME, NO.3 LH
68667ABRACKET, BACK DOOR WINDOW FRAME, NO.4 LH
68825APLATE, BACK DOOR HINGE, RH
68826PLATE, BACK DOOR HINGE, LH
69478ACUSHION, BACK DOOR LOWER STOPPER
69858BRACKET, BACK DOOR GLASS GUIDE
69999APIN, BACK DOOR GUIDE PIECE
75129CCUSHION, REAR LICENCE PLATE
75573KMOULDING, BACK WINDOW, OUTSIDE RH
75574BMOULDING, BACK WINDOW, OUTSIDE LH
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
PAINT REQ.
76812AGARNISH, BACK DOOR, OUTSIDE NO.2
TRD PRO PACKAGE&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR)
sub76812-AN020
sub76812-AN030
TRD PRO PACKAGE&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR)
APPEARANCE PACKAGE
1794
76817CLIP, BACK DOOR OUTSIDE GARNISH
76825CPROTECTOR, BACK DOOR OUTSIDE GARNISH
561620C010
main56162-0C010
9010506344
90119A0046
9015960608
90167A0020
main90167-A0020
9017906341
9017906362
90179A0026
main90179-A0026
9018906228
48 parts on this diagram · 2 diagrams in section
