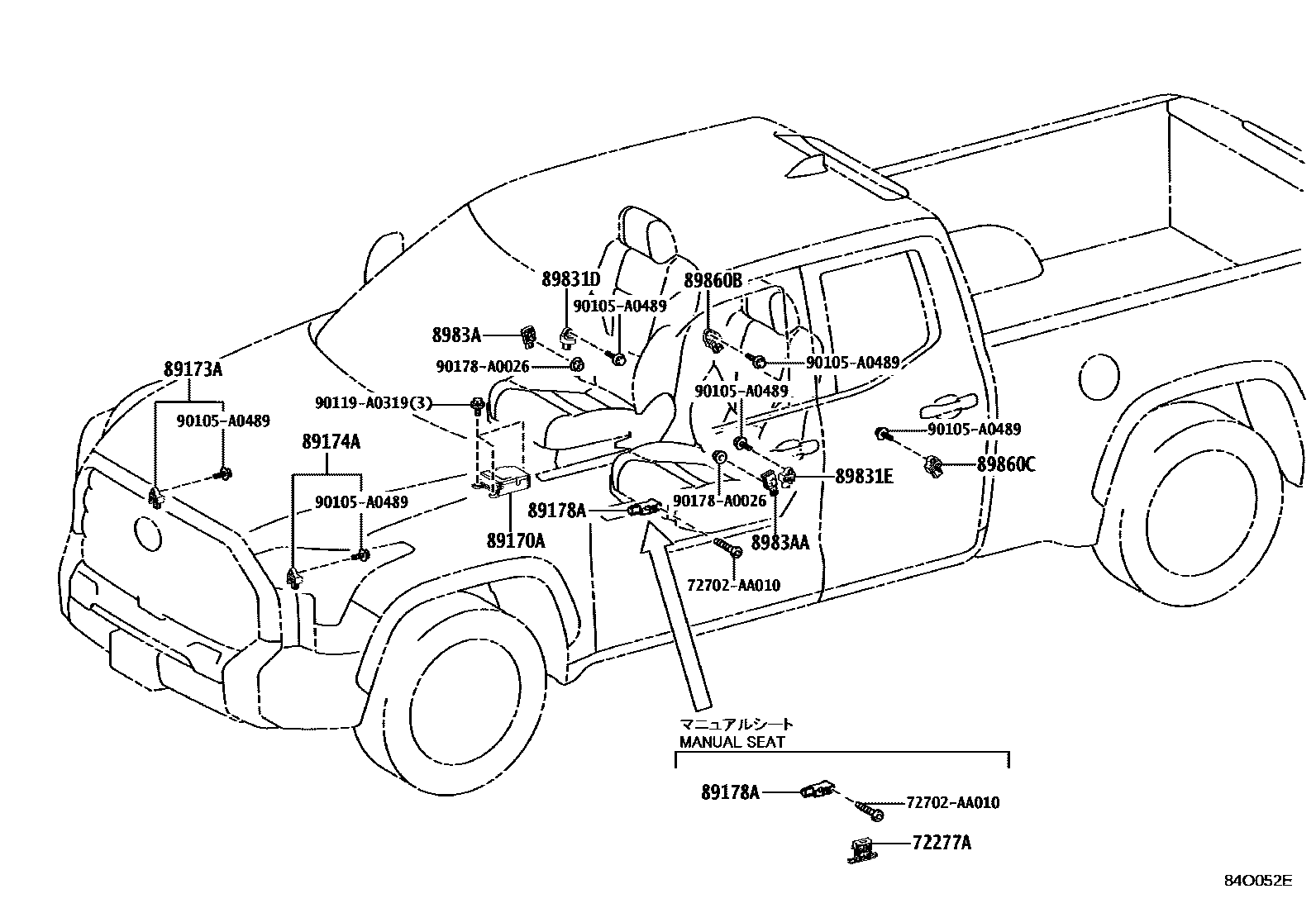

Toyota TUNDRA/SEQUOIA — AIR BAG

0001 1 0002 1 0003 1

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-06030iVXKA7#..S202111-202409

89170ACOMPUTER ASSY, AIRBAG

main89170-0C660iVXKA70,72,75,77..DCB202111-202305

*614

sub89170-0C661

main89170-0C661iVXKA70,72,75,77..DCB202306-202308

*614

main89170-0C662iVXKA70,72,75,77..DCB..S202308-202408

*614

main89170-0C670iVXKA70,71,75,76..CMAX202111-202305

*614

sub89170-0C671

main89170-0C671iVXKA70,71,75,76..CMAX202306-202308

*614

main89170-0C672iVXKA71..L,S;VXKA70,75,76..CMAX202308-202408

*614

main89170-0C690iVXKH7#202203-202305

*614

sub89170-0C691

main89170-0C691iVXKH7#202306-202308

*614

main89170-0C692iVXKH71..L;VXKH70,75,76202308-202408

*614

main89170-0C701iVXKH8#202207-202305

*614

sub89170-0C702

main89170-0C702iVXKH80..Z202306-202408

*614

89173ASENSOR, AIRBAG, FRONT RH

main89173-09E30iVXKA71,VXKH71..Z;VXKA70,75..DCB..L202308-202408

main89173-09E40iVXKA7#,VXKH7#202111-202408

89174ASENSOR, AIRBAG, FRONT LH

main89173-09E30iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71..L,S;VXKA70,75,76,VXKH70,75,76..CMAX202308-202408

main89173-09E40iVXKA7#,VXKH7#202111-202408

89178ASENSOR, SEAT POSITION AIRBAG

main89178-06030iVXKA70,75..DCB..L¥2,820202111-202409

89831DSENSOR, FLOOR SIDE AIRBAG, RH

main89831-06100iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71..L,S;VXKA70,75,76,VXKH70,75,76..CMAX202308-202408

main89831-08120iVXKH85;VXKH80..L,S202111-202408

89831ESENSOR, FLOOR SIDE AIRBAG, LH

main89831-06100iVXKA71,VXKH71..Z;VXKA70,75..DCB..L202308-202408

main89831-08120iVXKH80..Z202111-202408

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-0E021iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-0E021iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-06100iVXKA71,VXKH71..Z;VXKA70,75..DCB..L202308-202408

main89831-08120iVXKA7#,VXKH7#202111-202308

main89831-0C170iVXKH80..Z202207-202408

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-06100iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71..L,S;VXKA70,75,76,VXKH70,75,76..CMAX202308-202408

main89831-08120iVXKA7#,VXKH7#202111-202308

main89831-0C170iVXKH85;VXKH80..L,S202207-202408

72702AA010BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-AA010

90105A0489

main90105-A0489

90119A0319

main90119-A0319

90178A0026

main90178-A0026

15 parts on this diagram · 3 diagrams in section
