Toyota TOWNACE — WIRING & CLAMP

0001 1ENGINE 0002 1INSTRUMENT PANEL 0003 1INSTRUMENT PANEL 0004 1DOOR & ROOF 0005 1DOOR & ROOF 0006 1FLOOR 0007 1FLOOR 0008 1CONNECTOR

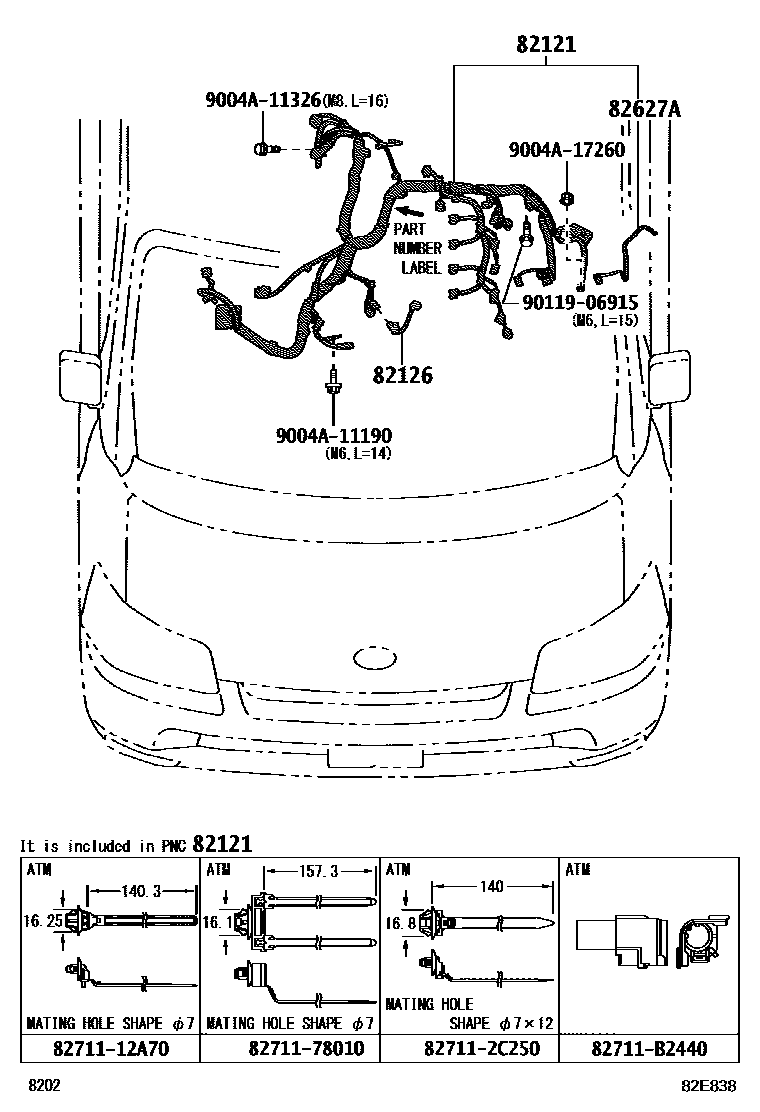

82121WIRE, ENGINE

main82121-BZK80iS403..5F¥40,600202201

main82121-BZL00iS403..4FC¥40,600202201

82126WIRE, ENGINE

main82126-BZ070iS403¥820202201

82627AWIRE, FUSIBLE LINK

main82627-BZ170iS403¥1,900202201

8271112A70WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12A70¥110

827112C250WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C250¥120

8271178010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-78010¥240

82711B2440WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-B2440¥280

9004A11190

main9004A-11190¥120

9004A11326

main9004A-11326

9004A17260

main9004A-17260¥120

9011906915

main90119-06915¥60

11 parts on this diagram · 8 diagrams in section
