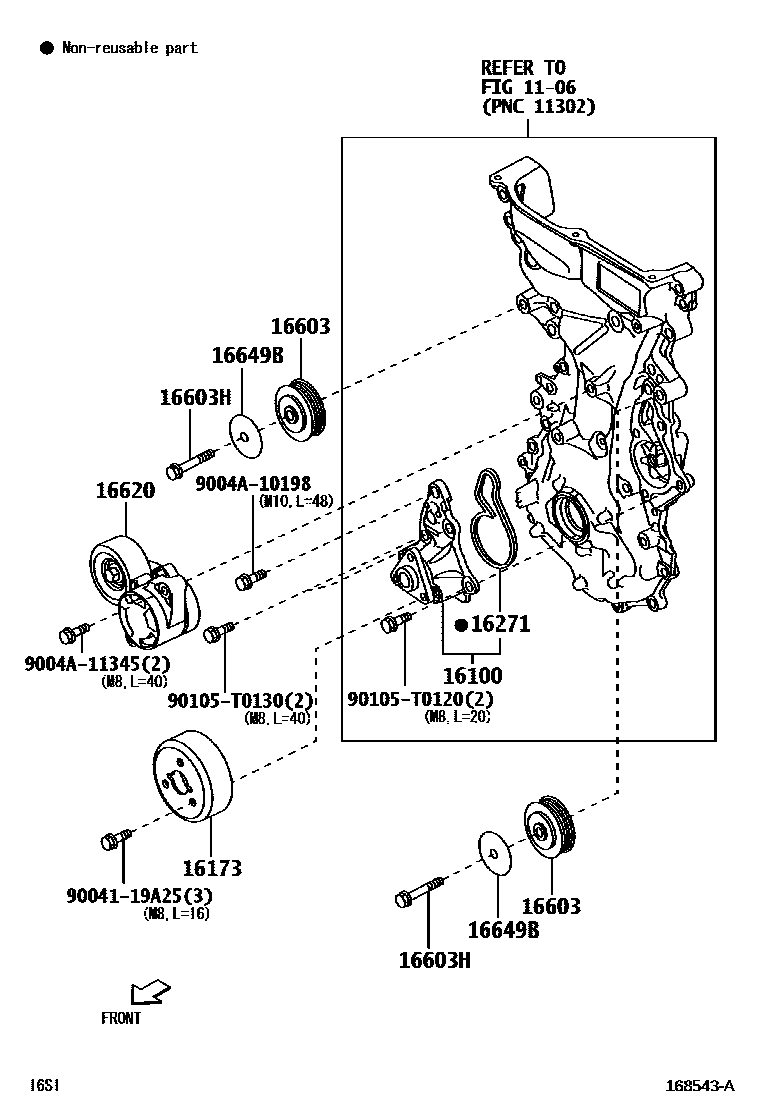

Toyota TOWNACE — WATER PUMP

1106

16100PUMP ASSY, ENGINE WATER

main16100-B9421i2NRVE..S403¥9,600202201

16173PULLEY, WATER PUMP

main16173-BZ080i2NRVE..S403¥3,870202201

16271GASKET, WATER PUMP

main16271-BZ060i2NRVE..S403¥360202201

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-B0030i2NRVE..S403¥4,020202201

16603HBOLT(FOR IDLER PULLEY)

main91552-E1050i2NRVE..S403¥220202201

M10,L=50

16620TENSIONER ASSY, V-RIBBED BELT

main16620-BZ010i2NRVE..S403¥24,000202201

16649BPLATE, IDLER PULLEY COVER

main16649-BZ050i2NRVE..S403¥390202201

9004119A25

main90041-19A25¥80

9004A10198

main9004A-10198¥120

9004A11345

main9004A-11345¥100

90105T0120

main90105-T0120

90105T0130

main90105-T0130

13 parts on this diagram · 1 diagram in section
