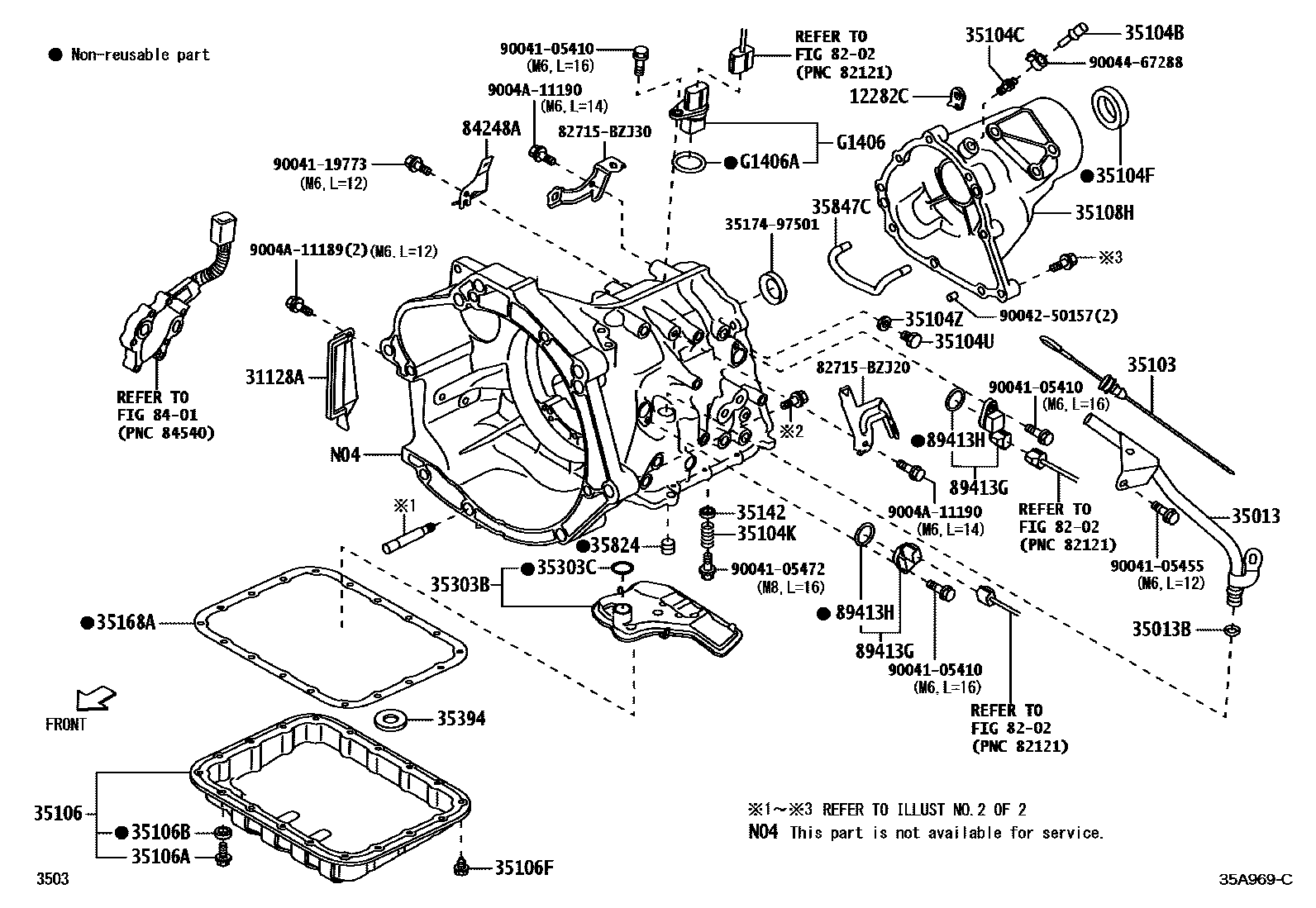

Toyota TOWNACE — TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1

12282CHANGER, ENGINE, NO.2

main12282-B1020i2NRVE..S403..4FC¥130202201

31128ACOVER, CLUTCH HOUSING UNDER(ATM)

main31123-BZ020iS403..4FC¥1,090202201

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-B5070iS403..4FC¥2,170202201

35013BRING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90043-01193iS403..4FC¥190202201

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-B5050iS403..4FC¥810202201

35104BPLUG, BREATHER, NO.1 (ATM)

main35120-B0020iS403..4FC¥330202201

35104CPLUG, BREATHER, NO.2 (ATM)

main90049-15054iS403..4FC¥530202201

35104FSEAL, OIL (FOR TRANSAXLE CASE)

main90043-11285iS403..4FC¥330202201

35104KCOMPRESSION SPRING, TRANSAXLE CASE

main90045-01951iS403..4FC¥160202201

35104UBOLT (FOR TRANSAXLE CASE)

main90041-05404iS403..4FC¥220202201

35104ZGASKET (FOR TRANSAXLE CASE)

main90044-30317iS403..4FC¥120202201

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35160-B1030iS403..4FC¥6,700202201

35106APLUG SUB-ASSY, DRAIN (ATM)

main90043-41041iS403..4FC¥170202201

35106BGASKET, DRAIN PLUG (ATM)

main90044-30281iS403..4FC¥170202201

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90041-20203iS403..4FC¥110202201

35108HHOUSING SUB-ASSY, EXTENSION

main35108-B5020iS403..4FC¥21,400202201

35142GASKET, TRANSMISSION CASE(ATM)

main90044-30330iS403..4FC¥110202201

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-B1060iS403..4FC¥1,330202201

35303BSTRAINER SUB-ASSY,OIL

main35303-B1010iS403..4FC¥4,280202201

35303CRING,O(FOR OIL STRAINER)

main90043-01364iS403..4FC¥110202201

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main33449-B2010iS403..4FC¥180202201

35824SEAL, BRAKE CYLINDER

main35824-97501iS403..4FC¥320202201

35847CTUBE, TRANSMISSION LUBE APPLY

main35847-B5010iS403..4FC¥510202201

8202

8401

84248ACLAMP, SWITCH HARNESS

main84248-B5060iS403..4FC¥1,060202201

89413GSENSOR, TRANSMISSION REVOLUTION

main89413-97202iS403..4FC¥3,650202201

89413HRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90043-01278iS403..4FC¥190202201

G1406CONNECTOR SUB-ASSY, TRANS SOLENOID

mainG1406B1010iS403..4FC202201

G1406ARING, O(FOR TRANS SOLENOID CONNECTOR)

main44618-B1010iS403..4FC¥220202201

3517497501SEPARATOR, TRANSAXLE HOUSING OIL

main35174-97501¥200

82715BZJ20BRACKET,WIRING HARNESS CLAMP

main82715-BZJ20¥600

82715BZJ30BRACKET,WIRING HARNESS CLAMP

main82715-BZJ30¥600

9004105410

main90041-05410¥110

9004105455

main90041-05455¥110

9004105472

main90041-05472¥150

9004119773

main90041-19773¥100

9004250157

main90042-50157¥260

9004467288

main90044-67288¥120

9004A11189

main9004A-11189¥160

9004A11190

main9004A-11190¥120

41 parts on this diagram · 2 diagrams in section
