Toyota TOWNACE — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1INSTRUMENT PANEL 0004 1SWITCH 0005 1SWITCH 0006 1DOOR 0007 1DOOR 0008 1SEAT & BODY 0009 1SEAT & BODY 0010 1STEERING

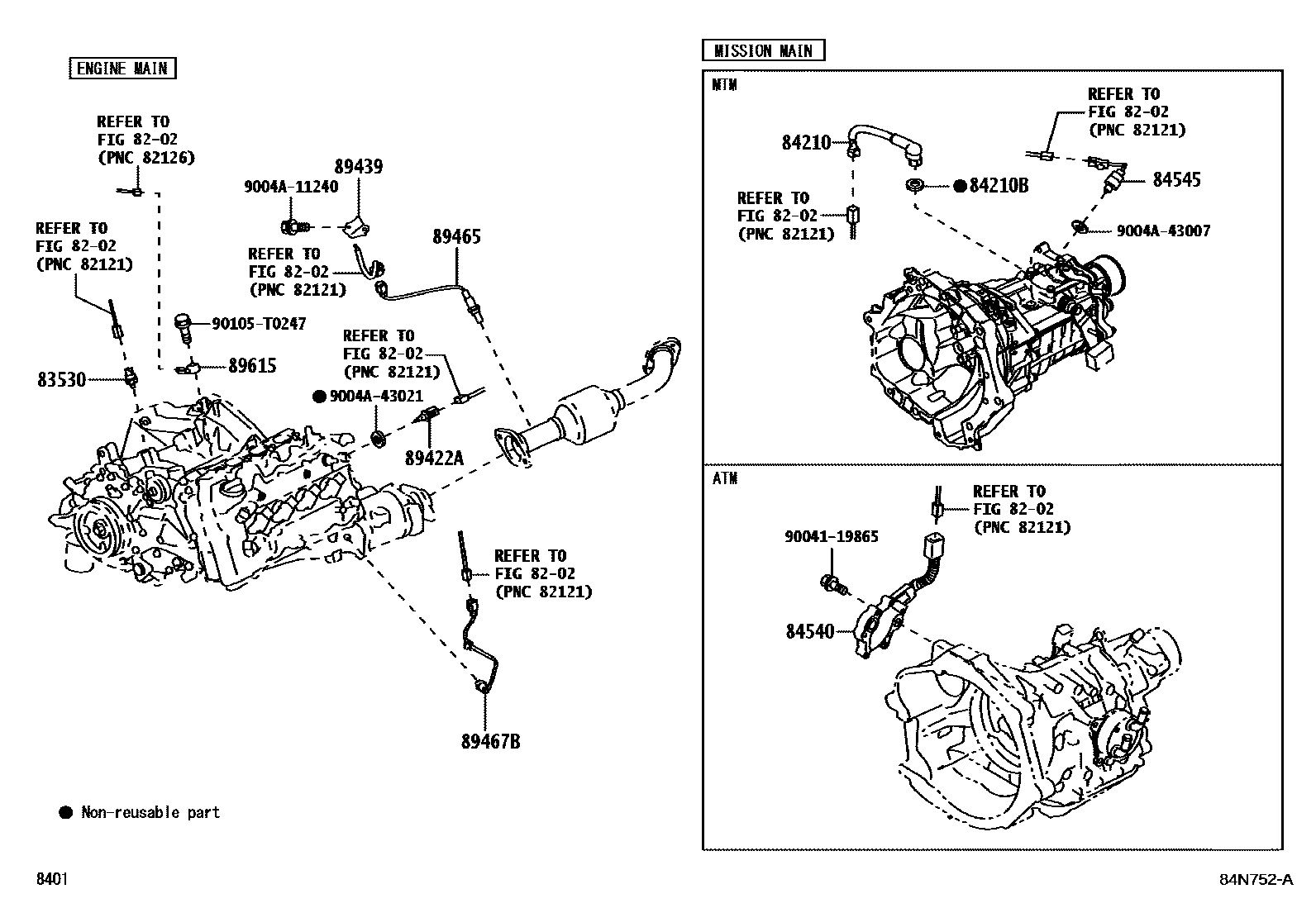

8202

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-52050iS403¥1,980202201

84210SWITCH ASSY, BACK-UP LAMP

main84210-BZ120iS403..5F¥2,000202201

84210BGASKET, BACK-UP LAMP SWITCH

main9004A-43007iS403..5F¥80202201

84540SWITCH ASSY, NEUTRAL START

main84540-B5020iS403..4FC¥13,600202201

84545SWITCH, NEUTRAL POSITION

main84540-B5011iS403..5F¥2,680202201

89422ASENSOR, WATER TEMPERATURE

main89422-BZ030iS403¥2,410202201

89439BRACKET, SENSOR

main8946A-BZ020iS403¥390202201

89465SENSOR, OXYGEN

main89465-BZ520iS403¥6,100202201

89467BSENSOR, AIR FUEL RATIO

main89467-BZ050iS403¥9,600202201

89615SENSOR, KNOCK CONTROL

main89615-BZ070iS403¥9,500202201

9004119865

main90041-19865¥80

9004A11240

main9004A-11240

9004A43007

main9004A-43007¥80

9004A43021

main9004A-43021¥200

90105T0247

main90105-T0247

16 parts on this diagram · 10 diagrams in section
