Toyota TOWNACE — REAR WASHER

8503

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-BZ010iS403..HRF¥8,000202212

85345RNOZZLE, REAR WASHER

main85391-BZ010iS403..HRF¥930202212

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-87201iS403..HRF¥170202212

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-87503iS403..HRF¥330202212

85349RJOINT, REAR WASHER HOSE, NO.5

main85349-87201iS403..HRF¥170202212

85355RVALVE, REAR WASHER HOSE

main85031-97201iS403..HRF¥620202212

85370DHOSE ASSY, REAR WASHER, NO.1

main85370-BZ301iS403..HRF¥1,020202212

85370EHOSE ASSY, REAR WASHER, NO.2

main85370-BZ830iS403..HRF¥900202212

85371NCLAMP, REAR WASHER HOSE

main82711-BZ100iS403..HRF¥60202212

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main85374-BZ030iS403..HRF¥120202212

L=50

85379BGROMMET, WASHER, A

main85373-BZ010iS403..HRF202212

5544587502GARNISH, INSTRUMENT PANEL OUTSIDE, RH

main55445-87502¥330

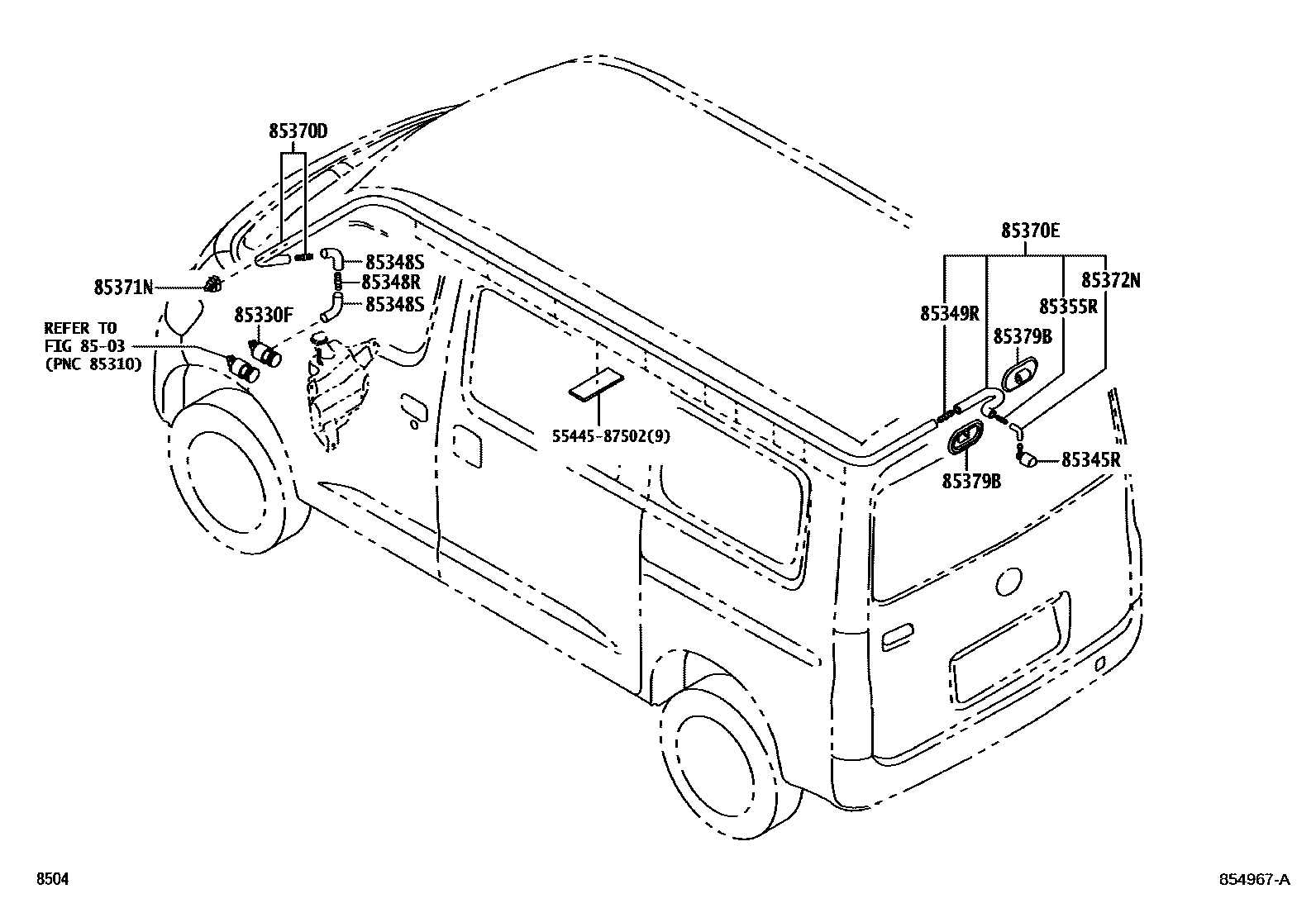

13 parts on this diagram · 1 diagram in section
