Toyota TOWNACE — INSIDE TRIM BOARD

0001 1 0002 1

5854

58558GFASTENER, PILE

main58558-87501-B2iS403202201

DK.GRAY,TRIM1#

sub58558-87501¥80

62111BCLIP(FOR COWL SIDE TRIM)

main90044-68234-B2iS403202201

DK.GRAY,TRIM1#

sub90044-68234¥140

62111CBOARD, COWL SIDE TRIM, RH

main62111-BZ350-B0iS403202201

DK.GRAY,TRIM1#

62112BOARD, COWL SIDE TRIM, LH

main62112-BZ330-B0iS403202201

DK.GRAY,TRIM1#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90044-68288iS403¥110202201

62211GARNISH, FRONT PILLAR, RH

main62211-BZ330-B0iS403202201

LT.GRAY,TRIM1#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-10161iS403¥90202201

62212GARNISH, FRONT PILLAR, LH

main62212-BZ330-B0iS403202201

LT.GRAY,TRIM1#

62313DTRIM, FRONT DOOR OPENING, RH

main62313-BZ150iS403¥1,520202201

62314DTRIM, FRONT DOOR OPENING, LH

main62313-BZ150iS403¥1,520202201

7552

9004A16036

main9004A-16036¥110

9004A48059

main9004A-48059

9004A53002

main9004A-53002¥110

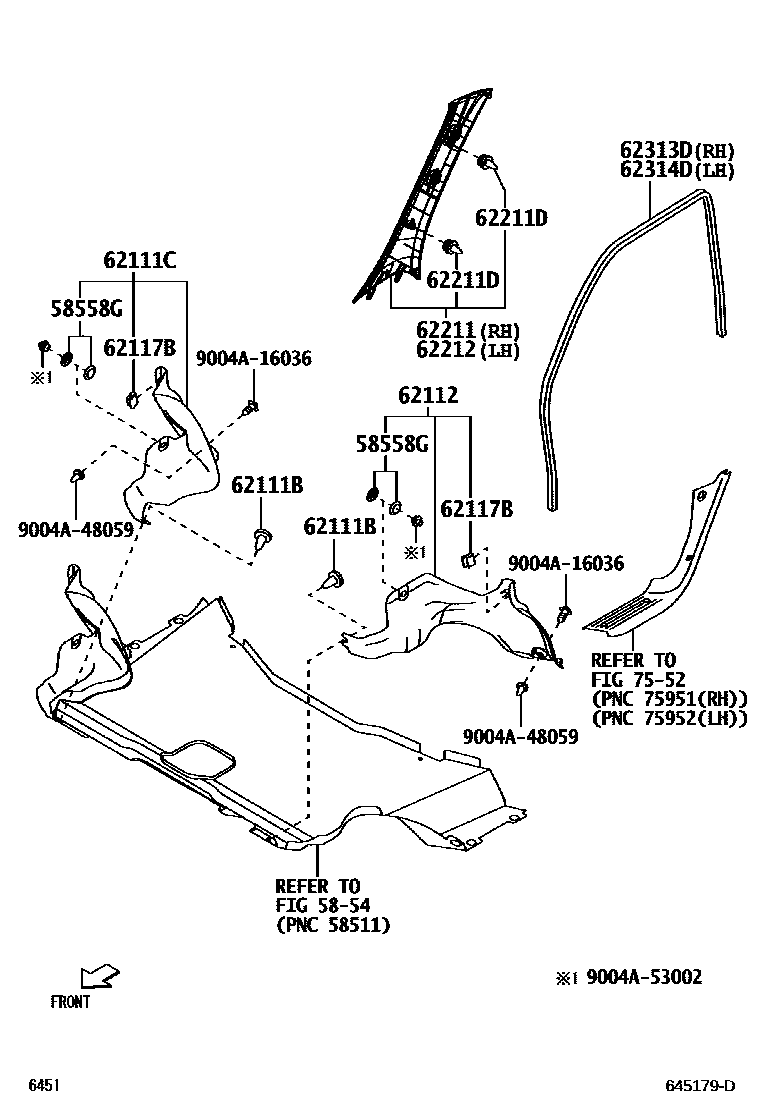

15 parts on this diagram · 2 diagrams in section
