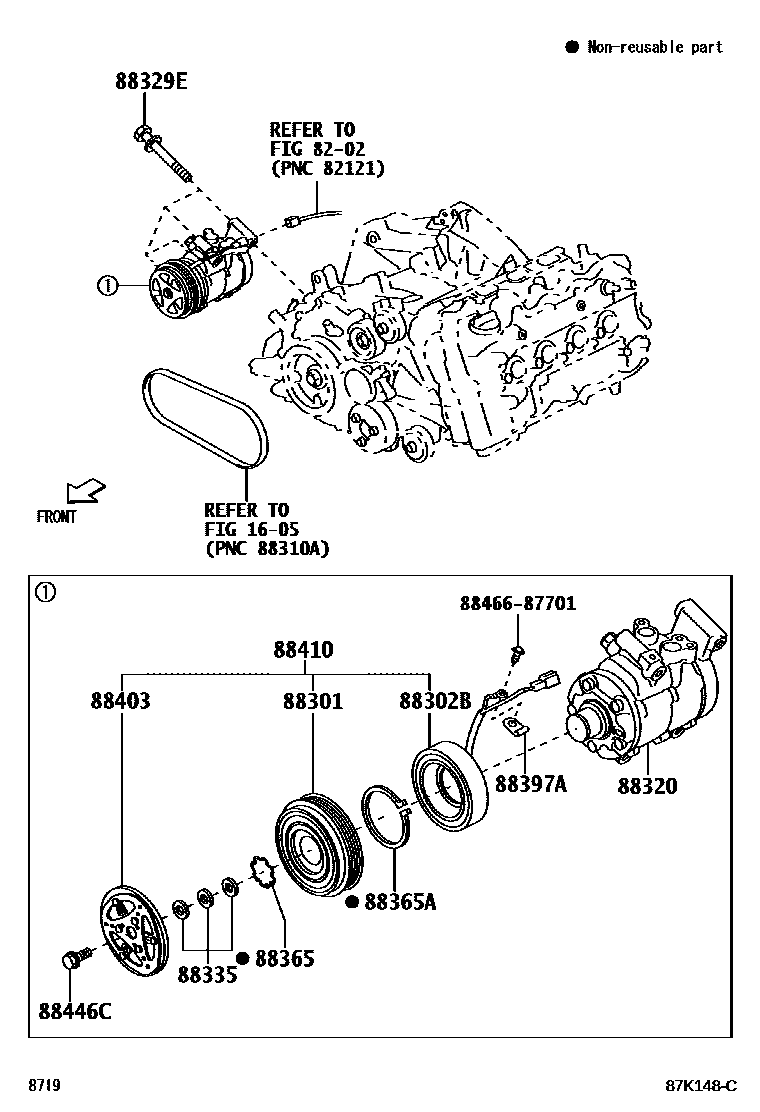

Toyota TOWNACE — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

1605

8202

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-BZ070iS403..HRF¥11,400202212

main88412-BZ160iS403..PIC¥11,400202201

88302BSTATOR, MAGNET CLUTCH

main88411-BZ240iS403..PIC¥4,790202201

main88411-BZ250iS403..HRF¥4,790202212

88320COMPRESSOR ASSY, COOLER

main88320-BZ120iS403..HRF¥68,600202212

main88320-BZ370iS403..PIC¥68,600202201

88329EBOLT, COMPRESSOR, NO.1

main88329-BZ050iS403202201

88335GASKET KIT, OVERHAUL

main88335-14020iS403202201

88365RING, SNAP

main90099-07065iS403..HRF¥90202212

main90099-07125iS403..PIC¥250202201

88365ARING, SNAP (FOR COMPRESSOR)

main90099-07114iS403202201

88397ACLIP, COMPRESSOR

main85369-87702iS403¥30202201

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-87301iS403..HRF202212

main88403-BZ080iS403..PIC202201

88410CLUTCH ASSY, MAGNET

main88410-BZ360iS403..PIC¥22,300202201

main88410-BZ370iS403..HRF¥22,300202212

88446CBOLT, MAGNET CLUTCH SETTING

main90099-04349iS403202201

8846687701

main88466-87701

14 parts on this diagram · 2 diagrams in section
