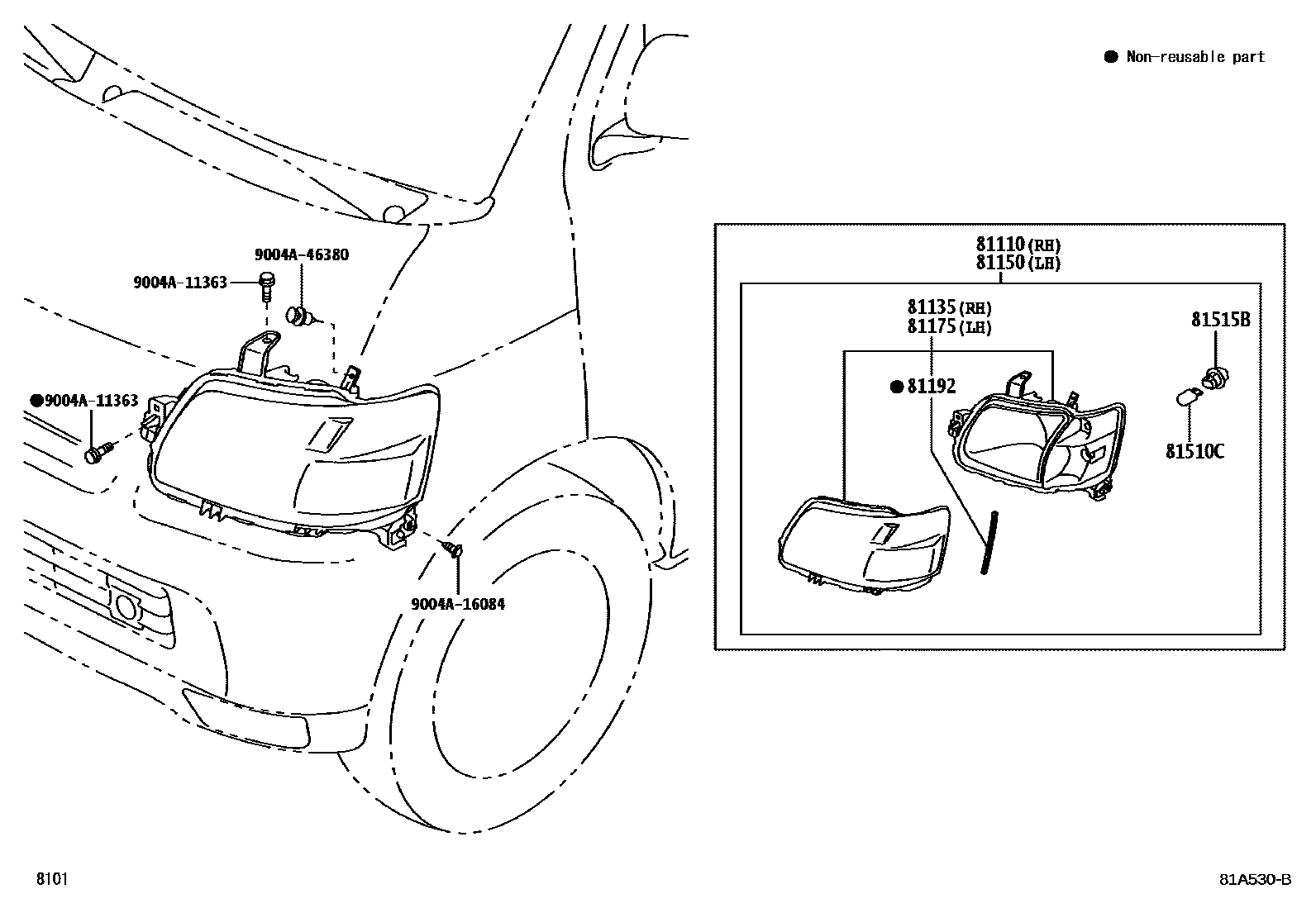

Toyota TOWNACE — HEADLAMP

81110HEADLAMP ASSY, RH

main81110-BZB10iS403202201-202209

sub81110-BZB11

main81110-BZB11iS403202210

81135UNIT ASSY, HEADLAMP, RH

main81105-BZ020iS403202201

81150HEADLAMP ASSY, LH

main81150-BZB10iS403202201-202209

sub81150-BZB11

main81150-BZB11iS403202210

81175UNIT ASSY, HEADLAMP, LH

main81106-BZ020iS403202201

81192SEAL, HEADLAMP

main81192-BZ030iS403202201

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main9004A-81051iS403202201

12V 21W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81945-B1010iS403¥580202201

9004A11363

main9004A-11363¥60

9004A16084

main9004A-16084

9004A46380

main9004A-46380

10 parts on this diagram · 1 diagram in section
