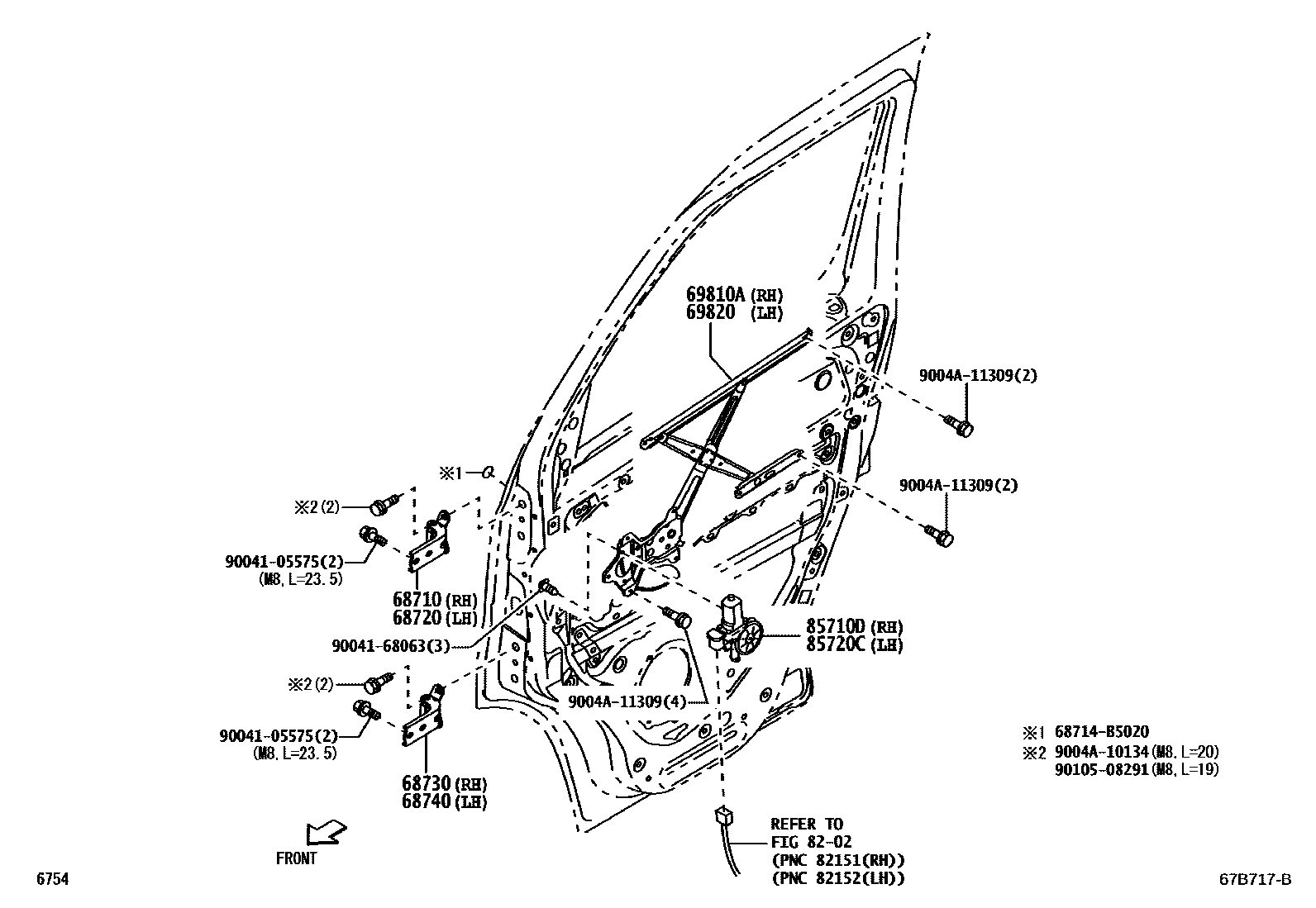

Toyota TOWNACE — FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68720-BZ051iS403¥1,730202201

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68710-BZ071iS403¥1,730202201

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68710-BZ071iS403¥1,730202201

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68720-BZ051iS403¥1,730202201

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69801-BZ090iS403¥5,300202201

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69802-BZ220iS403202201

8202

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-BZ041iS403¥17,100202201

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-BZ170iS403202201

68714B5020

main68714-B5020¥120

9004105575

main90041-05575¥170

9004168063

main90041-68063¥100

9004A10134

main9004A-10134

9004A11309

main9004A-11309

9010508291

main90105-08291¥90

15 parts on this diagram · 2 diagrams in section
