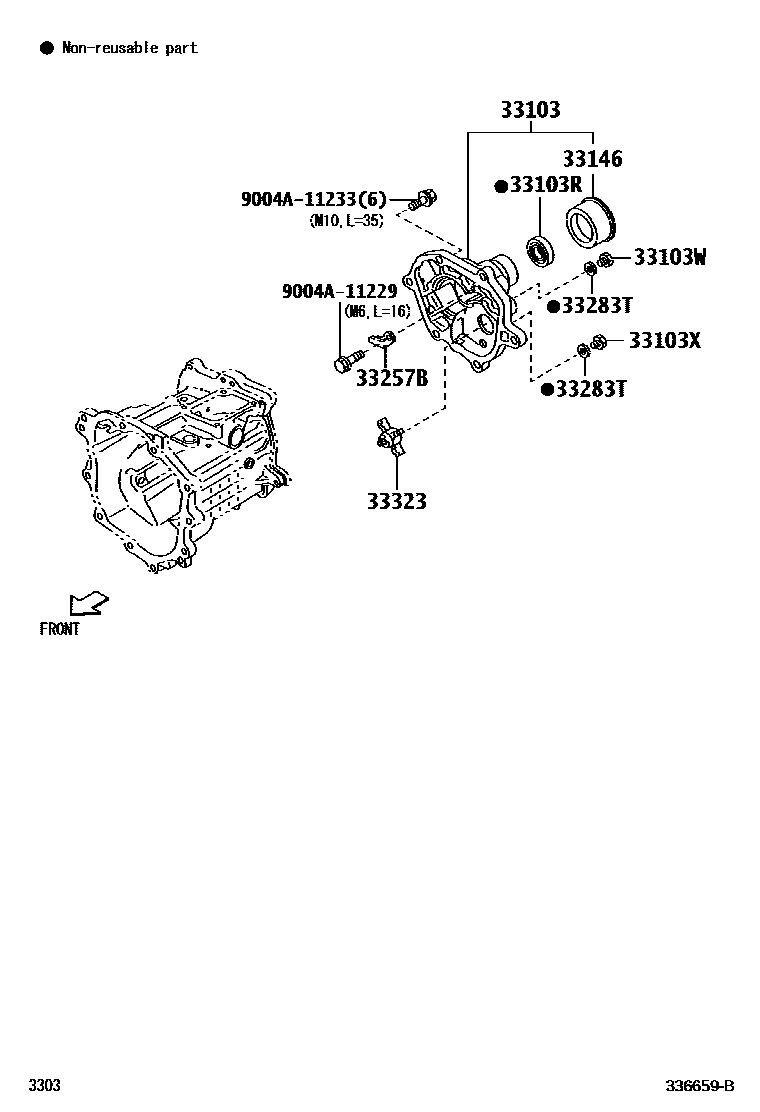

Toyota TOWNACE — EXTENSION HOUSING (MTM)

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-BZ050iS403..5F¥9,700202201

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main9004A-31014iS403..5F¥350202201

33103WPLUG(FOR MANUAL TRANSMISSION FILLER)

main9004A-34010iS403..5F202201

sub90341-16012¥210

33103XPLUG(FOR MANUAL TRANSMISSION DRAIN)

main9004A-34010iS403..5F202201

sub90341-16012¥210

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-BZ050iS403..5F¥860202201

33257BPLATE, GEAR OIL

main35345-BZ010iS403..5F¥380202201

sub35257-87501¥100

33283TGASKET (FOR HEAD STRAIGHT SCREW PLUG)

main9004A-43006iS403..5F¥110202201

33323SLINGER, OUTPUT SHAFT OIL

main33467-BZ020iS403..5F202201

9004A11229

main9004A-11229¥110

9004A11233

main9004A-11233

10 parts on this diagram · 1 diagram in section
